Place of Origin: | GuangDong, China |
Brand Name: | GUOMAT |
Certification: | ISO/TS16949:2009 |
Model Number: | 1B5171 |
Minimum Order Quantity: | 6PCS |
---|---|
Price: | $49.9-59.9/pc |
Packaging Details: | Strong Carton Box Or As Customers Need |
Delivery Time: | 2-8 work days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 1000pcs/week |
Product Name: | Air Suspension/Air Shock Absorber Spring | Warranty: | 12 Months |
---|---|---|---|
Function: | Reduce Shock | Shock Absorber Type: | Gas-Filled |
Packing: | Neutral Packing | Quality: | 100% Tested |
Plate Dia.: | 231mm | ||
High Light: | 1B5171 Air Spring Bags,Shock Absorber Air Spring Bags |
Air Spring Bags 1B5171 Universal Air Ride Suspension Fit For Shock Absorber Online
Product Describe
Industrial Air Spring
The industrial air spring widely used in paper-making machinery, vehicle detection equipment, mechanical gripper, shaking table ect. to effectively improve the working efficiency, safety and service life of the equipment. In these fields, the products plays an important role of damping, lifting, supporting, and so on. It helps customers to save manufacturing costs and win more economic profits.
1. The products features low cost, wide use and easy operation.
2. It achieves long service life, and requires no maintenance and lubrication.
3. This product allows for flexible expansion and contraction, strong loading capacity, convenient design, and simple structure.
4. It comes with no friction and soft medium.
Specification
Item | Univeral Air Spring 1B5171 |
Item Number | 1B5171 |
Place Of Origin | Guangzhou,China |
Material | Rubber+Steel |
Function | Reduce Shock |
Dimension | OEM/Original Size |
1B5171 Air Ride Suspension Fit Technical Data
Cover Plate | Top Cover Plate Diameter:231mm |
Bottom Cover Plate Diameter:231mm | |
Air Inlet | 1/4 NPTF |
Blind Nut | Screw Center Distance Of Top Cover Plate:157.5mm |
Screw Center Distance Of Bottom Cover Plate:157.5mm | |
Screw And Gas Hole Diameter Of Top Cover Plate:73mm | |
Screw Center Distance Of Top Cover Plate:78.8mm | |
Top Cover Plate Screw (Nut) Tooth:3X3/8-16UNC | |
Bottom Cover Plate Screw (Nut) Tooth:4X3/8-16UNC | |
Rubber Bellow | Rubber Bellow MAX Diameter:325mm |
The Working Stroke:MAX 160mm to MIN 55mm | |
Maximum Height:160mm | |
Minimum Height:55mm | |
Compression Height:105mm |
What are the advantages of our shock absorbers
Increase driving comfort
Effectively eliminate abnormal sound,noise in the driving process,jitter,make driving more comfortable
Lower fuel consumption and longer life
Reduce fuel consumption,prolong the life of car related chassis parts,reduce the cost of car maintenance
High stability
In the sharp turn,winding road,pothole road,automatic adjutment of the body constant height,to ensure comfort,maintain stability
Six Reasons to choose us
Warning and Tips
Maintenance of the air springs, Vehicle Check-List
Air Spring Installation
Important tips to remember when installing a new unit

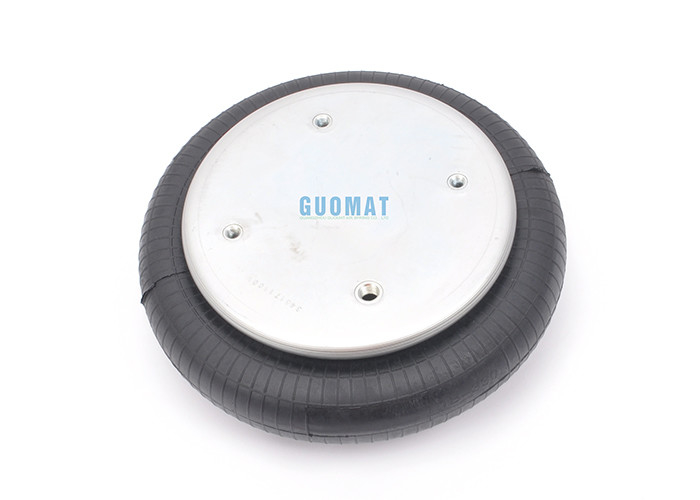

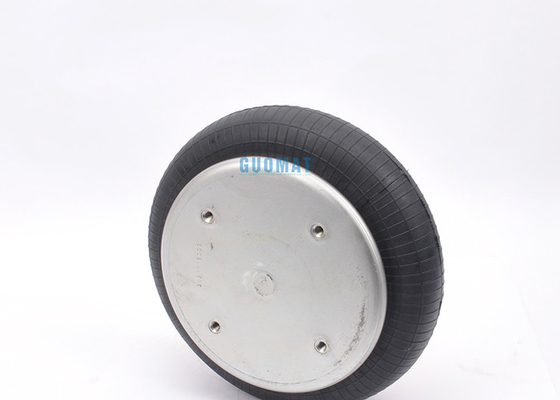

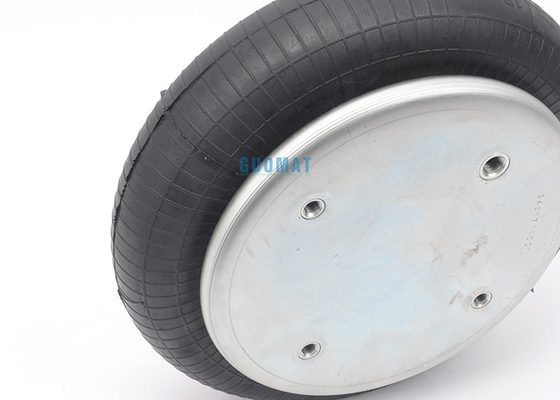

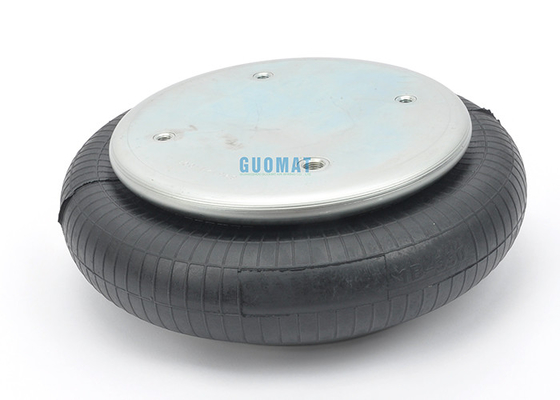

Product Picture
