| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B9-253 |
| Minimum Order Quantity: | 6PCS |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Spring Material: | Natural Rubber | Other Name: | Air Suspension Shock Absorber |
|---|---|---|---|
| Warranty: | 12 Months | Package: | Strong Carton |
| Quality: | 100% Tested | Air Inlet: | 1/4NPTF |
| The Working Stroke: | 235mm | Plate Diameter: | 160mm |
| High Light: | W01-358-6945/20-2 Industral Air Spring,Firestone Industral Air Spring |
||
Firestone W01-358-6945/20-2 Industral Air Spring Bellows Goodyear Air Help Suspension Spring
Product Information
2B9-253 Goodyear Air Spring Technical Data
| Cover Plate | Top Cover Plate Diameter:160mm |
| Bottom Cover Plate Diameter:160mm | |
| Air Inlet | 1/4 NPTF |
| Blind Nut | Bolt Center Distance Of Top Cover Plate:89mm |
| Threaded Hole Center Distance Of Bottom Cover Plate:89mm | |
| Bolt And Gas Hole Diameter Of Top Cover Plate:44mm | |
| Rubber Bellow | Rubber Bellow MAX Diameter:232.5mm |
| The Working Stroke:235mm |
Company Information
Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min’s drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.
Main Products:Air Spring,Convoluted Air Spring,Industrial Air Springs,Air Suspension Spring,Air Compressor,Air Valve,Bus Rubber Bellows,Truck & Trailer Air Bags,Cabin Air Shock,Electric Water Pump
GUOMAT Other Related Products
| Firestone | Contitech | Goodyear | Phoenix |
| W01-M58-6165 | FS 120-9 | ||
| W01-M58-6166 | FS 120-9 | ||
| SP 1 B 07 | |||
| W01-358-7731 | |||
| W01-M58-6374 | FS 200-10 | SP 1B 12 | |
| FS 70-7 | SP 1 B 05 | ||
| W01-358-7008 | FS 330-11 474 | 1B12-300/313 | |
| W01-358-7009 | FS 330-11 468 | 1B12-301/578913301 | |
| W01-358-6994/19 | FS 330-11 647 | ||
| FS 40-6 1/8 M8 | SP1B04 | ||
| W01-358-7564 | FS120-10 | 1B8-550 | |
| W01-358-6932 | FD 200-19 452 | 2B9-246 | |
| W01-358-6935 | FD 200-19 499 | 2B9-201 | |
| W01-358-6940 | FD 200-19 450 | 2B9-230 | |
| W01-358-6941 | FD 200-19 448 | 2B9-265/280 | |
| W01-358-6949 | FD200-19506 | ||
| W01-358-7788 | FD 200-19 510 | 2B9-245 |
Packing & Shipping
The goods can be shipped by Sea/Air/DHL/UPS/FEDEX/WMS or other methods.
Payment Terms:Paypal,bank'transfer,Western Union,T/T and L/C are avaiable.
There are different payment methods in different countries and regions.
(1)Your goods will be shipped to you in 2- 8 working days after payment received,the shipping model will be
DHL,TNT,FEDEX which is fast and safe,it takes about 5-10 days to arrive at most countries in the world.
(2)We hope it arrive on time but since this is an international delivery, it depends on the logistic company and local customers

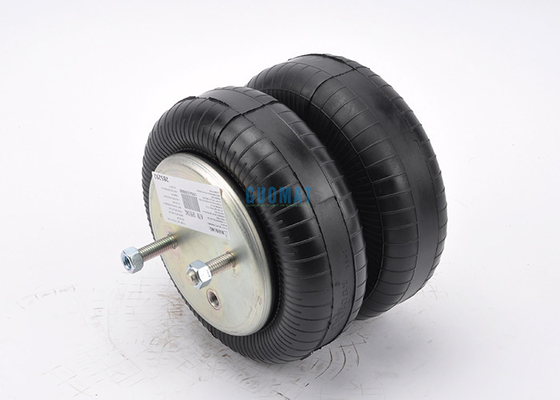

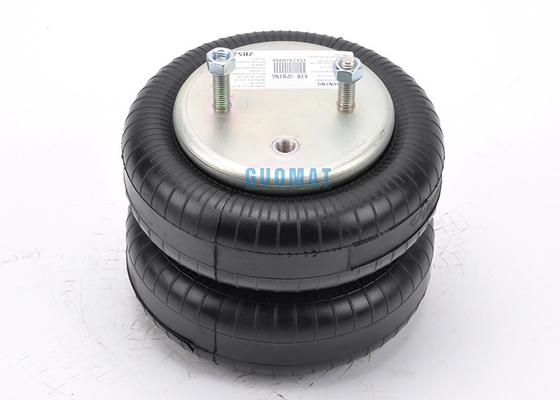

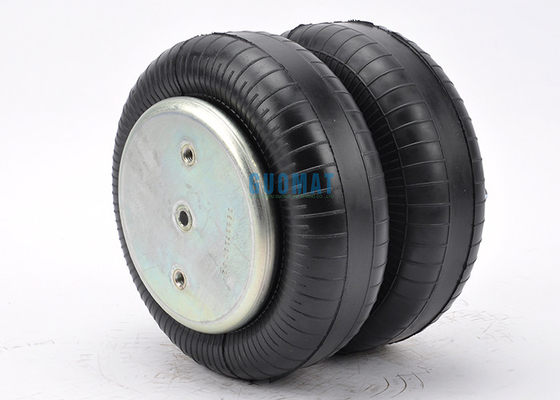

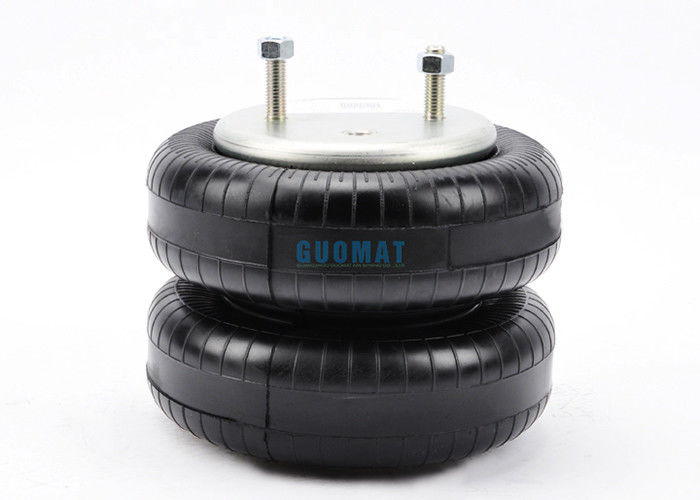

Product Image
