| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | W01-358-7424 |
| Minimum Order Quantity: | 6PCS |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Spring Material: | Natural Rubber | Warranty: | 12 Months |
|---|---|---|---|
| Package: | Strong Carton | Quality: | 100% Tested |
| Air Inlet: | 1/4NPT | The Working Stroke: | 80mm~105mm |
| Plate Diameter: | 231mm | Sample: | Available |
| High Light: | W01-358-7424 Air Suspension Spring,2B12-300 Air Suspension Spring,VOL-VO 3130504 Air Suspension Spring |
||

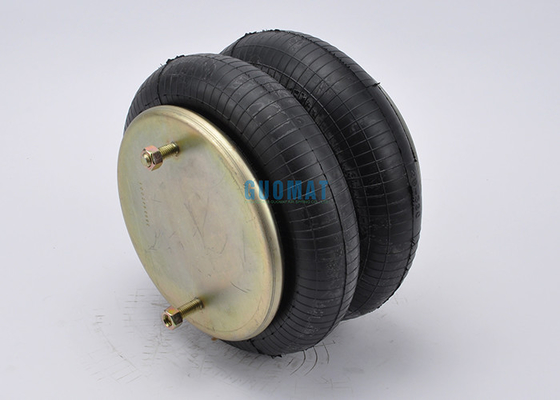

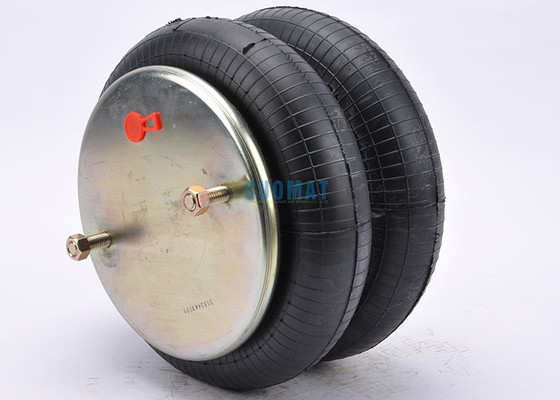

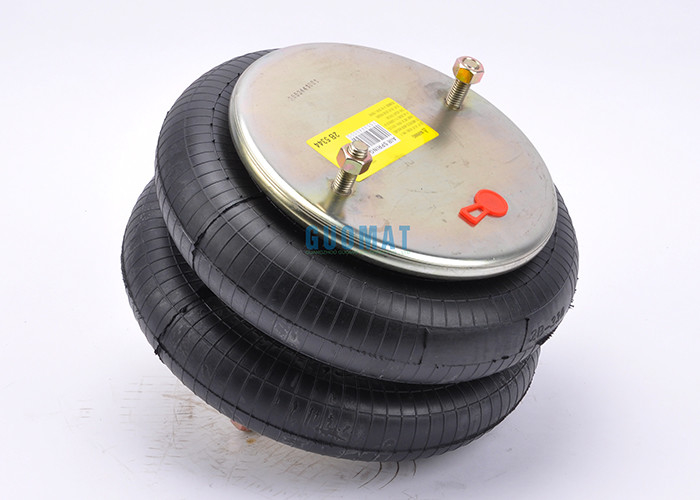

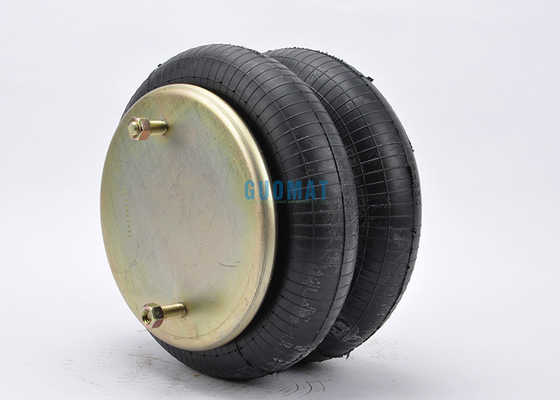

Air Bag W01-358-7424/Air Suspension Spring 2B12-300/Air Spring Air Balloons For VOL-VO
Product Information
2B12-300 Goodyear Air Spring Technical Data
Top Cover Plate Screw (Nut) Tooth :2x1/2-13UNC
Screw Center Distance of Top Cover Plate:157.5mm
Bottom Cover Plate Screw (Nut) Tooth : 2x1/2-13UNC
Screw Center Distance of Bottom Cover Plate : 157.5 mm
Gas Hole/Air Hole/Air Inlet/Air Fitting
Gas Hole/Air Hole/Air Inlet:1/4NPT
Center Distance Between Air Inlet And Nut:73MM
Cover Plate
Top Cover Plate Diameter:231mm/9.00 inches
Bottom Cover Plate Diameter:231mm/9.00 inches
Rubber Bellows
Rubber Bellows MAX. Diameter:325mm/12.9 inches
Rubber Bellows Natural Diameter :298 mm/11.7 inches
The Working Stroke:MAX305mm to MIN 81mm
Maximum Height:305mm/12 inches
Minimum Height:81mm/4.12 inches
Compression Height:224mm/8.8 inches
Company Information
Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min’s drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.
Main Products:Air Spring,Convoluted Air Spring,Industrial Air Springs,Air Suspension Spring,Air Compressor,Air Valve,Bus Rubber Bellows,Truck & Trailer Air Bags,Cabin Air Shock,Electric Water Pump.
GUOMAT Other Related Products
| Firestone | Contitech | Goodyear | Phoenix |
| W01-M58-6165 | FS 120-9 | ||
| W01-M58-6166 | FS 120-9 | ||
| SP 1 B 07 | |||
| W01-358-7731 | |||
| W01-M58-6374 | FS 200-10 | SP 1B 12 | |
| FS 70-7 | SP 1 B 05 | ||
| W01-358-7008 | FS 330-11 474 | 1B12-300/313 | |
| W01-358-7009 | FS 330-11 468 | 1B12-301/578913301 | |
| W01-358-6994/19 | FS 330-11 647 | ||
| FS 40-6 1/8 M8 | SP1B04 | ||
| W01-358-7564 | FS120-10 | 1B8-550 | |
| W01-358-6932 | FD 200-19 452 | 2B9-246 | |
| W01-358-6935 | FD 200-19 499 | 2B9-201 | |
| W01-358-6940 | FD 200-19 450 | 2B9-230 | |
| W01-358-6941 | FD 200-19 448 | 2B9-265/280 | |
| W01-358-6949 | FD200-19506 | ||
| W01-358-7788 | FD 200-19 510 | 2B9-245 |
