| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | W01-358-7545 |
| Minimum Order Quantity: | 6PCS |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Product Name: | Firestone Air Suspension Spring | Material: | Made Of High Quality Rubber And Steel |
|---|---|---|---|
| Air Spring Type: | Double | Warranty: | 1 Year |
| Application: | Hendrickson Aux. 001796 (Paralift Ultra/High Lift) -lift Bag | Package: | Strong Carton |
| Air Inlet: | 1/4NPTF | Plate Diameter: | 224.5mm |
| High Light: | Firestone Air Lift Bags,W01-358-7545 Air Lift Bags,FD331-26514 Industrial Air Spring |
||
Firestone Air Lift Bags W01-358-7545 Air Suspension Parts Contitech FD331-26514
Product Introduction
| Item | Value |
| OEM.NO. | W01-358-7545 |
| Name | Air Spring |
| Spring Type | Double |
| Warranty | 12 Months |
| Color | Black |
| Place of Origin | Guangzhou,China |
| Certification | ISO/TS16949:2009 |
| Material | Rubber+Steel |
| Packing | Neutral Packing |
| MOQ | 1 Pcs |
| Quality | High-Quality |
| Position | Auto/Truck parts/Industrial equipment |
| Application | Hendrickson Aux. 001796 (Paralift Ultra/High Lift) -lift bag |
OEM Number
Firestone
W01-358-7545
Contitech
FD 331-26 514
Goodyear
2B12-345
Goodyear
578923315
Triangle
6375
Triangle
4514
Application
Hendrickson Aux.001796
(Paralift Ultra/High Lift)-Lift bag
Watson &Chalin
AS-0087-1F
Watson &Chalin
AS-0109
| Double Firestone Suspension Spring Technical Data | |
| Nut/Blind Nut | |
| Top Cover Plate Screw (Nut) Tooth | 1/2 -13 UNC |
| Top Cover Plate Screw(Nut) With Air Hole Tooth | 3/4-16UNF |
| Screw and Air Inlet Distance of Top Cover Plate | 157mm |
| Bottom Cover Plate Screw (Nut) Tooth | 2X3/8-16UNC |
| Screw Center Distance of Bottom Cover Plate | 157mm |
| Gas Hole / Air inlet / Air Fitting | |
| Gas Hole / Air inlet | 1/4NPTF |
| Cover Plate | |
| Top Cover Plate Diameter | 224.5mm |
| Bottom Cover Plate Diameter | 224.5mm |
| Rubber Bellow | |
| Rubber Bellows MAX Diameter | 343mm |
| The Working Stroke | MAX 363mm to MIN 104 mm |
| Maximum Height | 363mm |
| Minimum Height | 104mm |
| Compression Height | 259mm |
About Air Spring
Air spring is a rubber and fabric bladder that holds air pressure to support a load and isolate passengers and cargo from the shock of motion caused by road irregularities.
As the air pressure increases, the air spring can support more load while the spring rate increases.The larger the air spring, the greater the maximum load it can support.
About Air Suspension
Air Suspension is a type of automotive suspension that uses air springs instead of conventional steel springs.Computer operated vents on the air springs, suspension sensors, and an onboard air compressor allow the system to maintain ride height and vary the suspension's ride characteristics.

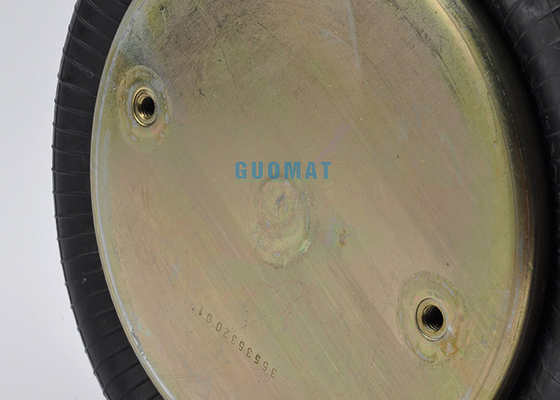

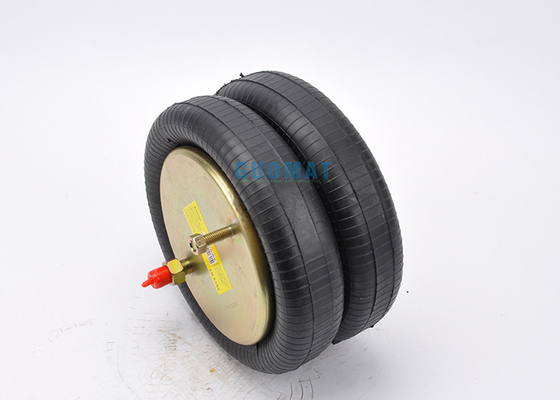

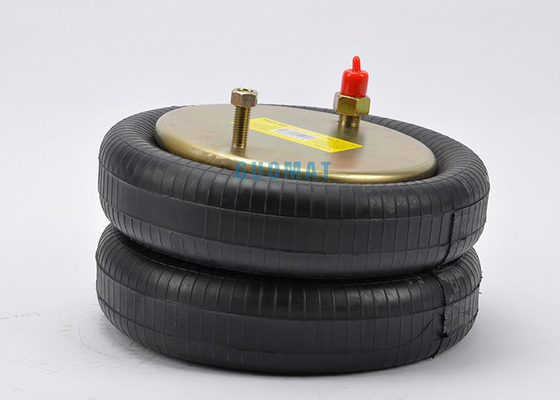

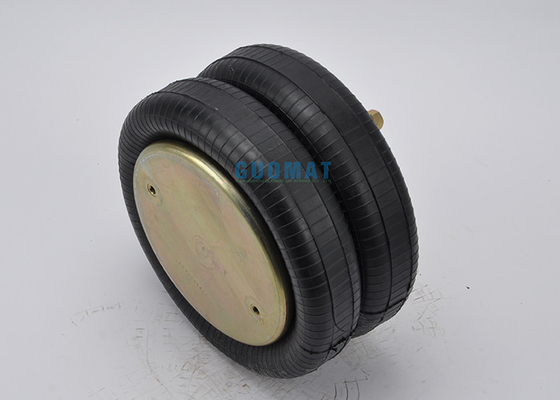

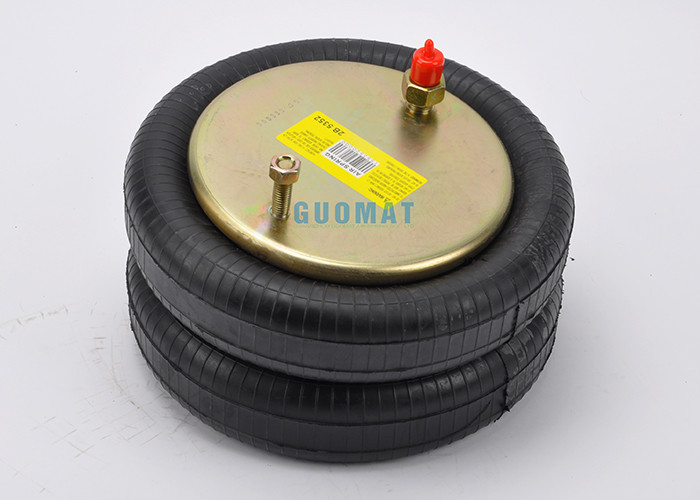

Product Image
FAQ
|
1. Are you a Manufacture factory? Yes, We are the direct manufacture factory, located in Guangzhou China, Which is specialized in air spring in China for over 12years experience from 2008 years. |
|
2. What is your main products? Our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. |
|
3. Is the sample available? Yes, Usually we send the samples by TNT,DHL,FEDEX or UPS, it will take around 3 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. We will refund our customer the sample cost after receiving its order. |
|
4. What is your warranty term? Our company offer 1% free spare parts to FCL order.There is a 12months warranty for our export products has run out from the date of the shipment.If warranty ,our customer should pay for the replacement parts. |
|
5. Can i use my own logo and design on products? YES,OEM is welcomed. |
|
6. I can not find out the items what i want from your website, can you offer the products i need? YES.One of our service term is sourcing the products that our customers need,So please tell us the details information of the item. |
