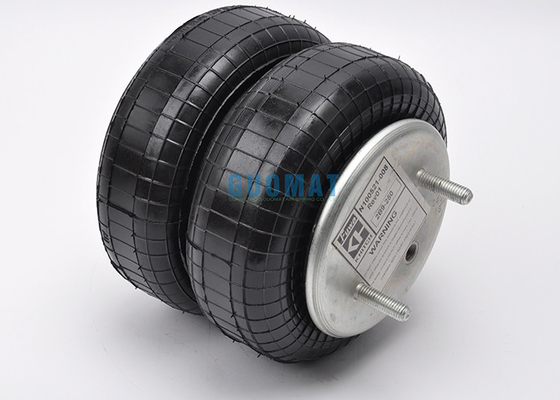

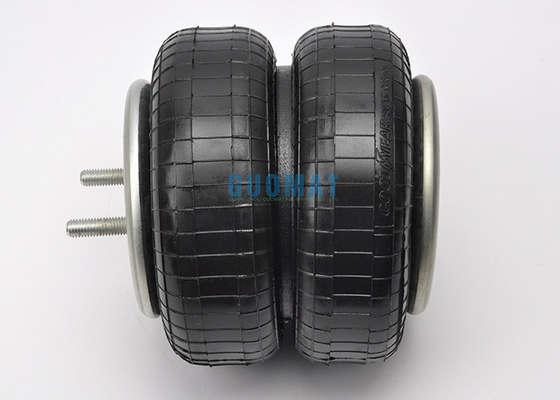

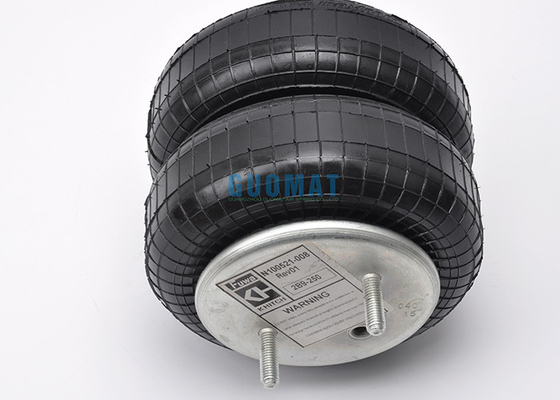

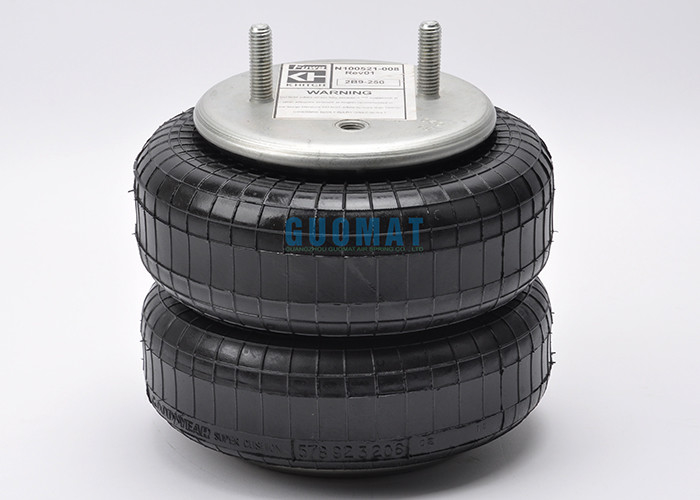

Double Convoluted Type Rubber Bellows Suspension Spring 2B9-250 Goodyear Airbag

Double Convoluted Type Rubber Bellows Suspension Spring 2B9-250 Goodyear Airbag/Air Spring

Detailed Description For Goodyear 2B9-250 Air Spring

GUOMAT Part Number : 6943

Brand: Goodyear

Bellows NO.:578-92-3-206

Warranty:12 Months

Material:Rubber and Steel

Color:Black

Payment:LC/TT/Western Union

Package:Strong Brown Carton

Delivery Time:About 2-8 working days after receive your payment

Shipping method:By sea,by air,by express(DHL/UPS/EMS/Fedex)

Manufacturer Number

Technical Data Goodyear 2B9-250 Air Suspension Spring

Side View With Extended And Compressed Height	Upper Mounting View	Lower Mounting View
Working Stroke:12.2inches~3.5 inches(309.88mm-88.9mm)	Top Cover Plate Diameter:6.40 inches(162.56mm)	Bottom Cover Plate Diameter:6.40 inches(162.56mm)
The Maximum Height:12.2  inches  (309.88mm)	Center Distance Between Studs On Top Cover Plate :3.50 inches(88.9mm)	Distance Between Threaded Holes At The Bottom Cover Plate:3.5 inches(88.9mm)
The Minimum Height:3.5 inches (88.9mm)	Center Distance Of Stud And Air Hole On Top:1.75 inches (44.45mm)
Compressed Height:8.7inches (220.98)

Precautions for Safe Use of Goodyear Air Springs

Air springs have a long history of use, and the manufacturing process of air springs is also very cumbersome. Therefore, during the temporary use process, we must protect them well. Even if the air springs are not easily damaged, accidents should still be avoided.

1. Avoid sharp sharp weapons, as long as they are mutually mortgaged with strength, there will be ruptures. If ruptures occur and are not found in time, they will be installed in the wheel, which may cause damage during our trip. Dangerous, even life-threatening in severe cases. The importance of the inflation experiment Since it is an air spring, we must ensure that the air inside the spring is very full, and the core film of the spring is complete to prevent undiscovered situations after rupture.
2. How can we test the core film of the spring? The most effective way is to pump air like the core film to check if there is any air leakage? If there is air leakage, it means that the core membrane is damaged, it must be replaced in time to ensure safety.
