| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2BM31062 |
| Minimum Order Quantity: | 6PCS |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Type: | Double Convoluted | Material: | Rubber And Steel |
|---|---|---|---|
| Warranty: | 12 Months | Product Type: | Gas-filled |
| Compact: | Compressed Air | Application: | Industrial Machine |
| Operation: | Single Acting | Operating Temperature: | -40 To 70°C |
| High Light: | Double Type Convoluted Air Spring Bellow,Industrial Machine Air Spring Bellow,4XM8 Threaded Hole Air Spring Bellow |
||
Double Type Convoluted Air Bellows Spring 4XM8 Threaded Hole Industrial Machine Airbag
Item Name:Convoluted Air Spring
GUOMAT Number:2BPM31062
Reference Number:PM31062 PM/31062 PM-31062
The 2BPM31062 is a compact and easy-to-install pneumatic bellows ideal for short-stroke, high-pressure applications. Available in three nominal sizes with stroke lengths ranging from 20mm to 115mm. Single-acting compact air bellows offer frictionless operation, no lubrication or maintenance, and high vibration isolation. The 2BPM31062 compact air bellows are suitable for operating environments from -40 to 70°C.
Detailed Data Description Of PM/31062
| Air Inlet/Gas Hole:G1/2 |
| Rubber Bellow MAX Diameter:178mm |
| Top Cover Plate Diameter:152.5mm |
| Bottom Cover Plate Diameter:152.5mm |
| Distance Of Threaded Holes On Top cover Plate:127mm |
| Distance Of Threaded Holes On Bottom cover Plate:127mm |
|
Top Cover Plate Screw (Nut) Tooth:4XM8 |
| Bottom Cover Plate Screw(Nut)Tooth:4XM8 |
| M8:25Nm |
| G1/2:25Nm |
| The Working Stroke:80mm~195mm |
| Maximum Height:195mm |
| Minimum Height:80mm |
| Compressed Height:115mm |
| Required Installation Width:195mm |
Technical Data Of PM/31062
| Min Pressure | 0 bar |
| Min Altitude Restoration | ≤180N |
| Weight(Contains Metal Parts) | 1.8kg |
|
Vibration Isolation Applications - Dynamic Eigenvalues -------Design Height H :155mm , Min 145mm |
|||||||
| Pressure P ［bar］ | 3 | 4 | 5 | 6 | 7 | 8 | Volume V ［I］ |
| Load ［KN］ | 2.6 | 3.5 | 4.5 | 5.5 | 6.5 | 7.6 |
2.0 |
| Stiffness ［N/cm］ | 675 | 855 | 1035 | 1215 | 1395 | 1570 | |
| Natural Frequency ［Hz］ | 2.5 | 2.4 | 2.4 | 2.3 | 2.3 | 2.3 | |
|
Pneumatic Applications - Static Eigenvalues -------Load ［KN］ |
||||||||
| Pressure P ［bar］ | 3 | 4 | 5 | 6 | 7 | 8 | Volume V ［I］ | |
| Height H ［mm］ | 160 | 2.6 | 3.5 | 4.5 | 5.5 | 6.5 | 7.6 | 2.0 |
| 140 | 3.3 | 4.5 | 5.6 | 6.8 | 8.1 | 9.3 | 1.7 | |
| 120 | 3.9 | 5.2 | 6.6 | 8.0 | 9.4 | 10.8 | 1.5 | |
| 100 | 4.6 | 6.2 | 7.8 | 9.4 | 11.1 | 12.8 | 1.2 | |
Packing Details
1. One piece in a poly bag.1piece in a carton.
2. Mark the product numbers and the QTY outside the carton.
3. As your requirement.
Marking
1. Be possible to mark your logo as request.
2. No specified, will mark our Logo as standard.
3. OEM is accepted.
About us
We always focus on the development of automotive components, and provide you with quality products and competitive prices.
If you are interested in our products, we are pleased to offer you our best quotation. If you have any question, please do let me know
We are looking forward to establishing business with you.

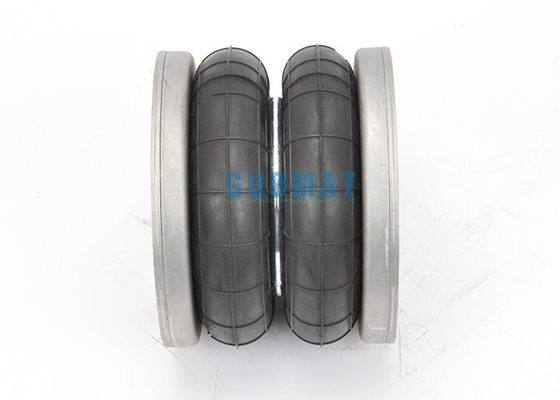

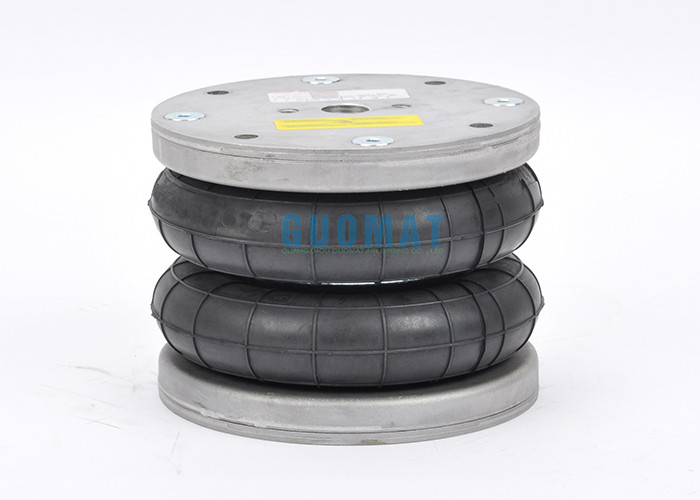

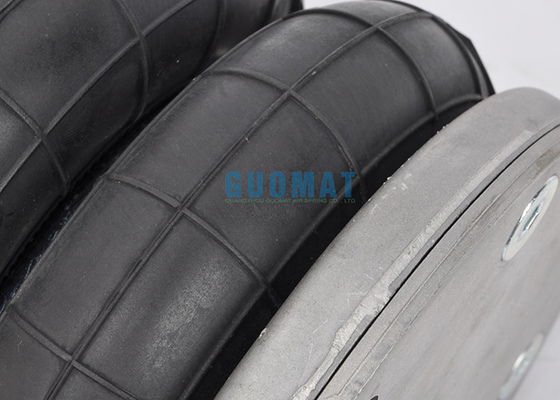

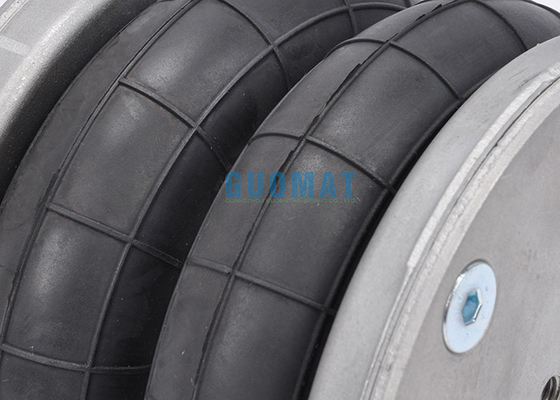

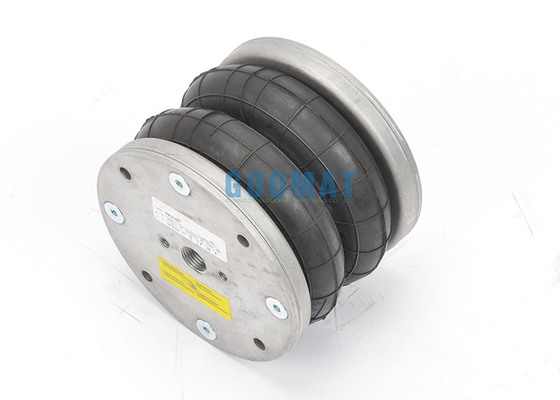

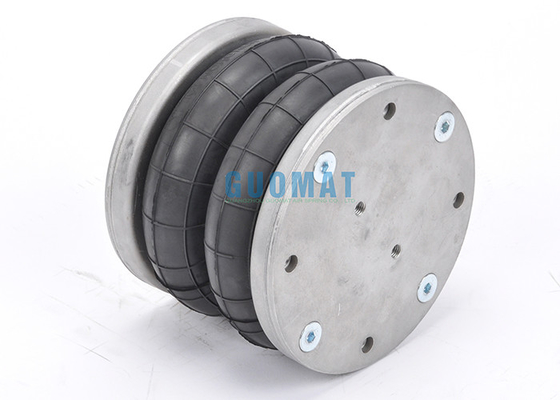

Product Picture
