| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | FD 120-17 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Rubber Material: | High-Quality Rubber | Manufacturer Warranty: | 1 Year |
|---|---|---|---|
| Packing: | Carton/Cartons | Gas Hole: | G3/4 |
| Spring Type: | Double Convoluted | Bellows Style: | Industrial Air Spring |
| Screw: | M8 | Min Pressure: | 0 Bar |
| High Light: | Rubber Double Convoluted Air Spring,FD 120-17 Double Convoluted Air Spring |
||
FD 120-17 CI Air Inlet G3/4 Contitech Rubber Double Convoluted Air Spring
Product Description
OEM Part Number
Contitech :FD 120-17 CI
2682 030000
Bosch :822419042
Dunlop(FR) :SO 8201
Festo : EB-215-155
| Working temperature | -40°C bis +70°C |
| Failure testing | ≥3 millions |
| Top Cover Plate Diameter | 135mm |
| Bottom Cover Plate Diameter | 135mm |
| Gas Hole / Air inlet | G3/4 |
| Rubber Bellows Natural Diameter | 189mm |
| Compressed Height | 79mm |
| Design Height | 178mm-203mm |
| Top Cover Plate Screw (Nut) Tooth | 2XM8X1.25 |
| Bottom Cover Plate Screw (Nut) Tooth | 2XM8X1.25 |
| Screw Center Distance of Top Cover Plate | 70mm |
| Screw Center Distance of Bottom Cover Plate | 70mm |
M8=25Nm
G3/4=50Nm
| Min.pressure 0bar |
| Return Force to min.height ≤200N |
| Overall weight with clamped plates 2.3kg |
Vibration isolation-dynamic characteristic values
|
Pressure P ［bar］ |
3 |
4 |
5 |
6 |
7 |
8 |
VoI.［I］ |
|
Force (Load) ［KN］ |
3.8 |
5.2 |
6.5 |
8.0 |
9.3 |
10.6 |
3.2 |
|
Spring Rate ［N/CM］ |
600 |
830 |
1060 |
1290 |
1520 |
1750 |
|
|
Natural Frequency ［HZ］ |
2.1 |
2.0 |
2.0 |
2.0 |
2.0 |
2.0 |
|
Pressure P |
［bar］ |
3 |
4 |
5 |
6 |
7 |
8 |
VoI.［I］ |
|
Height H(mm) |
200 |
3.4 |
4.8 |
5.9 |
7.3 |
8.5 |
9.7 |
3.4 |
|
180 |
4.2 |
5.7 |
7.1 |
8.6 |
10.1 |
11.5 |
3.1 |
|
|
160 |
4.9 |
6.5 |
8.1 |
9.9 |
11.5 |
13.1 |
2.8 |
|
|
140 |
5.5 |
7.2 |
9.1 |
11.0 |
12.7 |
14.5 |
2.4 |
|
|
120 |
6.0 |
7.9 |
9.9 |
12.0 |
14.0 |
15.8 |
2.1 |
|
|
100 |
6.4 |
8.5 |
10.7 |
12.9 |
15.1 |
17.0 |
1.6 |
|
|
80 |
6.8 |
9.1 |
11.3 |
13.7 |
16.0 |
17.9 |
1.2 |
Operation
Due to their flexible construction the mounting of air bellows is less critical than conventional pneumatic cylinders,which normally require rigid fixing and guidance and provide only axis location of the end plates may be off set by up to 10mm.
When pressurised air bellow will follow the line of leased resistance.Accordingly care must be taken with mounting geometry in angled applications.
When depressurised air bellow will fit in to surprisingly small spaces,especially useful for clamping or moving awkwardly shaped or very heavy loads.
In operation it is recommended that the unit is not allowed to "bottom out" or achieve its maximum height.Various mechanical devices may be employed to achieve this.

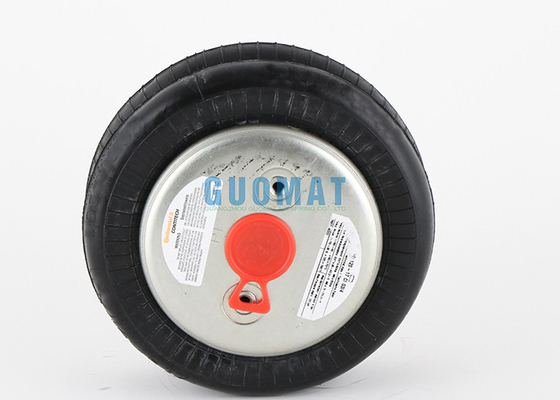

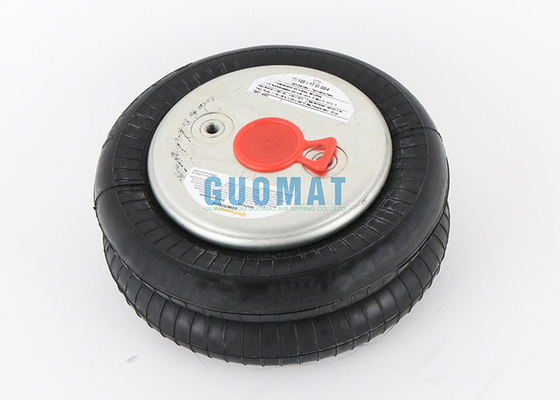

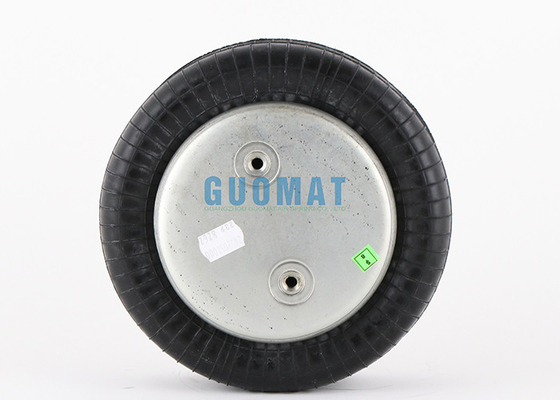

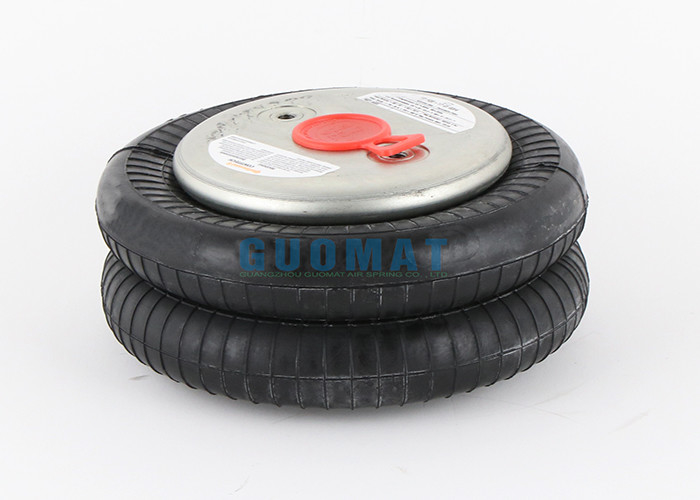

Product Picture
