| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | FS 210-10 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Rubber Type: | Natural Rubber | Material: | Rubber + Steel |
|---|---|---|---|
| Warranty: | 12 Months | Package: | Carton/Cartons |
| Screw Tooth: | M10 | Contitech: | FS 210-10 DS |
| MOQ: | 1 Pcs | The Working Stroke: | MAX 150mm To MIN 50mm |
| High Light: | Single Press Rubber Air Spring,Contitech FS 210-10 Rubber Air Spring |
||
Contitech FS 210-10 DS G1/2 Single Press Rubber Air Spring For Industrial Machine
Product Description
| Product Name | Contitech Air Spring |
| Manufacturer | Contitech |
| OEM Number | FS 210-10 DS , FS 210-10 , fs 210-10 , FS210-10 |
| Gas Hole | G1/2 |
| MOQ | 1 PCS If We Have Stock |
|
Delivery Time |
2-8 Working Days |
|
Package |
(1) Bubble Bag And Brown Carton (2) Customer Require Packaging (3) Normal Exported Package |
Air Spring Supplier : Contitech
Original Equipment Manufacturer Number : FS 210-10 DS
Technical Data
Air Inlet / Gas Hole
Gas Hole:G1/2
G1/2=25Nm
Cover Plate of Air Spring
Top Cover Plate Diameter:210mm
Screw Center Distance of Top Cover Plate:181mm
Bottom Cover Plate Diameter:210mm
Screw Center Distance of Bottom Cover Plate:181mm
Blind Nut
Top Cover Plate Screw(Nut)Tooth:4 pieces xM10
Bottom Cover Plate Screw(Nut)Tooth:4 pieces xM10
M10=25 Nm
Rubber Bellow
Rubber Bellow MAX Diameter:270mm
The Working Stroke:MAX 150mm to MIN 50mm
Maximum Height:150mm
Minimum Height:50mm
Compression Height:100mm
Other Type
| Contitech No. | Gas Hole | Contitech No. | Gas Hole |
| FS 22-3 DI CR | G1/4 | FD 44-10 DI CR | G3/8 |
| FS 44-5 DI CR | G3/8 | FD 76-14 DI CR | G1/2 |
| FS 76-7 DI CR | G1/2 | FD 76-14 DS CR | G1/2 |
| FS 76-7 DS CR | G1/2 | FD 138-10 DS | G1/2 |
| FS 138-8 DS | G1/2 | FD 209-21 DS | G1/2 |
| FS 412-10 DS | G1/2 | FD 210-22 DS | G1/2 |
| FS 614-13 DS | G1/2 | FD 412-18 DS | G1/2 |
| FS 816-15 DS | G1/2 | FD 614-26 DS | G1/2 |
| FD 22-4 DI CR | G1/4 | FD 816-30 DS | G1/2 |
| FT 22-6 DI CR | G1/4 | FT 44-15 DI CR | G3/8 |
| FT 76-20 DI CR | G1/2 | FT 76-20 DS CR | G1/2 |
| FT 138-26 DS | G1/2 | FT 210-32 DS | G1/2 |
| FT 412-32 DS | G1/2 | FT 614-36 DS | G1/2 |
| FT 816-40 DS | GS1/2 |
CONTITECH:FS 210-10 G1/2 M10 (FS 210-10 / FS210-10)
CONTITECH : FS 210-10 DS G1/2 (FS 210-10 / FS210-10)
CONTITECH : FS 210-10 DS / FS210-10DS (FS 210-10 / FS210-10)
GOODYEAR : 1B10-2350 / 5789132350 / 578-91-3-2350 / 578 91 3 2350
DUNLOP : SP2523 / SP 2523
DUNLOP : A111270007 / A 1 1127 00 07
NORGREN : M31101 / M 31101 / M-31101
Industrial Air Spring
Compared with ordinary springs, industrial air springs are more rigid and can maintain a tough state no matter how much force they carry. In the case of heavy load bearing, the industrial air spring still maintains a relatively stable vibration frequency, and will not reduce or increase the frequency due to excessive external pressure. Ordinary springs will make a lot of noise when the vibration frequency is too high, but industrial air springs can absorb a lot of noise and block sound.
The working principle of the industrial air spring is very simple. If you want it to bear more pressure, you need to adjust the air pressure inside the spring. The air pressure is determined by the amount of gas. During operation, a certain amount of gas is injected into the air spring to adjust the pressure while adjusting the load-bearing. If you want to adjust the vibration frequency of the air spring, you also need to adjust the air pressure.
At present, air springs are widely used in industry. With large-scale technological innovation, industrial air springs are more compact in size, more durable and safer.

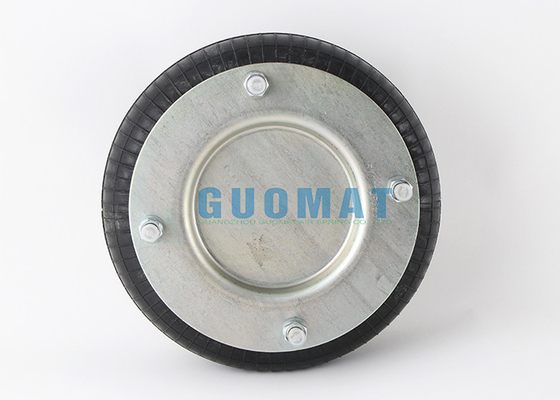

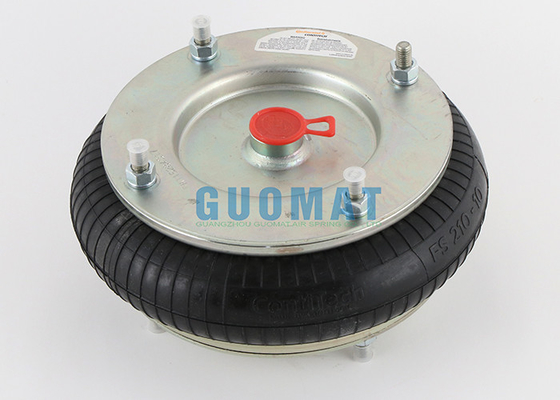

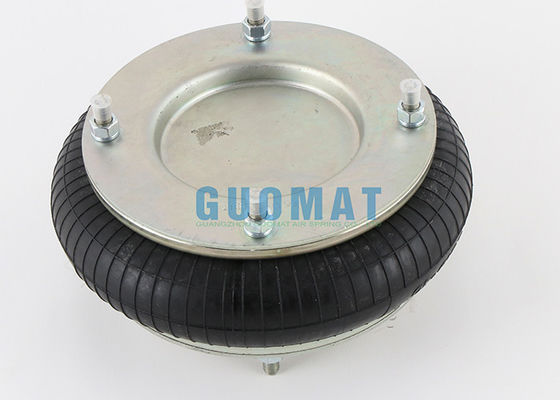

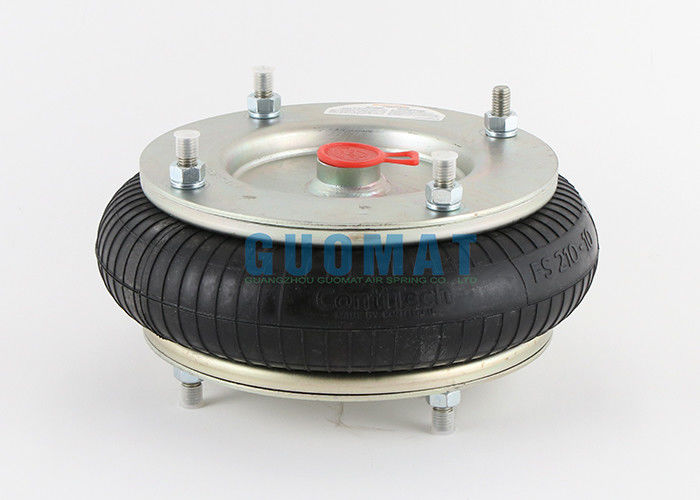

Product Image
