Email:linda@662n.com Mob:+8613924100039(WhatsAPP)
Wechat:airspringG Skype:guomat
 |
| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 4 1/2 X 3 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Item Name: | Air Bellow Spring | Warranty: | 1 Year |
|---|---|---|---|
| Material: | Natural Rubber + Aluminum | Package: | Cartons |
| OEM Number:: | SP2895 | Dunlop Number: | 4 1/2 X 3 |
| Shipping Port: | Huangpu,Guangzhou | Product Features: | Reduce Vibration |
| High Light: | Industrial Air Bags Triple Convoluted,Industrial Air Bags W01-R58-4035,Triple Convoluted Firestone Air Spring |
||

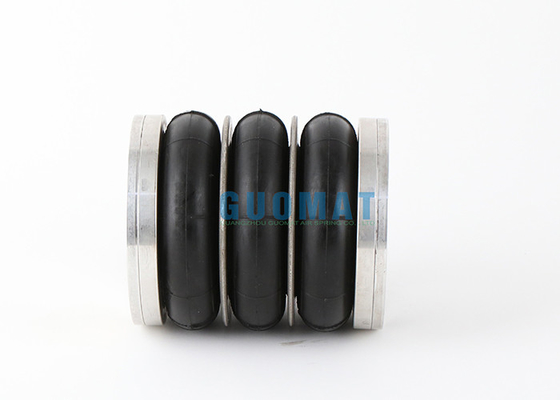

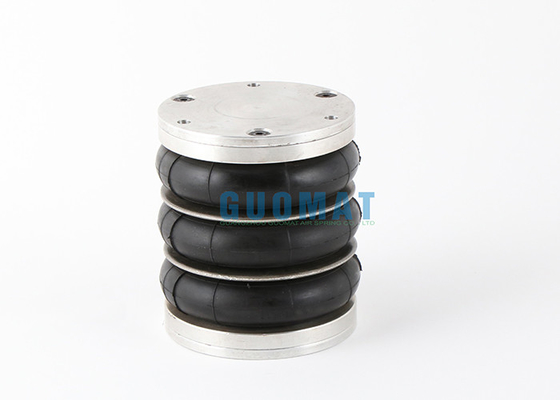

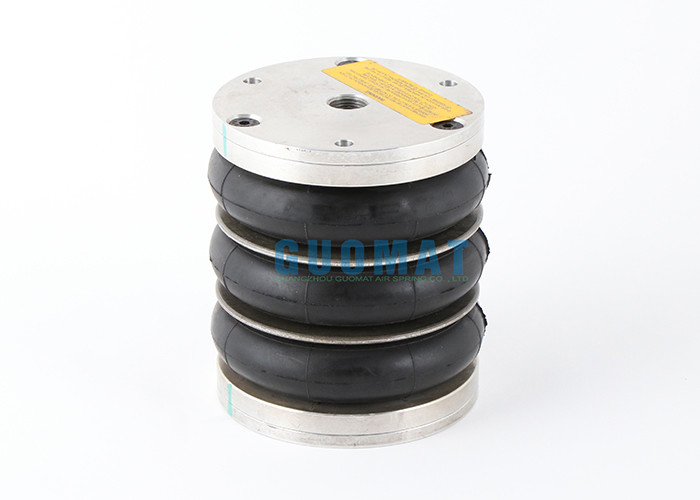

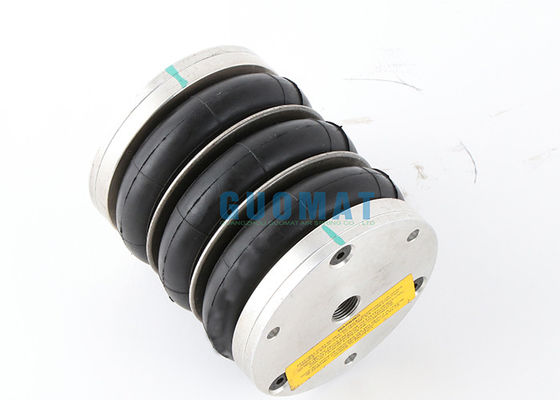

Triple Convoluted Industrial Air Bags Dunlop 4 1/2x3 Firestone Air Spring W01-R58-4035
Product Description
| Item | Value |
| OEM.NO. | W01-R58-4035 |
| Type | Air Spring |
| Warranty | 12 Months |
| Color | Black |
| Place of Origin | Guangzhou,China |
| Certification | ISO/TS16949:2009 |
| Material | Rubber+Aluminum |
| Packing | Neutral Packing |
| MOQ | 1 Pcs |
| Quality | High-Quality |
| Application | Industrial |
The Cross Reference Number of 4 1/2x3
Firestone Air Bellow :W01-R58-4035 , W01R584035 , W01 R58 4035
Dunlop Air Bellow : SP2895 , SP 2895
Dimensions(Pouces) : 41/2 X2 / 41/2x2 / 41/2'' x2 / 4.5x2 / 4.5'' x2
FIRESTONE Number : W01-R58-4035
DUNLOP Number : SP2895
Top Bead Plate
Top Cover Plate Diameter
110mm
Gas Hole
G3/8
Screw(Nut)
M6x12
Screw(Nut) Number
6 Pieces
Screw Center Distance of Top Cover Plate
93mm
Bottom Bead Plate
Bottom Cover Plate Diameter
110mm
Screw(Nut)
M6x12
Screw(Nut) Number
6 Pieces
Screw Center Distance of Top Cover Plate
93mm
Rubber Bellow
Rubber Bellows MAX Diameter
125mm
The Working Stroke
MAX 200 mm to MIN 100 mm
Maximum Height
200mm
Minimum Height
100mm
Compression Height
100mm
What equipment are industrial air springs used for?
Air springs are widely used in industrial machinery for vibration isolation of machinery and equipment, so what equipment are they used for? Below we give an example.
General industrial air springs are used in the following equipment, such as presses, air compressors, centrifuges, vibration conveyors, control hammers, foundry machinery and textile machinery, optical and laser machines, integrated circuits, ultra-precision machine tools and other precision equipment and precision testing equipment .
Air springs can be used in machinery and equipment to cushion and dampen, control movement and pressurize. Compared with other springs with the same function, the air spring has a simple structure, does not require complicated calculations, does not have the problem of seal leakage, is simple to maintain and has a long service life. In the vibrating screen equipment, the material box is operated by a vibrator to make the material evenly mixed, and the vibration will cause fatigue or even damage to the supporting parts of the material box, so a vibration-isolating air spring must be installed. The use of air springs can also provide greater flexibility. Adjusting the amount of air charged in the spring can accommodate different workloads and height requirements without affecting the effect of vibration isolation.
What about our package & shipping terms?
Package: 1. Brown Carton
2.According to customer requirement
Shipping: Huangpu Port
Payment Term: L/C ,T/T,Western Union and PayPal
Delivery Time: 2-8 working days receiving your payment.
Contact Person: Sunny
Tel: 18928788039
