Place of Origin: | GuangDong, China |
Brand Name: | GUOMAT |
Certification: | ISO/TS16949:2009 |
Model Number: | 6x1 |
Minimum Order Quantity: | 6pcs |
---|---|
Price: | $59.9-69.9/pc |
Packaging Details: | Strong Carton Box Or As Customers Need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union, L/C |
Supply Ability: | 1000pcs/week |
Spring Material: | High-Quality Rubber | Warranty: | 1 Year |
---|---|---|---|
Firestone No.: | W01-R58-4052 | Product Features: | Reduce Vibration |
Net Weight: | 2.35kg | Pressure Ability: | 0.2-0.8 M PA |
Air Inlet: | 1/2 BSP | Spring Type: | Single Convoluted With Flange Ring |
High Light: | SP1368 Dunlop Industrial Air Spring,W01-R58-4052 Industrial Air Spring,Firestone Air Spring Bag |
W01-R58-4052 Firestone Air Spring Bag SP1368 Dunlop Industrial Air Spring Flange Ring
Product Description
Type | Convoluted Air Spring | OEM No. | W01-R58-4052 |
Item No. | 6x1 | Other No. | SP1368 |
Rubber Type | Natural Rubber | Plate Dia | 153mm |
Original Equipment Manufacturer Number
FIRESTONE : W01-R58-4052 , W01 R58 4052 , W01R584052 , W01/R58/4052
DUNLOP : SP1368 , SP 1368
Firestone Bellow Number : W01-R58-4052
Dunlop : SP1368 , 6X1 , 6''x1
Technical Data
Nut/Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4xM10X1.5
Bottom Cover Plate Screw (Nut) Tooth : 4xM10X1.5
Cover Plate
Top Cover Plate Diameter : 153mm
Bottom Cover Plate Diameter : 153mm
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet :1/2 BSP
Rubber Bellow
Rubber Bellows MAX Diameter :153mm
Other Similar Types
No | Dimensions(Pouces) | Firestone | Dunlop |
1 | 23/4X3 | W01-R58-4081 | SP 2910 |
2 | 41/2X1 | W01-R58-4043 | SP 2008 |
3 | 41/2X1 | W01-R58-4050 | SP 2334 |
4 | 41/2X1 | W01-R58-4051 | SP 2441 |
5 | 41/2X2 | W01-R58-4076 | SP 1457 |
6 | 41/2X3 | W01-R58-4035 | SP 2895 |
7 | 6X1 | W01-R58-4078 | SP 2913 |
8 | 6X2 | W01-R58-4036 | SP 543 |
9 | 6X2 | W01-R58-4053 | SP 1482 |
10 | 6X2 | W01-R58-4070 | SP 2917 |
11 | 6X3 | W01-R58-4095 | SP 2861 |
12 | 8X1 | W01-R58-4054 | SP 1637 |
13 | 8X1 | W01-R58-4085 | SP 1218 |
14 | 8X2 | W01-R58-4045 | SP 253 |
15 | 8X2 | W01-R58-4055 | SP 1490/SP 918 |
16 | 8X3 | W01-R58-4056 | SP 2863 |
17 | 10X1 | W01-R58-4057 | SP 2623 |
18 | 10X2 | W01-R58-4048 | SP 255 |
19 | 10X2 | W01-R58-4058 | SP 1538 |
20 | 10X2 | W01-R58-4092 | SP 1538 |
What is your terms of packing?
Generally, we pack our goods in neutral brown cartons.If you have legally registered patent, we can pack the goods in your branded box after getting your authorization letters.
What is your sample policy?
We can supply the sample if we have ready parts in stock ,but the customers have to pay the sample cost and the freight cost.
Do you test your goods before delivery?
Yes,We have 100% test before delivery.
How about your delivery time?
Usually 2-8 working days after receiving your payment.
How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friends and we sincerely do business and make friends with them, no matter where they come from.
Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

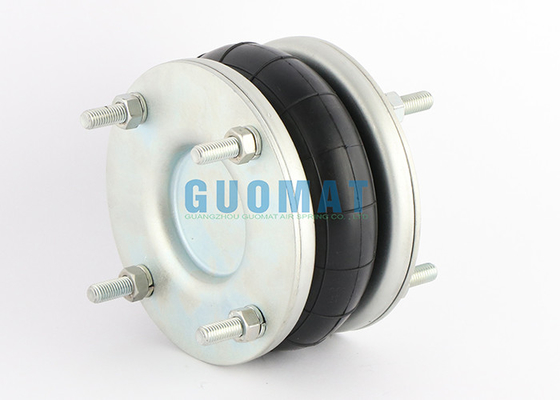

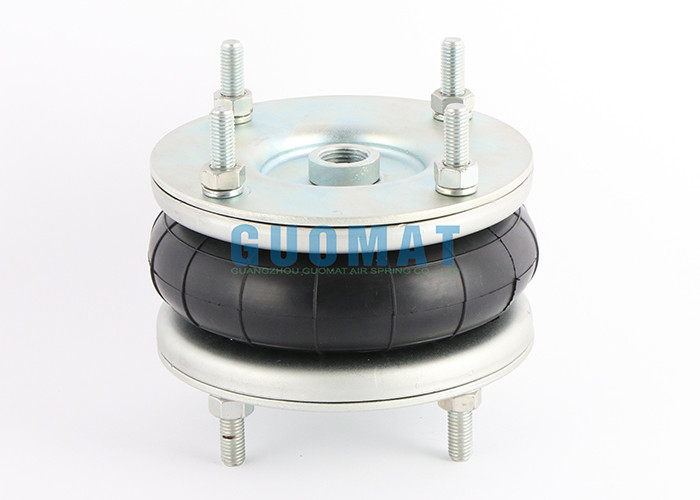

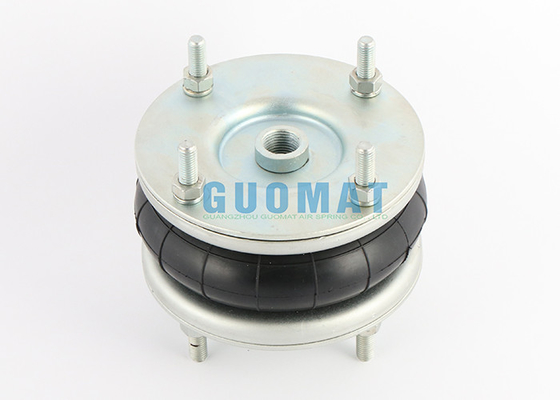

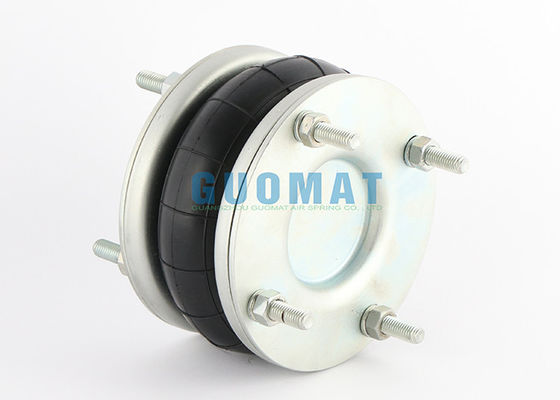

Product Picture of Dunlop 6x1
41/2X1 |
