| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | W01-R58-4070 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Material: | Aluminum + Rubber | Product Warranty: | 1 Year |
|---|---|---|---|
| Firestone: | W01-R58-4070 | Rubber Bellow Type: | Double Convoluted Type |
| Pressure Ability: | 0.2-0.8 MPa | Air Hole: | G1/2 , 1/2 BSP |
| Package: | Strong Carton | Other Name: | Airbag , Air Springs Bellows Actuator , Rubber Spring |
| High Light: | 2 Convoluted Industrial Air Spring,Industrial Air Spring W01-R58-4070 |
||
6x2 Assembly Air Bag Firestone W01-R58-4070 Dunlop SP2917 Air Springs Bellows Actuator
Product Description
Air Spring 6 x 2 Series
FIRESTONE : W01-R58-4070
FIRESTONE : W01R584070
FIRESTONE : W01 R58 4070
FIRESTONE : W01/R58/4070
FIRESTONE : w01-r58-4070
DUNLOP : SP2917
DUNLOP : SP 2917
DUNLOP : SP/2917
NORGREN : PM 31062
NORGREN : PM31062
NORGREN : PM/31062
The Specification of 6x2 Air Spring Actuator
Product Series : Double Convoluted Assembly
Nominal Diameter : 6 (inch)
Number of Convolutions : 2
Port Connection : G1/2
Maximum Operating Pressure : 8 bar
Top Cover Diameter(Width) : 153.5mm
Bottom Cover Diameter(Width) : 153.5mm
Rubber Bellow MAX Diameter : 175mm
Installation Height Minimum : 80mm
Installation Height Maximum : 195mm
The Working Stroke : 115mm
Top Cover Screw (Nut) Teeth : 4XM8
Bottom Cover Screw(Nut) Teeth : 4XM8
Material Cover Plate : Aluminum
This is a compact and easy to install pneumatic bellows and is ideal for short stroke high pressure applications. The working stroke is 80 cm to 195 cm. Our air springs are made of high-quality materials for durability and high shock absorption. The W01-R58-4070 industrial air spring is suitable for operating environments from -40 to 70°C.
Air springs are used to elastically connect machines and equipment that generate shocks and vibrations that are transmitted through the foundation to the environment (e.g. textile machines, conveyor belts, hammers, forging presses, etc.). They are ideal for isolating laboratory instruments from vibration. They can also be used to hang truck trailers and caravans. They are used in pneumatic lifts, for example in auto repair shops.
GUOMAT Other Types of Air Spring | |
M Type Air Spring | PM Type Air Spring |
M31061 | PM31021 |
M31062 | PM31022 |
M31081 | PM31023 |
M31082 | PM31041 |
M31101 | PM31042 |
M31102 | PM31043 |
M31103 | PM31061 |
M31121 | PM31062 |
M31122 | PM31063 |
M31123 | PM31081 |
M31141 | PM31082 |
M31142 | PM31091 |
M31143 | PM31092 |
M31162 | PM31121 |
M31163 | PM31122 |
| PM31123 |

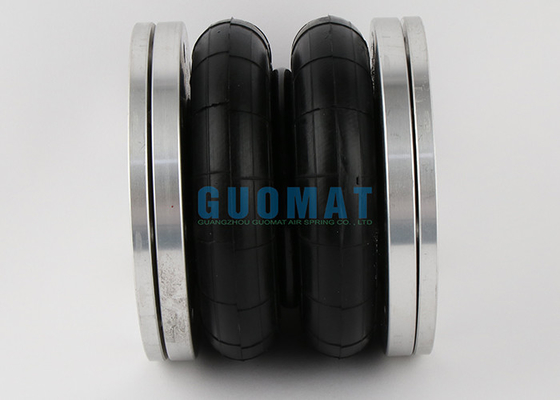

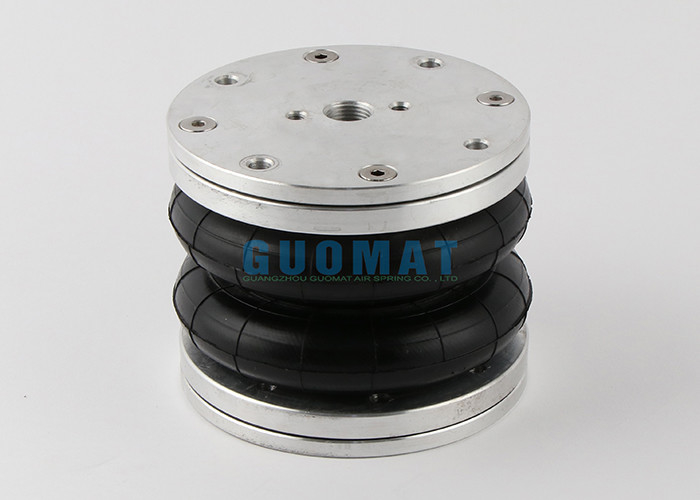

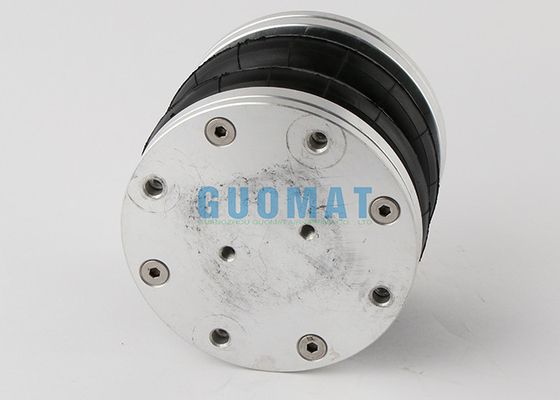

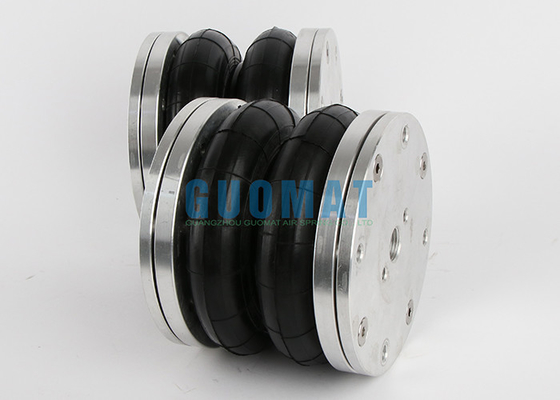

Product Picture
