Place of Origin: | GuangDong, China |
Brand Name: | GUOMAT |
Certification: | ISO/TS16949:2009 |
Model Number: | FS 120-9 |
Minimum Order Quantity: | 6pcs |
---|---|
Price: | $49.9-59.9/pc |
Packaging Details: | Strong Carton Box Or As Customers Need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union, L/C |
Supply Ability: | 1000pcs/week |
Material: | Rubber And Steel | Warranty: | 12 Months |
---|---|---|---|
Dunlop(FR): | 8x1 | Firestone: | W01-M58-6165 |
Function: | Reduce Shock | Gas Hole: | G1/4 |
Rubber Bellow: | MAX.215mm | Type: | Single Convoluted Air Spring |
High Light: | W01-M58-6165 Single Convoluted Air Spring,Contitech FS120-9 Single Convoluted Air Spring |
W01-M58-6165 Firsetone Single Convoluted Air Spring Contitech FS 120-9 Industrial Reduce Shock
Product Description
Material |
Rubber+Steel |
Place of Origin |
Guangdong, China |
MQQ |
1 Pcs |
Warranty |
1 year |
Single package size |
24*24*24(cm) |
Single gross weight |
2.0KG |
Air Spring |
Air Vibration Industrial |
Type |
Suspension Spring |
Cross Reference Number
Firestone W01-M58-6165
Contitech FS 120-9
The Technical Data for Single Convoluted Air Bellow
Cover Plate
Top Cover Plate Diameter : 135mm
Bottom Cover Plate Diameter : 135mm
Nut/ Blind Nut
Top Cover Plate Screw(Nut) Tooth : 2xM8x1.25
Screw Center Distance of Top Cover Plate : 70mm
Bottom Cover Plate Screw(Nut) Tooth : 2xM8x1.25
Screw Center Distance of Bottom Cover Plate : 70mm
Gas Hole/Air Inlet/Air Fitting
Gas Hole : G3/4
Rubber Bellow
The Rubber Bellow MAX Diameter : 215mm
The Working Stroke : MAX 115mm To MIN 50mm
Maximum Height : 115mm
Minimum Height : 50mm
Compression Height :65mm
Other P/M Type Air Spring
PM31021 |
PM31022 |
PM31023 |
PM31041 |
PM31042 |
PM31043 |
PM31061 |
PM31062 |
PM31063 |
PM31081 |
PM31082 |
PM31091 |
PM31092 |
PM31121 |
PM31122 |
PM31123 |
Our advantages
1.A wide range of products
2.Accept OEM order
3.Affordable, safe and efficient logistics services
4.Flexible payment
5.Guaranteed warranty
Applications
Various applications for the vehicle industry such
---as steering damping, engine vibration damping, belt
---tensioning damping for engines and on driver seats in commercial vehicles, etc.
On household products such as washing machines
Special shock absorbers for bicycles
On commercial lawn movers
In the medical equipment industry ie. on wheelchairs
GUOMAT Proudly Offer the Highest Quality Replacement Air Springs that Exceed OEM Requirements.

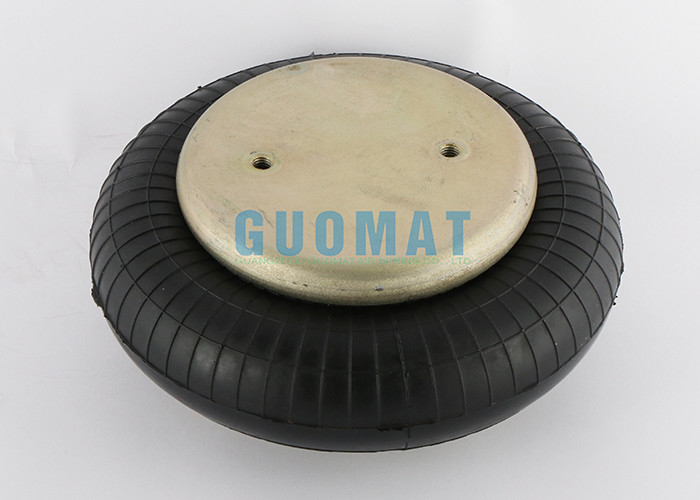

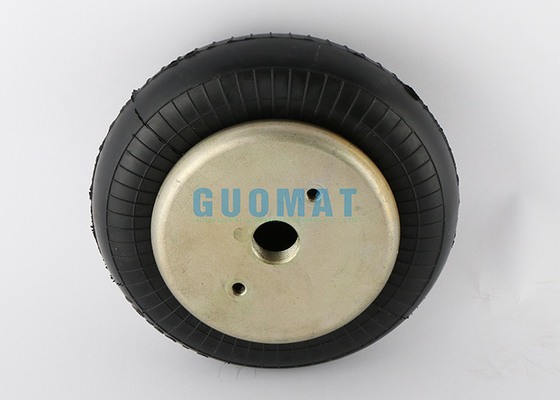

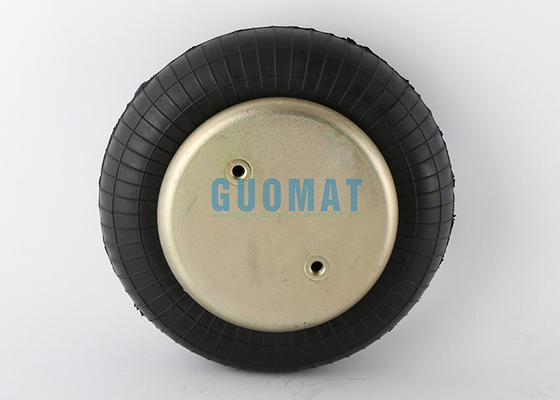

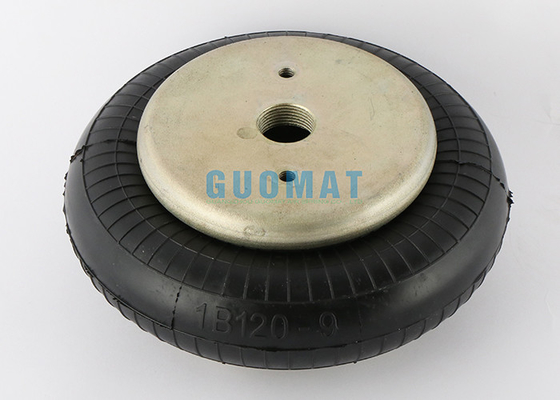

Product Picture
