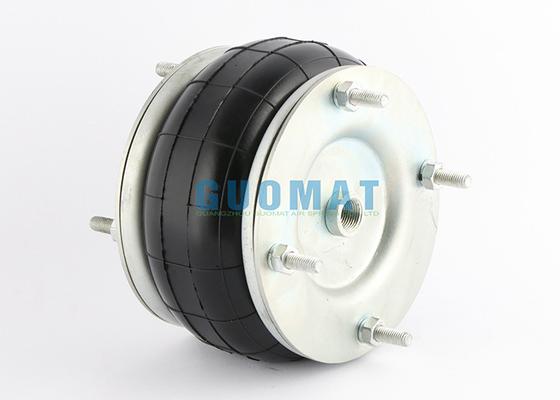

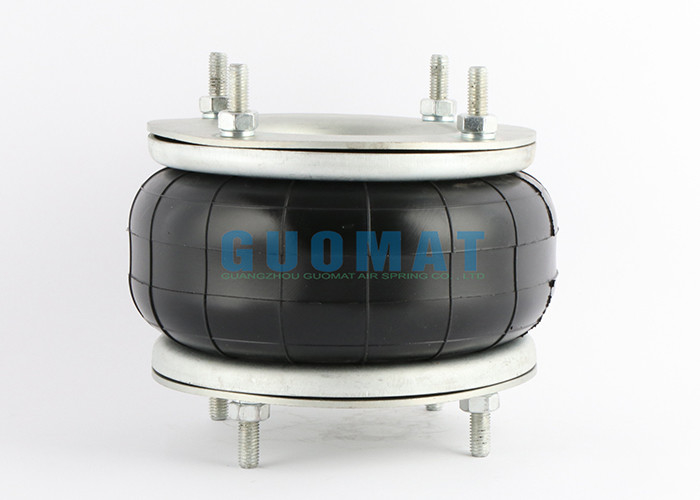

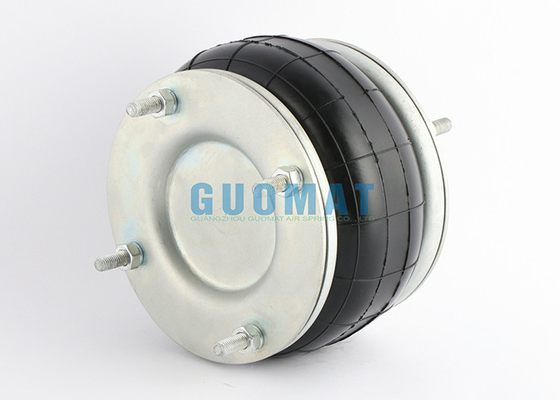

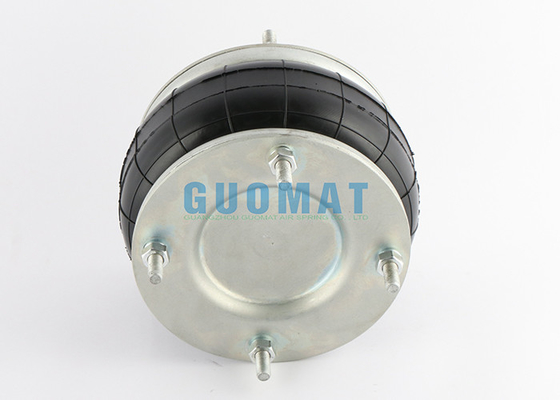

8x1 Single Convoluted Rubber Air Spring Firestone W01-R58-4054 Industrial Air Bags

Name: 8x1 Single Convoluted Rubber Air Spring Firestone W01-R58-4054 Industrial Air Bags
Brand: GUOMAT
SKU: 1B 8X1
Price: 49.9 USD
Availability: InStock
Rating: 4.7 (136 reviews)

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B 8X1

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$49.9-59.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Material:	Rubber+Steel	Warranty:	1 Year
OEM NO.:	8''x1	Application:	Industrial Machine
Packing Size:	242424(cm)	Shock Absorber Type:	Gas-Filled
Firestone:	W01R584054	DUNLOP:	SP1637
High Light:	Single Convoluted Rubber Air Spring , W01-R58-4054 Rubber Air Spring , W01-R58-4054 Industrial Air Bags

8x1 Single Convoluted Rubber Air Spring Firestone W01-R58-4054 Industrial Air Bags

Cross Reference Number of GUOMAT No 1B8x1

GUOMAT Part Number : 1B 8X1

Continental ContiTech : FS 138-8

Continental ContiTech : FS138-8

Continental ContiTech : FS 138-8 DS

Continental ContiTech Part Number : FS 138-8 DS G1/2

Continental ContiTech Order Number : 66507

Continental ContiTech Part Number : FS 138-8 1/2 M10

Continental ContiTech Order Number : 66507

Firestone Number: W01-R58-4054

Firestone Number: W01R584054

Firestone Number: W01 R58 4054

Firestone Number: w01-r58-4054

Firestone Number: w01r584054

Firestone Number: w01 r58 4054

Firestone Style: 8 x 1

Firestone Style: 8''x1

Firestone Style: 8''X1

Dunlop FR: 8"x1

Dunlop FR: SP1537

Dunlop FR: SP 1537

Dunlop UK (Pneuride): 8"x1

Dunlop UK (Pneuride): PNP305500110

Norgren: M/31081

Norgren: M 31081

Norgren: M31081

Parker Pneumatic: 9109014

Technical Data

Working temperature : -40°C bis +70°C

Failure testing : ≥3 millions

Top Cover Plate Diameter : 184mm

Bottom Cover Plate Diameter : 184mm

Gas Hole / Air inlet : G1/2

Rubber Bellows MAX Diameter : 203mm

The Working Stroke : MIN 47 mm

Top Cover Plate Screw (Nut) Tooth : 4XM10X1.5

Bottom Cover Plate Screw (Nut) Tooth : 4XM10X1.5

Screw Center Distance of Top Cover Plate : 156mm

Screw Center Distance of Bottom Cover Plate : 156mm

Continental D Style Air Spring Details

Model	Gas Hole	Screw Tooth	Rubber Bellow (mm)	Cover Plate (mm)
FS 76-7 DS CR	G1/2	M10	175	153.5
FS 210-10 DS	G1/2	M10	270	210
FS 412-10 DS	G1/2	M10	330	260
FS 614-13 DS	G1/2	M10	400	310
FS 816-15 DS	G1/2	M10	420	310
FD 76-14 DS CR	G1/2	M10	175	153.5
FD 138-18 DS	G1/2	M10	225	184
FD 209-21 DS	G1/2	M10	255	197
FD 210-22 DS	G1/2	M10	270	210
FD 412-18 DS	G1/2	M10	325	260
FD 614-26 DS	G1/2	M10	400	310
FD 816-30 DS	G1/2	M10	435	310
FT 76-20 DS CR	G1/2	M10	178	153.5
FT 138-26 DS	G1/2	M10	230	184
FT 210-32 DS	G1/2	M10	270	210
