| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | FD 330-22 363 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber+Metal | Warranty: | 12 Months Warranty |
|---|---|---|---|
| Performance: | Reduced Vibration | Working Temperature: | -40℃ Bis +70℃ |
| Gas Hole: | 1/4NPTF | Firestone: | W01-358-7180/22 |
| Goodyear: | 2B12-425/311 | SAF Holland: | 57007180 |
| High Light: | Double Convoluted Air Spring Assembly,Air Spring Assembly W01-358-7180 |
||
Double Convoluted Air Spring Assembly W01-358-7180 Firestone Industrial Rubber Bellows
Product Description
|
Item Name |
Air Shock, Air Balloon |
Part Number |
2B7180 |
|
Material |
Rubber + Steel |
Warranty |
1 Year |
|
Net Weight |
5.387kg |
Shipping Packing | Brown Neutral Carton Box |
|
Packing Size |
24*24*24(cm) | Position | Front/Rear |
OEM Number of GUOMAT 2B7180
Firestone W01-358-7180/22
Firestone W01 358 7180/22
Firestone W013587180/22
Applicable to the following vehicles
Vibracoustic VSP2B22R7180
|
W01-358-7180/22 Air Bellow Technical Data |
|
|
Nut/Blind Nut |
|
|
Top Cover Plate Screw (Nut) Tooth |
2X3/8 -16UNC |
|
Screw Center Distance of Top Cover Plate |
157mm |
|
Screw and Air Inlet Distance of Top Cover Plate |
73mm |
|
Bottom Cover Plate Screw (Nut) Tooth |
2X3/8-16UNC |
|
Screw Center Distance of Bottom Cover Plate |
157mm |
|
Gas Hole / Air inlet / Air Fitting |
|
|
Gas Hole / Air inlet |
1/4NPTF |
|
Cover Plate |
|
|
Top Cover Plate Diameter |
231mm |
|
Bottom Cover Plate Diameter |
231mm |
|
Rubber Bellow |
|
|
Rubber Bellows MAX Diameter |
325mm |
|
The Working Stroke |
MAX 305mm to MIN 81 mm |
|
Maximum Height |
305mm |
|
Minimum Height |
81mm |
|
Compression Height |
224mm |
1B7180 Other air holes of rubber air spring
|
Model Number |
Air Hole |
|
1B7180 |
1/4NPTF |
|
1B7180-A |
G1/2 |
|
1B7180-D |
G1/4 |
Packaging and Shipping
1. For small orders in stock, we usually ship within 2-8 working days after your payment.
2. For out-of-stock products or bulk orders, we will arrange a delivery time with you according to the production situation
3. Our payment terms, full payment or 30% deposit and 70% before shipment.
4. Due to the difference in the actual weight, volume and receiving address of the product, the shipping fee will also change accordingly, please contact us for shipping information.
About Us
Our goal is to produce high-quality shock absorbing products, provide quality merchandise at unbeatable prices, and serve customers worldwide, while always focusing on excellent customer service.
Please feel free to contact us and ask any questions, all questions will be answered promptly. We have a professional sales team to provide excellent pre-sale and after-sale service.

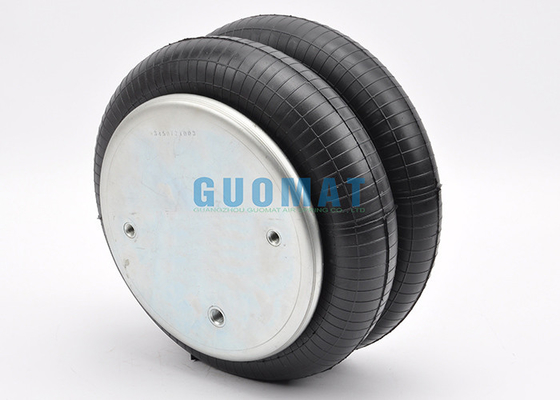

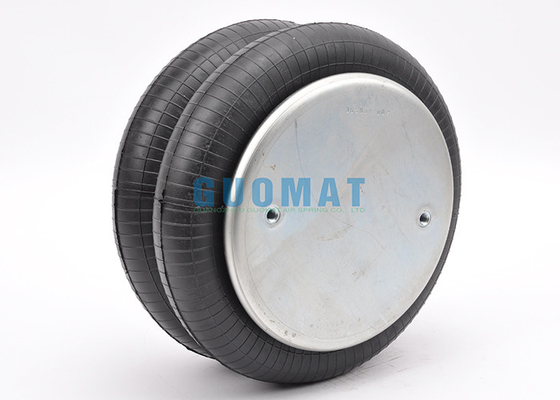

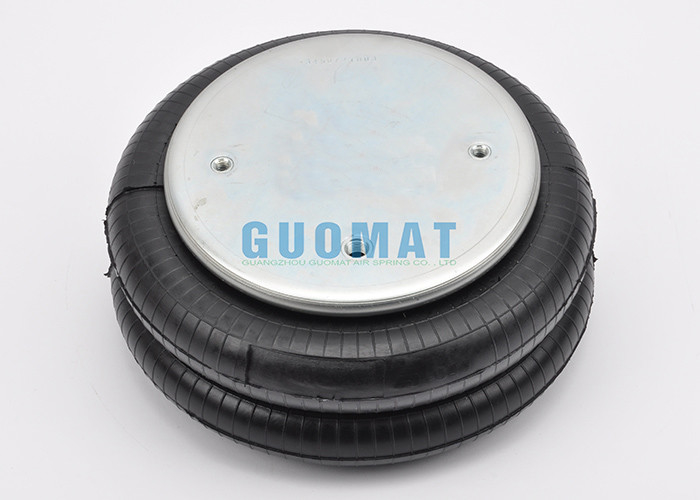

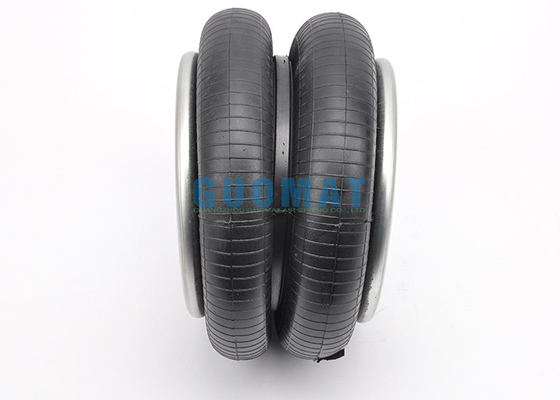

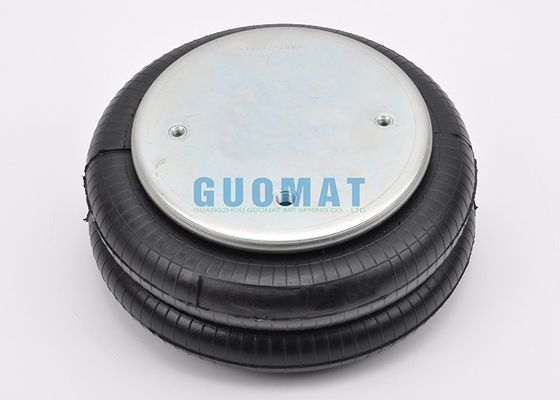

FD 330-22 363 Contitech Air Springs Real Pictures
