W01-358-7557 Firestone Air Spring Kits Goodyear Convoluted Type Suspension Air Bags 2B14-383

W01-358-7557 Firestone Air Spring Kits Goodyear Convoluted Type Suspension Air Bags 2B14-383

  • W01-358-7557 Firestone Air Spring Kits Goodyear Convoluted Type Suspension Air Bags 2B14-383
  • W01-358-7557 Firestone Air Spring Kits Goodyear Convoluted Type Suspension Air Bags 2B14-383
  • W01-358-7557 Firestone Air Spring Kits Goodyear Convoluted Type Suspension Air Bags 2B14-383
  • W01-358-7557 Firestone Air Spring Kits Goodyear Convoluted Type Suspension Air Bags 2B14-383
W01-358-7557 Firestone Air Spring Kits Goodyear Convoluted Type Suspension Air Bags 2B14-383
Product Details:
Place of Origin: GuangDong, China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 2B14-383
Payment & Shipping Terms:
Minimum Order Quantity: 6pcs
Price: $49.9-59.9/pc
Packaging Details: Strong Carton Box Or As Customers Need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Product Name: Truck Rubber Air Spring Material: Rubber+Metal
Warranty: 12 Months Application: Truck / Industrial
Air Inlet: 1/4NPT Combo Stud: M18X1.5
Watson&Chalin: AS-0089 Histeer: 10316
High Light:

W01-358-7557 Firestone Air Spring Kits

,

2B14-383 Air Spring Kits

,

Convoluted Type Suspension Air Bags

W01-358-7557 Firestone Air Spring Kits Goodyear Convoluted Type Suspension Air Bags 2B14-383


Product Description

Product Name: Firestone Air Spring
Description: Truck Spare Parts Air Spring Shock Absorber Spring
MOQ: 1 PCS
Warranty: 12 Months
Material: Rubber
Package: Carton
Payment: L/C T/T West
Port of shipment NINGBO, SHANGHAI, TIANJING, GUANGZHOU, SHENZHEN
Shippment: Bye sea, By air, by DHL Fedex



Specifications and Tecnical Data

Cover Plate

Top Cover Plate Diameter:289mm
Bottom Cover Plate Diameter:289mm

Air Inlet / Gas Hole/Air Hole
Air Inlet: 1/4 NPTF
Combo Stud: M18X1.5

Blind Nut
Screw Center Distance Of Bottom Cover Plate:158mm
Screw and Gas Hole Distance Of Top Cover Plate:158mm
Top Cover Plate Screw (Nut) Tooth:M8X1.75
Bottom Cover Plate Screw (Nut) Tooth:2XM12X1.75

Rubber Bellow
Rubber Bellow MAX Diameter:353mm
The Working Stroke:MAX 391mm to MIN 104mm
Maximum Height:391mm
Minimum Height:104mm
Compression Height:287mm


OEM Manufacturer Number

FIRESTONE W01-358-7557

FIRESTONE W01 358 7557

FIRESTONE W013587557

CONTITECH FD 530-35 530

CONTITECH FD530-35 530

GOODYEAR 2B14-383

GOODYEAR 2B 14-383

GOODYEAR 578923356

GOODYEAR 578 923 356

TRIANGLE 6412

TRIANGLE 4530



Reyco 19983-01

Reyco (21AR,74AR)

Watson&Chalin AS-0089

Histeer 10316

Twthill 1998301



FAQ

Q1. What are your packing conditions?
A: Usually we use brown neutral carton to pack the goods. If you have special requirements, we can also pack according to your requirements.



Q2. What is your payment method?
A: TT payment, L/C payment, Western Union payment and PayPal payment



Q3. What are your delivery terms?
A: EXW, FOB, CFR, CIF, DDU.



Q4. What is your delivery time?
A: Generally speaking, it will be shipped within 2-8 working days after receiving the payment. The exact delivery time depends on the item and the quantity of the order.



Q5. Can you produce according to samples and drawings?
A: Yes, we can produce according to samples or drawings.



Q6. Do you test all your products before shipping?
A: Yes, we will 100% test before shipping.



Q7. How to order ?

A: Step 1, please tell us what model and quantity you need;

    Step 2,then we will make a PI for you to confirm the order details;

    Step 3,when we confirmed everything ,you can arrange the payment;

    Step 4,finally we deliver the goods within the stipulated time.



Q8. How do you maintain our long-term business and relationship.
A:1. We maintain good quality and competitive prices to ensure the interests of our clients;
    2. We respect every customer as our friend Ds we do business with sincerity and make friends with them no matter where they come from

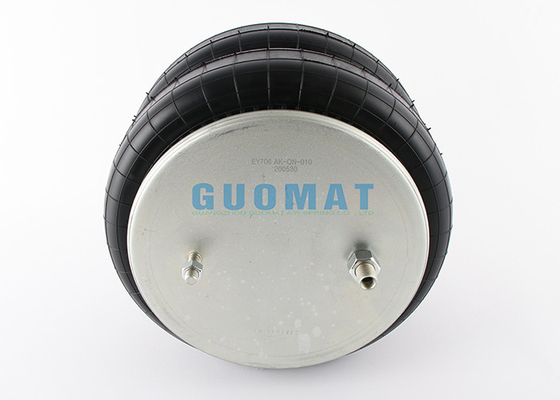

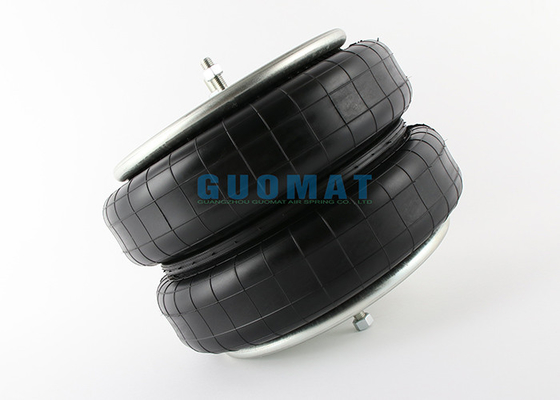

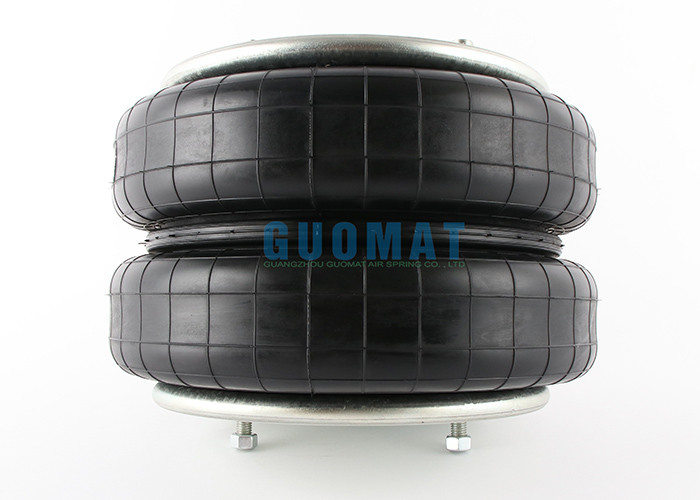

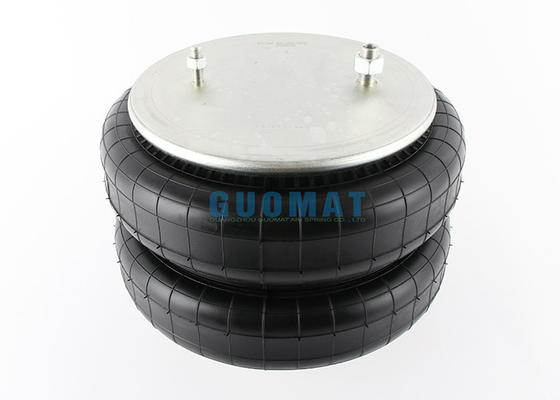

Product Pictures

W01-358-7557 Firestone Air Spring Kits Goodyear Convoluted Type Suspension Air Bags 2B14-383 0W01-358-7557 Firestone Air Spring Kits Goodyear Convoluted Type Suspension Air Bags 2B14-383 1
