| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B6910 |
| Price: | $59.9-69.9/pc |
|---|---|
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Minimum Order Quantity: | 10 Pieces | Packaging Details: | Carton Box |
|---|---|---|---|
| Material: | Rubber+Metal | Warranty: | 12 Months |
| Usage: | For Truck,For Industrial | Service Offered: | OEM |
| Operation: | Gas-filled | Sample: | Available |
| High Light: | Universal Double Convoluted Air Spring,W01-358-6910 Double Convoluted Air Spring |
||

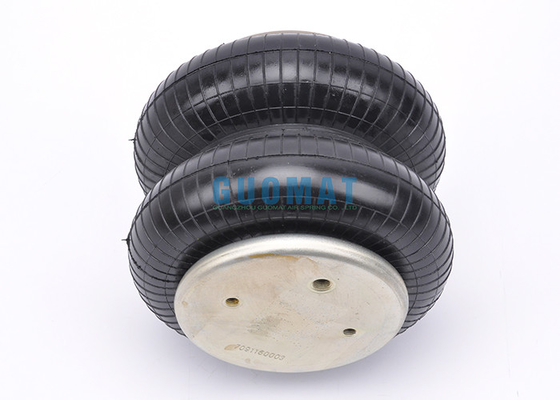

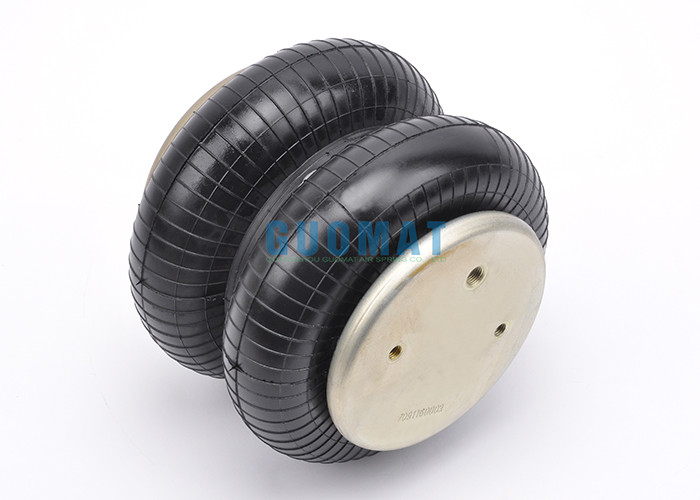

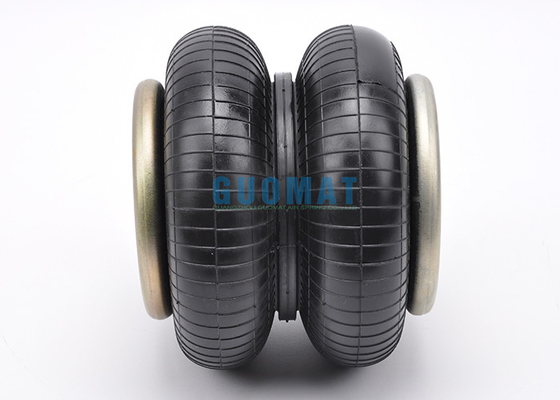

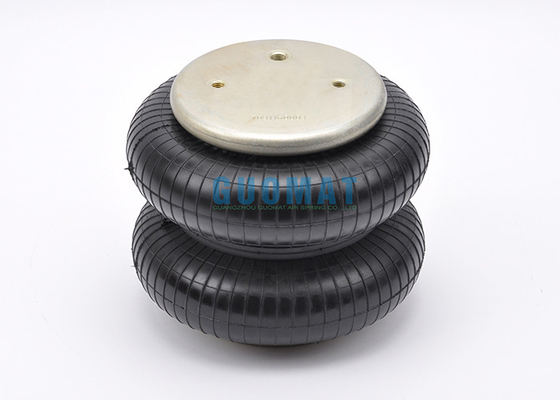

Universal Double Convoluted Air Spring W01-358-6910 Firestone Pickup Truck Air Bags
Product Description
|
Cross references |
|||
|
Firestone |
W01-358-6910 |
Contitech |
FD 200-19 320 |
|
Goodyear |
2B9-200/202/216 |
Goodyear |
578423202 |
|
Triangle |
6325/4320 |
Taurus |
KF218-6910 |
|
Original parts |
|||
|
Brake & Wheel |
M3501 |
Dina |
A812719/AZ812719 |
|
Dayton |
3546910 |
Leland |
Sc2011 |
|
Navistar |
554783C1 |
Hendrickson |
S8768/458433 |
|
Ridewell |
1003586910C |
SAF Holland |
57006910 |
|
Trailers De |
133128 |
Tuthill |
1371 |
|
Watson&Chalin |
AS-0001/AS-0156G |
||
2B6910 Air Rubber Spring Technical Data
Cover Plate
Top Cover Plate Diameter:160mm
Bottom Cover Plate Diameter:160mm
Air Inlet / Gas Hole/Air Hole
Air Inlet: 1/4 NPTF
Blind Nut
Screw Center Distance of Top Cover Plate:89mm
Screw Center Distance of Bottom Cover Plate:189mm
Screw and Gas Hole Distance Of Top Cover Plate:44.5mm
Top Cover Plate Screw (Nut) Tooth:2X3/8-16UNC
Bottom Cover Plate Screw (Nut) Tooth:2X3/8-16UNC
Rubber Bellow
Rubber Bellow Diameter:224mm(max 251mm)
The Working Stroke:MAX 260mm to MIN 75mm
Maximum Height:260mm
Minimum Height:75mm
Compression Height:185mm
About Us
The production process of our company's products is completed under the control of ISO/TS16949:2002 quality system. Through advanced production equipment and testing equipment for production and testing control, professional technical personnel and management, our company's product life has reached more than 4 million times, in comparison with other product experiments, the appearance and performance of our products have been meet customer requirements.
♦Bus with air spring(Airbag)
♦Truck air spring(Airbag)
♦Cab air spring(Airbag)
♦Passenger car air spring(Airbag)
♦Industrial equipment for air spring(Airbag)
Features of industrial air springs
♦The products features low cost, wide use and easy operation.
♦ It achieves long service life, and requires no maintenance and lubrication.
♦This product allows for flexible expansion and contraction, strong loading capacity, convenient design, and simple structure.
♦ It comes with no friction and soft medium.
Related Products
|
GUOMAT |
CONTITECH |
FRIESTONE |
GOODYEAR |
|
2B5263 |
|
W01-358-7897 |
|
|
2B5271 |
FD 200-25 453 |
W01-358-6927 |
2B9-218 |
|
2B5272 |
FD 200-25 426 |
W01-358-6943 |
2B9-250 |
|
2B5273 |
FD 200-25 454 |
W01-358-6944 |
2B9-252 |
|
2B5274 |
FD 200-25 427 |
W01-358-6945 |
2B9-253 |
|
2B5275 |
FD 200-25 463 |
W01-358-6946 |
2B9-254 |
|
2B5276 |
FD 200-25 428 |
W01-358-6947 |
2B9-255 |
|
2B5277 |
FD 200-25 429 |
W01-358-6948 |
2B9-251 |
|
2B5278 |
FD 200-25 507 |
W01-358-6960 |
|
|
2B5279 |
FD 200-25 511 |
W01-358-6962 |
|
|
2B5280 |
FD 200-25 717 |
W01-358- |
|
|
2B5330 |
FD 330-22 363 |
W01-358-7180 |
2B12-425 |
|
2B5331 |
FD 330-22 472 |
W01-358-7181 |
2B12-411 |
|
2B5332 |
FD 330-22 471 |
W01-358-7183 |
2B12-412 |
Real picture of industrial equipment air spring
