| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B7070 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Name: | Air Shock ,Air Spring,AirBags | Material: | Rubber+Metal |
|---|---|---|---|
| Warranty: | 12 Months | Gas Hole: | G1/4 |
| Threaded Hole: | M18X1.25 | OEM NO.: | FD70-13 |
| Function: | Reduce Vibration | Min. Pressure: | 0 Bar |
| High Light: | Industrial Double Convolution Air Spring,FD70-13 Double Convolution Air Spring |
||
Contitech FD70-13 CI G1/4 Double Convolution Air Spring Air Bellow For Industrial Equipment
Product Description
Also Known As : FD 70-13 CI G1/4 CA
Comparable to : W01-M58-6105
Continental Contitech FD 70-13
Continental Contitech FD70-13
Continental Contitech FD 70-13 CI
Continental Contitech FD 70-13 CI G1/4
Continental Contitech FD 70-13 G1/4 CI
Continental Contitech FD 70-13 CI G1/4 M8
Continental Contitech FD 70-13 CI G1/4 M8 CA
Firestone Part Number W01-M58-6105
Firestone Part Number W01M586105
Firestone Part Number W01 M58 6105
Firestone Part Number WO1-M58-6105
Firestone Part Number WO1M586105
Firestone Part Number WO1 M58 6105
2B7070 Air Shock Technical Parameter
Cover Plate Diameter : 105mm
Maximum Outer Diameter : 146mm
The Working Stroke : 162mm
Air Inlet Type : Metric
Air Inlet : G1/4
Series : C
Min Temperature : -40 °F
Max Temperature : +70 °F
Bellows Type : Double Convoluted
Threaded Hole : M8X1.25
Threaded Hole Center Distance : 44.5mm
Vibration Isolation – Dynamic Characteristic Values
|
Pressure P ［bar］ |
3 |
4 |
5 |
6 |
7 |
8 |
Volume V ［I］ |
|
Force (Load) ［KN］ |
1.9 |
2.5 |
3.2 |
3.8 |
4.5 |
5.2 |
1.8 |
|
Spring Rate ［N/cm］ |
46 |
59.5 |
73 |
86 |
99.5 |
112.5 |
|
|
Natural Frequency［Hz］ |
2.5 |
2.5 |
2.4 |
2.4 |
2.4 |
2.4 |
Pneumatic Application – Static Characteristic Values
|
Pressure P ［bar］ |
3 |
4 |
5 |
6 |
7 |
8 |
Volume V ［I］ |
|
|
Height H ［mm］ |
180 |
1.6 |
2.3 |
2.9 |
3.5 |
4.1 |
4.7 |
1.8 |
|
160 |
2.4 |
3.15 |
3.9 |
4.7 |
5.6 |
6.4 |
1.6 |
|
|
140 |
2.9 |
3.88 |
4.8 |
5.8 |
6.8 |
7.8 |
1.5 |
|
|
120 |
3.4 |
4.5 |
5.7 |
6.8 |
7.9 |
9.2 |
1.3 |
|
|
100 |
3.9 |
5.23 |
6.5 |
7.8 |
9.1 |
10.4 |
1.1 |
|
|
80 |
4.3 |
5.7 |
7.1 |
8.5 |
10 |
11.4 |
0.7 |
|
How to choose the right air spring?
1. My air spring is damaged and needs to be replaced.
You can send us the model and brand of the original air spring. Different brands and models are different, but we will produce interchangeable air springs.
2. In order to improve the production equipment and modify the additional rubber air spring, the steps of selecting the rubber air spring are divided into the following steps:
1. It is necessary to evaluate the production site to see if it has the conditions for modification. First, it is necessary to ensure enough space for use, including the position width and installation height. In addition, the greater the load, the larger the reserved position.
2. Determine the load size of the air spring required.

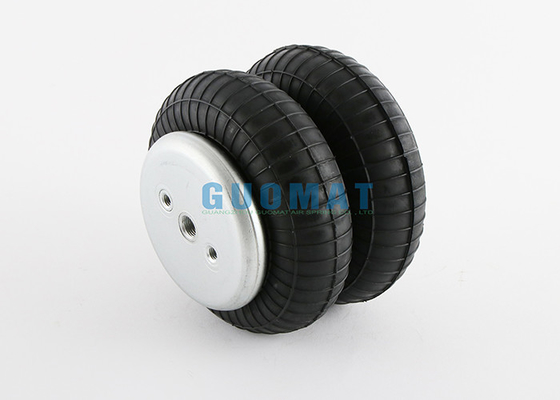

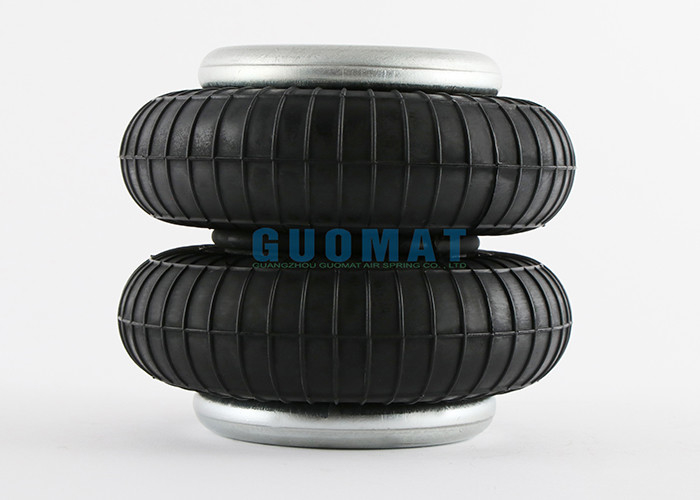

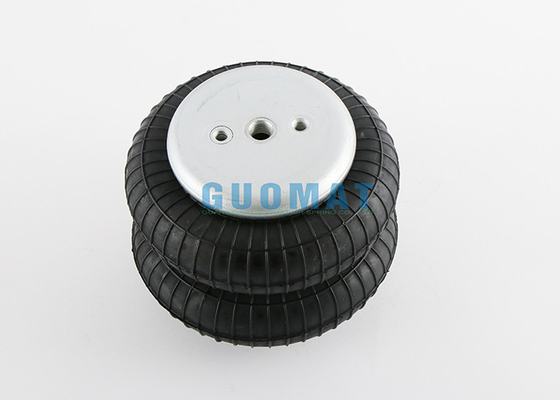

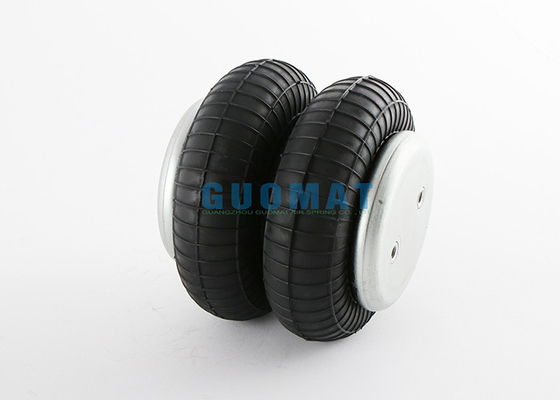

Product Images
