Place of Origin: | GuangDong, China |
Brand Name: | GUOMAT |
Certification: | ISO/TS16949:2009 |
Model Number: | 2B545 |
Minimum Order Quantity: | 6pcs |
---|---|
Price: | $49.9-59.9/pc |
Packaging Details: | Strong Carton Box Or As Customers Need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union, L/C |
Supply Ability: | 1000pcs/week |
Name: | Double Convoluted Air Spring | Warranty: | 12 Months |
---|---|---|---|
Material: | Metal+Rubber | Color: | Black |
GUOMAT NO.: | 2B545 | Spring Type: | With Bracket |
MOQ: | 10 Pieces | Function: | Reduce Vibration |
High Light: | 2B545 Convoluted Air Spring,Lift Axle Convoluted Air Spring,2B545 Double Convoluted Air Spring |

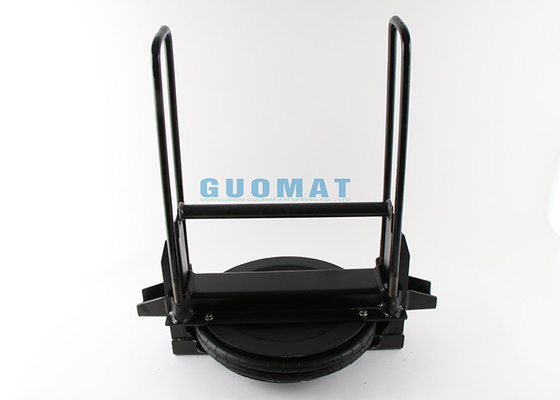

GUOMAT 2B545 Presses Convoluted Air Spring For Trailer Part Lift Axle
Product Description
Part Number |
2B545 |
Product Name |
Convoluted Air Spring Presses |
Working Temperature |
-40℃ bis + 70℃ |
Failure Testing |
≥3 Millions |
Warranty |
1 Year |
Material |
Rubber/Steel |
Truck and Trailer Air Spring
An air spring is a carefully designed flexible part of rubber and cord that contains a volume of compressed air. The air spring itself does not provide force and support load, it is completed by the compressed air column. The air spring is also equipped with a metal end seal plate, and the standard double wire mesh layer is composed of four layers.
•The inner layer which actually contains the air.
•The first layer of fabric reinforced rubber applied at a specific angle.
•The second layer of fabric reinforced rubber which is laid to a specific angle to the first layer.
•The cover to protect the bias fabric plies.
Trucks and trailers with air springs have far fewer "wear and tear" failures than trucks with leaf springs. This means longer cabs and cars, lower operating costs, less downtime and more.
In addition to that, the truck rides better, which is also important for a truck full of cargo. Trucks with air springs have less cargo damage than trucks with traditional leaf springs, improving economics. After installing the air spring, the driver is more comfortable to drive, more efficient, and less prone to fatigue.
GUOMAT Double Convoluted Rubber Air Spring
GUOMAT NO. |
OEM NO. |
Gas Hole |
Rubber Bellow(mm) |
The Stroke(mm) |
2B4060 |
FD 40-10 |
G1/8 |
125 |
145 |
2B7070 |
W01-095-0111 |
G1/4 |
146 |
162 |
2B12020 |
W01-358-7325 |
1/4NPTF |
203 |
75-230 |
2B8X4 |
W01-358-7325 |
M12X1.5 |
189 |
177 |
2B5020 |
FD 120-17 |
G3/4 |
215 |
75-230 |
2B5020D |
W01-M58-6353 |
G1/4 |
215 |
75-230 |
2B5235 |
W01-M58-7894 |
ZG1/2 |
224 |
210 |
2B6926 |
W01-358-6926 |
1/4NPTF |
224 |
75-260 |
2B6910P34 |
FD200-19 |
G3/4 |
224 |
75-260 |
2B6910 |
W01-358-6910 |
1/4NPTF |
224 |
75-260 |
2B6902 |
W01-358-6902 |
1/4BSP |
224 |
75-260 |
2B6927 |
FD 200-25 453 |
1/4NPT |
262 |
81-325 |
2B6943 |
FD 200-25 426 |
1/4NPTF |
262 |
79-325 |
2B6946 |
FD 200-25 463 |
1/4NPTF |
262 |
95-325 |
2B6945 |
FD 200-25 427 |
1/4NPTF |
262 |
79-325 |
2B7679 |
W01-M58-7679 |
1/4NPTF |
262 |
240 |
2B6948 |
W01-358-6948 |
1/4NPTF |
232.5 |
235 |
2B6951 |
W01-358-6951 |
1/4NPTF |
232.5 |
240 |
2B6952 |
FD 200-25 |
1/4NPTF |
232.5 |
240 |
2B6944 |
FD 220-25 454 |
|
262 |
95-325 |
2B6891 |
FD 200-19 |
M14X1.5 |
232.5 |
232 |
2B6330 |
FD 330-22 363 |
1/4NPTF |
325 |
81-305 |
2B6330A |
W01-358-0226 |
G1/2 |
325 |
81-305 |
2B12X2 |
FD 412-18 |
G1/2 |
300 |
186 |
2B7400 |
FD 330-22 313 |
G1/4 |
325 |
81-305 |
2B7405 |
W01-358-7405 |
|
325 |
81-305 |
2B7406 |
W01-358-7406 |
1/4NPT |
325 |
104-305 |
2B7545 |
W01-358-7424 |
1/4NPT |
298 |
81-305 |
2B7550 |
W01-358-7550 |
|
343 |
104-363 |
2B7555 |
FD 331-26 480 |
|
343 |
104-363 |
2B53022 |
W01-358-7136 |
Rc1 1/4 |
385 |
90-300 |
2B5383 |
W01-358-7557 |
1/4NPT |
353 |
104-391 |
2B53035 |
FD530-35 530 |
3/4NPT |
406 |
104-391 |

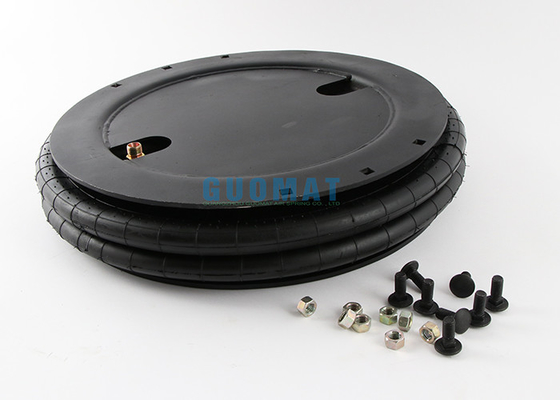

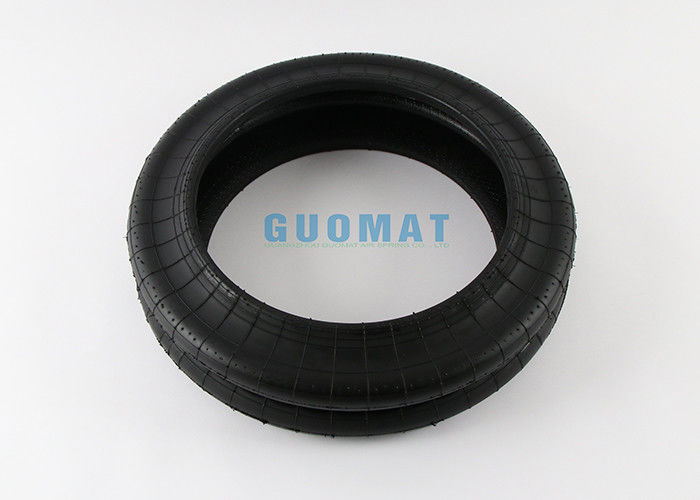

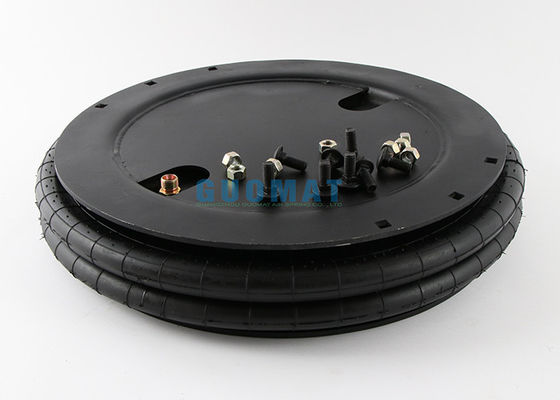

Product Images
