| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B6910 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Bellow+Metal Cover Plate | Warranty: | 12 Months |
|---|---|---|---|
| Function: | Reduce Vibration | Min. Pressure: | 0 Bar |
| Cover Plate Dia.: | 160mm | Package: | Standard Packing Or Customized |
| The Stroke: | 75-260 Mm | Goodyear: | 2B9-200 |
W01-358-6910 Firestone Double Convoluted Air Bellow FD 200-19 320 Contitech Airide Air Spring
Product Description
FIRESTONE W01-358-6910
FIRESTONE W01 358 6910
FIRESTONE W013586910
Firestone Part Number w01-358-6910
|
Brake&Wheel |
M3510 |
Dina |
A812719 |
|
Dina |
AZ812719 |
Dayton |
3546910 |
|
Leland |
Sc2011 |
Navistar |
554783C1 |
|
Hendrickson |
S8768 |
Hendrickson |
458433 |
|
Ridewell |
1003586910C |
SAF Holland |
57006910 |
|
Trailers De |
133128 |
Tuthill |
1371 |
|
Watson&Chalin |
AS-0001 |
Watson&Chalin |
AS-0156G |
Guomat 2B6910 Technical Data
Top Cover Plate Diameter: 160mm
Bottom Cover Plate Diameter: 160mm
Air Hole: 1/4NPTF
Top Cover Plate Threaded Hole: 2X3/8-16UNC
Bottom Cover Plate Threaded Hole: 2X3/8-16UNC
The Distance Between the Threaded Hole and Air Hole of the Top Cover Plate: 44.5mm
The Distance Between the Threaded Hole of Top Cover Plate: 89mm
The Distance Between the Threaded Hole of Bottom Cover Plate: 89mm
Guomat 2B6910 is a double convoluted air spring made of imported natural rubber. Its carrying range is 50-2500kg and has excellent carrying capacity. The use of hyperbolic industrial springs in industrial machinery and equipment can effectively improve the vibration caused by the operation of machinery and equipment due to its own weight, and improve the operating efficiency of the machine.
The double convoluted air spring is a curved air bag fitted with rubber mesh. The two ends of the airbag need to be connected with two cover plates to form two compressed air chambers. The rubber and mesh cables themselves do not provide the bearing capacity of the load, but are done by the compressed air inflated into the air bag.
Guomat Other Related Convoluted Air Spring
|
Guomat Number |
Bellow Number |
Firestone Number |
Contitech Number |
Working Stroke |
|
2B7897 |
2B 9X2 |
W01-358-7897 |
|
79mm~274mm |
|
2B6886 |
2B 9X2 |
W01-358-6886 |
FD 200-22 706 |
79mm~274mm |
|
2B6883 |
2B 9X2 |
W01-358-6883 |
FD 200-22 510 |
95mm~274mm |
|
2B12017 |
2B 5020 |
|
FD 120-17 |
75mm~230mm |
|
2B6353 |
2B 5020 |
W01-M58-6353 |
FD 120-17 |
75mm~230mm |
|
2B7013 |
2B 5013 |
|
FD 70-13 |
162mm |
|
2B40-10 |
2B 40-10 |
|
FD 40-10 |
145mm |
|
2B7325 |
2B 8X2 |
W01-358-7325 |
FD 120-17 509 |
177mm |
|
2B7781 |
2B 383 |
W01-358-7781 |
FD 530-35 545 |
104mm~391mm |
|
2B7557 |
2B 383 |
W01-358-7557 |
FD 530-35 530 |
104mm~391mm |
|
2B7781 |
2B 360 |
W01-358-7781 |
FD 530-35 545 |
90mm~300mm |
|
2B7555 |
2B 331 |
W01-358-7555 |
FD 331-26 480 |
104mm~363mm |
|
2B7550 |
2B 331 |
W01-358-7550 |
FD 331-26-541 |
104mm~363mm |
|
2B7472 |
2B 331 |
w01-358-7472 |
FD 330-30-371 |
79mm~363mm |
|
2B7136 |
2B 350 |
W01-358-7136 |
FD 530-22 321 |
220mm |
|
2B7180 |
2B 330 |
W01-358-7180 |
FD 330-22 363 |
75mm~290mm |
|
2B7437 |
2B 330 |
W01-358-7437 |
FD330-22 334 |
104mm~305mm |
|
2B7429 |
2B 330 |
W01-358-7429 |
FD 330-22 343 |
81mm~305mm |
|
2B7406 |
2B 330 |
W01-358-7406 |
FD 330-22 365 |
104mm~305mm |

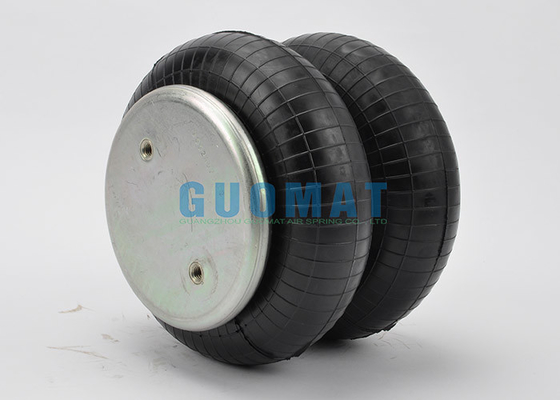

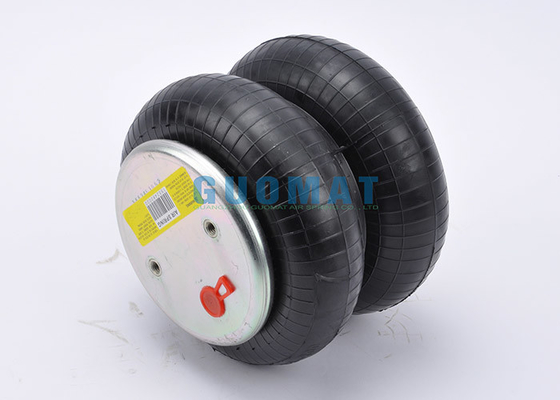

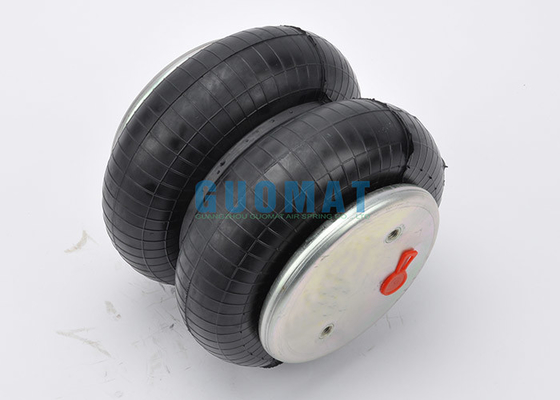

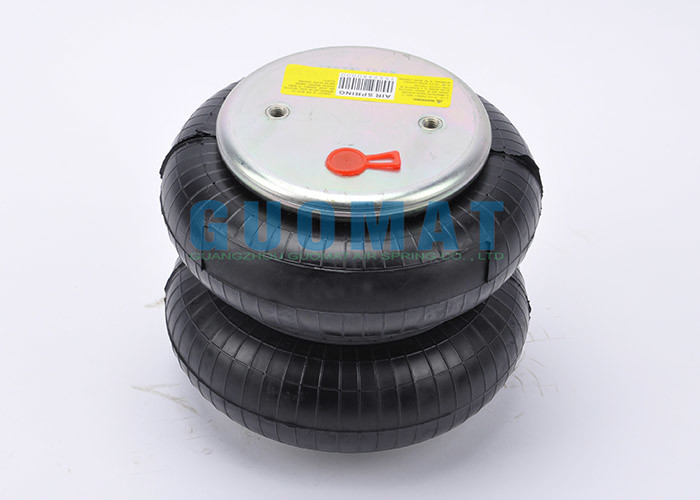

Product Images
