| Place of Origin: | GuangDong, China |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 360306H-3 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $79.9-89.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Brand Name: | GUOMAT | Model No.: | 360306H-3 |
|---|---|---|---|
| Bead Ring: | Flange Ring | End Plate: | Stainless Steel |
| Material: | Natural Rubber | Warranty: | 12 Months |
| Effective Diameter: | 280mm | Qty Of Hole On Flange Ring: | 16 |
| High Light: | Triple Convoluted Industrial Air Spring,360306H-3 Industrial Air Spring |
||
360306H-3 Triple Convoluted Industrial Rubber Air Spring Plate Dia.347mm Air Bag With Flange
Product Description
|
Product Name |
Industrial Air Spring |
|
Description |
Triple Convoluted Air Spring Actuator |
|
MOQ |
10 PCS |
|
Warranty |
12 Months |
|
Material |
Rubber+Steel |
|
Package |
Carton/Cartons |
|
Payment |
L/C;T/T/Western Union;PayPal |
|
Port of shipment |
NINGBO, SHANGHAI, TIANJIN, GUANGZHOU, SHENZHEN |
|
Shippment |
Bye sea, By air, By DHL Fedex |
Technical Data
Top Cover Plate Screw (Nut) Tooth : 16×M10
Bottom Cover Plate Screw (Nut) Tooth :16×M10
Center Distance Between Screw: Ø309mm
Gas Hole / Air inlet : G1/2
Top Cover Plate Diameter: Ø347mm
Bottom Cover Plate Diameter: Ø347mm
Rubber Bellows Natural Diameter : Ø380mm
Rubber Bellows Natural Height : Ø306 mm
Air Spring Technical Performance Parameter Table
|
Bearing Capacity |
Inflation Pressure |
0.2Mpa |
0.3Mpa |
0.4Mpa |
0.5Mpa |
0.6Mpa |
0.7Mpa |
0.8Mpa |
|
|
Installation Height |
|||||||||
|
115 |
(mm) |
1915 |
2720 |
3632 |
4633 |
5604 |
6560 |
7545 |
|
|
173 |
(mm) |
1654 |
2527 |
3374 |
4235 |
5146 |
6023 |
6909 |
|
|
231 |
(mm) |
1425 |
2140 |
2961 |
3697 |
4496 |
5313 |
6071 |
|
|
289 |
(mm) |
1295 |
1981 |
2640 |
3374 |
4057 |
4746 |
5507 |
|
|
306 |
(mm) |
1211 |
1840 |
2514 |
3136 |
3825 |
4491 |
5163 |
|
|
347 |
(mm) |
1058 |
1640 |
2225 |
2812 |
3430 |
4074 |
4702 |
|
|
360 |
(mm) |
1014 |
1470 |
2139 |
2716 |
3286 |
3877 |
4500 |
|
|
390 |
(mm) |
861 |
1336 |
1840 |
2342 |
2871 |
3405 |
3956 |
|
|
Stiffness and Frequency at Design Height |
Vertical Stiffness |
(Kg/cm) |
147 |
201 |
260 |
280 |
300 |
327 |
371 |
|
Natural Frequency |
Hz |
1.74 |
1.65 |
1.61 |
1.5 |
1.4 |
1.35 |
1.34 |
|
|
cpm |
104 |
99 |
97 |
90 |
84 |
81 |
80 |
||
Self-sealing ability, no other sealing device required
►Girdle
Steel welded parts or rubber-coated steel wire molded
►Flange
Made of aluminum alloy, high-strength nylon or steel
►Seal End Plate
The mating surface between the sealing end plate (not included in the assembly) and the product should be flat and smooth, and should have sufficient strength to not bend and deform under load

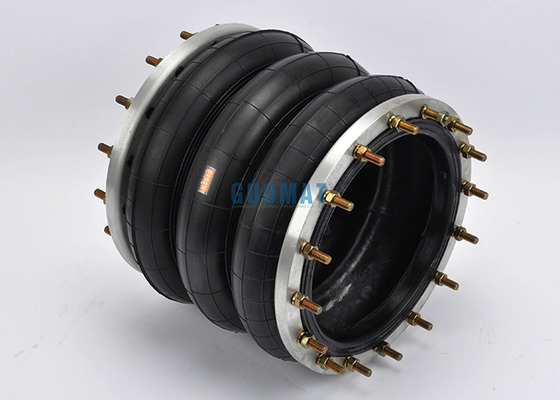

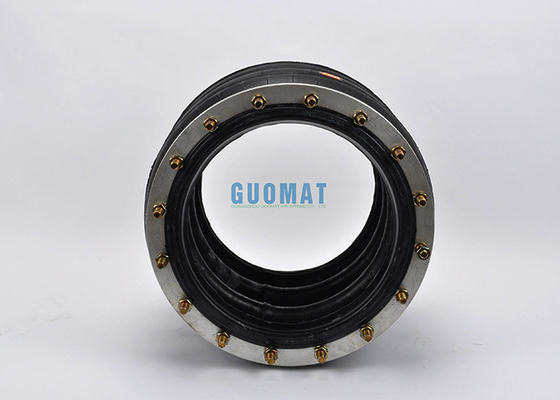

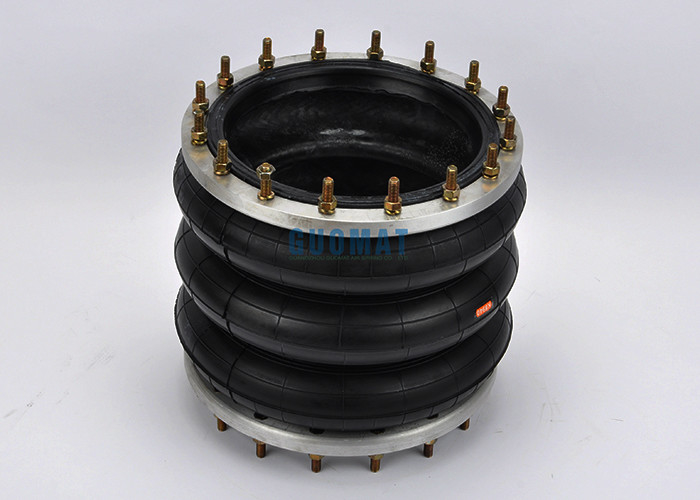

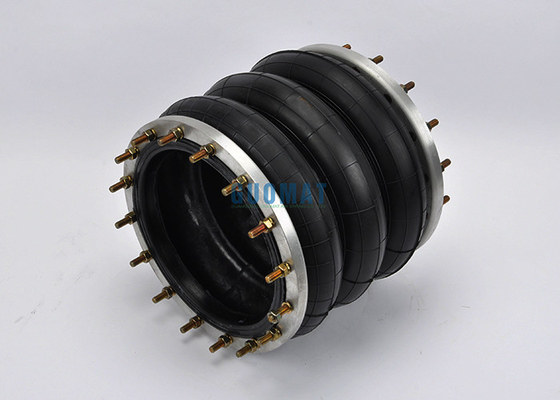

The Real Pictures of 360306H-3
