| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B6X6 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Bellow And Aluminum Cover | Warranty: | 1 Year Warranty |
|---|---|---|---|
| MOQ: | 10 Pieces | Spring Type: | Air Filled |
| Package: | Standard Packing Or Customized | Application: | Car Suspension Modification |
| Number Of Convolution: | Two Convolution | OEM: | FD 70-13 |
| High Light: | 2B6X6 Double Convoluted Air Spring,FD70-13 Double Convoluted Air Spring |
||
GUOMAT NO. 2B6X6 Double Convoluted Air Spring FD70-13 Contitech Air Suspension Bag
Product Description
Manufacturer
Contitech
Part Number
FD70-13
Part Number
FD 70-13
GUOMAT Number
2B6X6
Spring Material
Rubber+Steel
Factory Warranty
1 Year Warranty
2B6X6 Air Bag Technical Data
|
Design Height |
152mm |
|
Deflection(Height Min) |
65mm |
|
Deflection(Height Max) |
175mm |
|
Working Stroke |
110mm |
|
Loading cap.at 3.0bar |
2.88kN |
|
Loading cap.at 7.0bar |
7.25kN |
The air spring is filled with compressed air in a sealed container, and uses the compressibility of the gas to realize its elastic effect. The air spring has excellent nonlinear elastic characteristics. After the height adjustment device is installed, the height of the vehicle body does not increase or decrease with the load And change, increased ride comfort. In addition to being used in mechanical equipment, air springs are most commonly used as automotive suspensions.
1.Guomat air spring has excellent nonlinear characteristics, which can effectively reduce vibration and prevent shock.
2. The air spring uses air, which is easy to implement and control.
3. The air spring can absorb high-frequency vibration and effectively insulate the sound
Air spring should pay attention to in the application
1. It is forbidden to use the air spring beyond the recommended safe extension height.
2. In order to prolong the service life of the air spring, do not use the air spring below the minimum compression height.
3. Do not use the air spring under the pressure exceeding 0.7Mpa.
4. Do not use the air spring in a twisted state.
GUOMAT Double Convoluted Air Spring
|
FD 200-19 504 |
FD 200-19 |
FD 200-19 724 |
FD 200-19 539 |
|
FD 200-19 505 |
FD 200-19 319 |
FD 200-19 310 |
FD 200-19 315 |
|
FD 200-19 362 |
FD 200-19 320 |
FD 200-19 452 |
FD 200-19 499 |
|
FD 200-19 450 |
FD 200-19 448 |
FD 200-19 506 |
FD 200-19 510 |
|
FD 200-19 524 |
FD 200-19 P04 |
FD 200-19 315 |
FD 120-20 |
|
FD 120-20 509 |
FD 120-25 |
FD 200-25 427 |
FD 200-25 454 |
|
FD 200-25 |
FD 200-19 |
FD 200-25 453 |
FD 200-25 426 |
|
FD 200-25 427 |
FD 200-25 463 |
FD 200-25 429 |
FD 200-25 507 |
|
FD 200-25 511 |
FD 200-25 717 |
FD 330-22 363 |
FD 330-22 472 |
|
FD 330-25 471 |
FD 330-22 500 |
FD 330-22 313 |
FD 330-22 337 |
|
FD 330-22 318 |
FD 330-22 346 |
FD 330-22 364 |
FD 330-22 365 |
|
FD 330-22 366 |
FD 330-22 367 |
FD 330-22 331 |
FD 330-22 368 |
|
FD 330-22 327 |
FD 330-22 343 |
FD 330-22 334 |
FD 330-22 363 |
|
FD 530-22 321 |
FD 330-30-371 |
FD 331-26-514 |
FD 331-26-541 |
|
FD 331-26 480 |
FD 530-35 545 |
FD 530-35 543 |
FD 530-35 530 |
|
FD 530-35 545 |
FD 530-35 720 |
FD 120-17 509 |
FD 40-10 |
|
FD 40-10 |
FD 70-13 |
FD 120-17 |
FD 200-22 510 |
|
FD 200-22 706 |

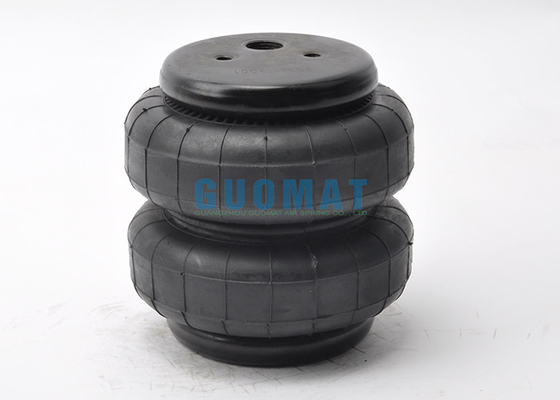

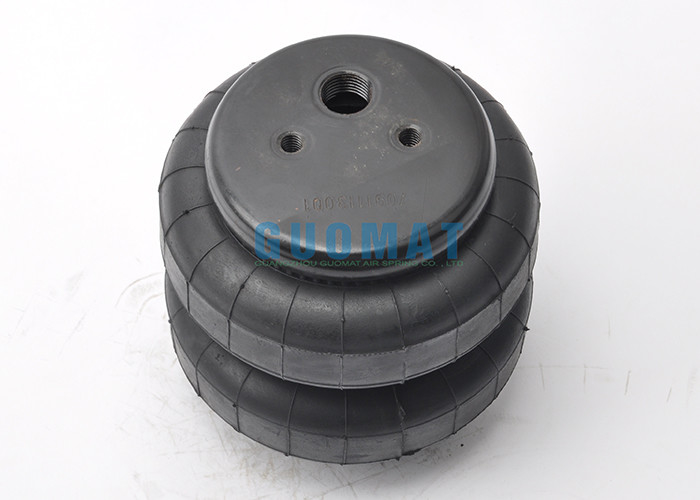

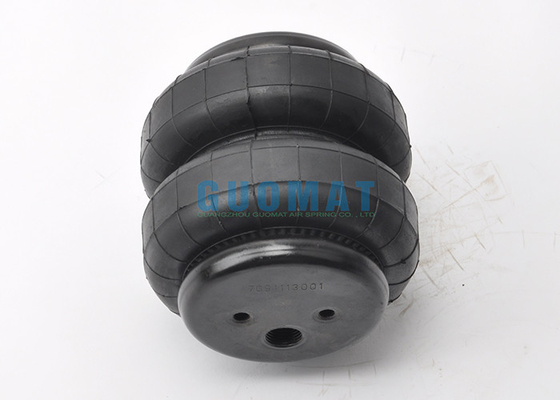

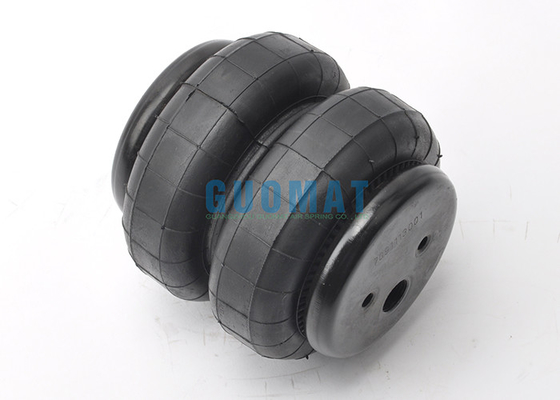

Real Pictures
