| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B53014-3/4 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Item Name: | Bellows Style Industrial Air Spring | Warranty: | 12 Months |
|---|---|---|---|
| Material: | Metal+Rubber | Air Hole: | G3/4 |
| Air Suspension: | Contitech Air Spring | Color: | Black |
| Rubber Bellow Dia.: | 406mm | Bellows Type: | Single Convoluted |
| High Light: | FS530-14 Single Convoluted Air Spring,Industrial Single Convoluted Air Spring,Contitech Single Convoluted Air Spring |
||
Single Convoluted Air Spring Contitech FS530-14 Industrial Air Rubber Bag 3/4 Air Fitting
FS 530-14 3/4 Technical Data
Top Cover Plate Diameter:Ø289mm
Gas Hole / Air inlet:3/4NPTF
Screw Center Distance of Top Cover Plate:158.8mm
Top Cover Plate Screw (Nut) Tooth:4X3/8-16UNC
Bottom Cover Plate Diameter:Ø289mm
Screw Center Distance of Bottom Cover Plate:158.8mm
Bottom Cover Plate Screw(Nut)Tooth:4X3/8-16UNC
The Rubber Bellow MAX Diameter:406mm
The Working Stroke:81mm-160mm
OEM Number
GUOMAT Number: 1B53014-3/4
Contitech Number: FS530-14
Contitech Number: FS530-14 CI
Contitech Number: FS530-14 CI 3/4
Contitech Number: FS530-14 CI 3/4 NPT
Contitech Number: FS530-14 CI 3/4 NPT (OS)
Contitech Number: FS 530-14
Contitech Number: FS 530-14 CI
Contitech Number: FS 530-14 CI 3/4
Contitech Number: FS 530-14 CI 3/4 NPT
Contitech Number: FS 530-14 CI 3/4 NPT (OS)
We have two different kinds of air holes
1.1B53014-1/4
With clamped plates
G 3/4 air inlet
2.1B53014-3/4
With clamped plates
G 1/4 air inlet
Other Single Convoluted Air Spring
|
GUOMAT |
Gas Hole |
Cover Plate Dia. |
The Stroke |
|
1B4060 |
G1/8 |
90mm |
50mm-110mm |
|
1B7070 |
G1/4 |
105mm |
50mm-115mm |
|
1B5010 |
1/4NPTF |
115mm |
50mm-115mm |
|
1B1209 |
G3/4 |
135mm |
50mm-115mm |
|
1B6910-3/4 |
G3/4 |
160mm |
110mm |
|
1B6910 |
G1/4 |
160mm |
110mm |
|
1B8X4 |
1/4NPTF |
135mm |
50mm-140mm |
|
1B5330 |
1/4NPTF |
231mm |
55mm-160mm |
|
1B53013 |
1/4NPTF |
289mm |
68mm-140mm |
|
1B53013-3/4 |
3/4NPTF |
289mm |
68mm-140mm |
Contitech Part Number
FS 40-6 1/8 M8
FS 70-7
FS 120-9 3/4 M8
FS 120-9 1/4 M8
FS 200-10 3/4 M8
FS 200-10
FS 70-7 1/4 M8
FS 330-11 474
FS 330-11
FS 330-11 468
FS 330-14
FS 330-11 647
FS 120-10
FS40-6 1/8 M8
FS70-7
FS120-9 3/4 M8
FS120-9 1/4 M8
FS200-10 3/4 M8
FS200-10
FS70-7 1/4 M8
FS330-11 474
FS330-11
FS330-11 468
FS330-14
FS330-11 647
FS120-10

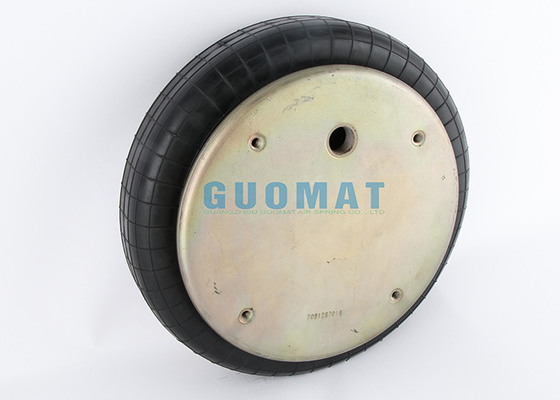

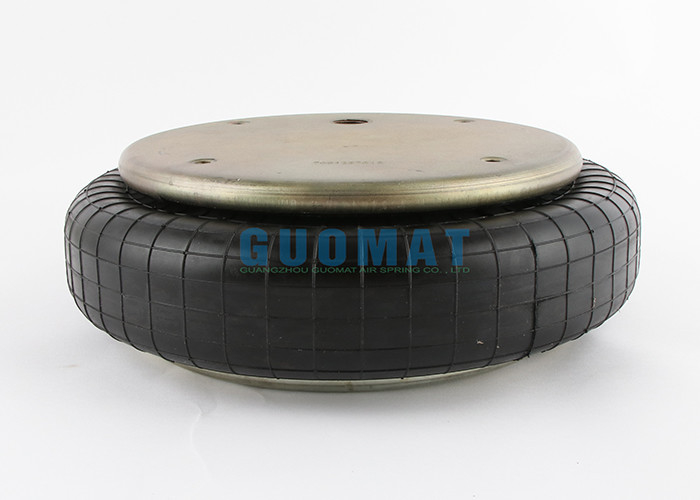

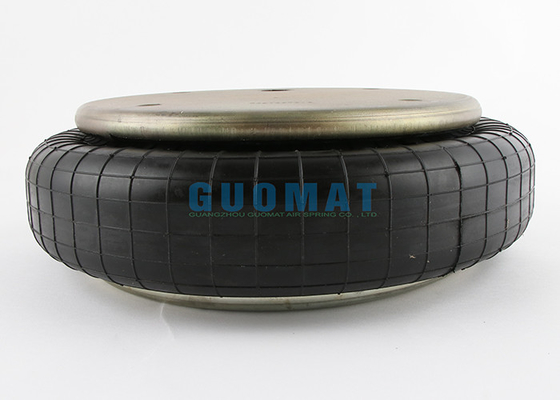

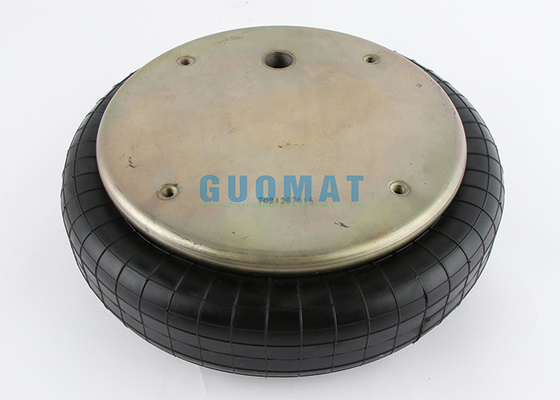

The Real Pictures of FS530-14 3/4
Company Profile
Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min’s drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.
