| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B5050 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Warranty: | 12 Months | Material: | Metal+Rubber |
|---|---|---|---|
| Color: | Black | Function: | Reduce Shock |
| Gas Hole: | G3/4 | Spring Type: | Single Convoluted Air Spring |
| Phoenix: | SP1B12 | Norgren: | PM/31091(81/4x1) |
| High Light: | Contitech FS200-10 Industrial Air Spring,PM/31091 Industrial Air Spring,Pneumatic Industrial Air Spring |
||
Contitech FS200-10 CI Single Industrial Air Spring PM/31091 Norgren Helper Springs Pneumatics
Product Description
|
Item |
Rubber Air Spring |
Model No. |
1B5050 |
|
Material |
Natural Rubber+High Quality Steel |
Warranty |
12 Months |
|
MOQ |
10 Pieces |
Color |
Black |
Technical Data
Gas Hole / Air Inlet: G3/4
Top Cover Plate Diameter: Ø160mm
Screw Center Distance of Top Cover Plate: 89mm
Distance Between Air Hole and Screw: 38mm
Top Cover Plate Screw (Nut) Tooth: 2XM8X1.25
Bottom Cover Plate Diameter: Ø160mm
Screw Center Distance of Bottom Cover Plate: 89mm
Bottom Cover Plate Screw(Nut)Tooth: 2XM8X1.25
The Rubber Bellow Diameter: 220mm
The Working Stroke: 110mm
OEM Number
Firestone Part Number
W01-M58-6374
W01 M58 6374
W01M586374
WO1-M58-6374
WO1 M58 6374
WO1M586371
Contitech Part Number
FS 200-10
FS200-10
FS 200-10 CI
FS200-10 CI
Phoenix Part Number SP1B12
Phoenix Part Number SP 1B 12
Dunlop(FR) Part Number 9"1/4x1
Dunlop(FR) Part Number S09101
Bosch Part Number 822419004
Festo Part Number EB-250-85
Norgren Part Number PM/31091
Norgren Part Number 8 1/4 X1
Gas-Filled Hole / Air Inlet: By filling air porosity for inflatable air spring
Bolt / Mounting Stud: Bolt is fixed as the installation of air spring in car or equipment
Upper Retainer: Upper Retainer to protect the whole air spring
Rubber Bumper (Optional): Prevent the air spring up and down on the plate and base plate collision
Flexible Bellows: The main part can lock the air and flexible activities up and down
Piston/ The base: Base is also carrying fluctuation pressure, sealed air and make skins can according to the fluctuation of the trajectory
Mounting Stud: fixed as the installation of air spring in car or equipment
GUOMAT Single Convoluted Rubber Air Spring
|
GUOMAT NO. |
OEM NO. |
Gas Hole |
Rubber Bellow(mm) |
The Stroke(mm) |
|
1B4060 |
FS 40-6 |
G1/8 |
145 |
50-110 |
|
1B7070 |
FS 70-7 |
G1/4 |
165 |
50-115 |
|
1B5010 |
W01-358-7731 |
1/4NPTF |
165 |
50-115 |
|
1B1209 |
W01-M58-6374 |
G3/4 |
220 |
110 |
|
1B8X4 |
W01-358-7564 |
1/4NPTF |
230 |
50-140 |
|
1B8580 |
W01-358-7598 |
|
240 |
60-180 |
|
1B6910 |
W01-M58-6374 |
G3/4 |
220 |
110 |
|
1B6910P01 |
W01-358-0118 |
G1/4 |
220 |
110 |
|
1B6910P02 |
W01-358-0118 |
1/4NPTF |
220 |
110 |
|
1B6910P03 |
W01-M58-6374 |
1/4NPTF |
220 |
110 |
|
1B9202 |
1B9-202 |
1/4-18NPTF |
222 |
60-160 |
|
1B5330 |
W01-358-7008 |
1/4NPTF |
325 |
55-160 |
|
1B53014 |
W01-358-7103 |
1/4NPTF |
406 |
81-160 |

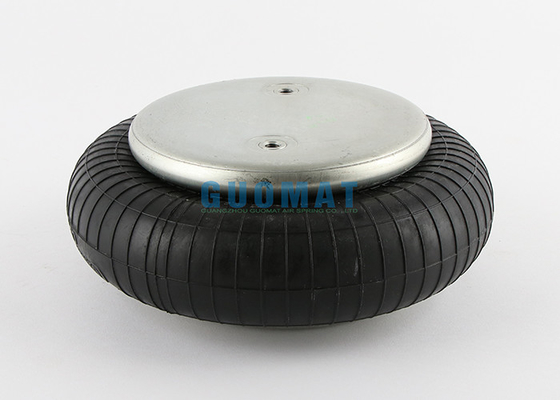

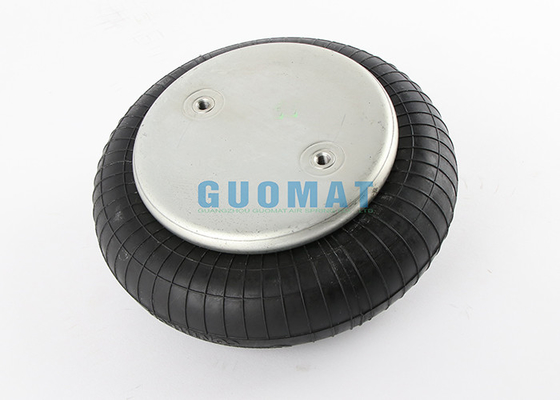

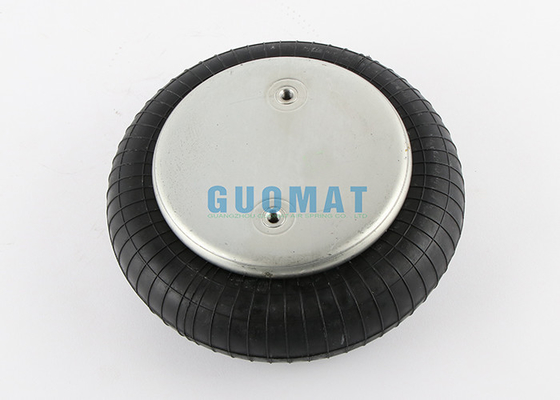

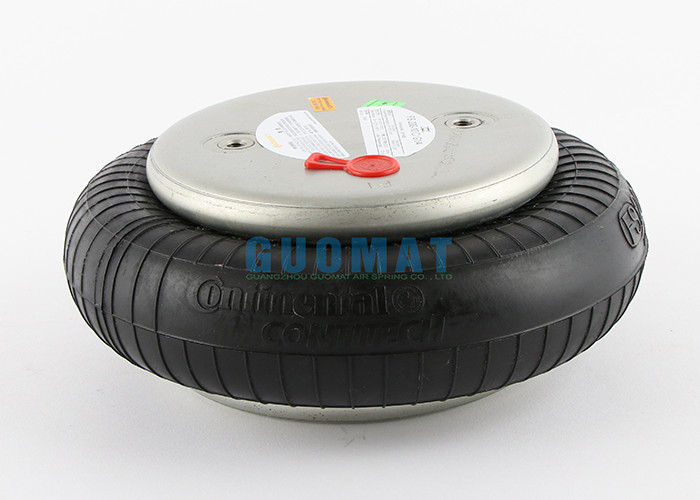

The Real Pictures
