| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B10X2 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Material: | Natural Rubber/Steel | Warranty: | 1 Year Warranty |
|---|---|---|---|
| Function: | Reduce Shock | With Flange: | Yes |
| Air Hole: | G1/2 | Packing Size: | 24*24*24(cm) |
| Sample: | Available | Number Of Convolutions: | 2 |
| High Light: | Double Convoluted Rubber Air Spring,FD210-22 Rubber Air Spring,Navigator Rubber Air Spring |
||
FD210-22 DS Air Bellow Navigator 10''X2 Norgren M/31102 Double Convoluted Rubber Air Spring
Product Description
GUOMAT: 2B10X2
ContiTech : FD 210- -22 1/2 M10
ContiTech : FD 210- -22 DS G1 / 2
ContiTech : FD 210--22 DS G1 / 2 M10
ContiTech : FD 210-22 DS G1 / 2 CR
ContiTech : FD 210- -22 DS CR G1 / 2
ContiTech : FD 210--22 DS / FD210-22DS / FD21022DS
Firestone: W01-R58-4058
Firestone: W01 R58 4058
Firestone: W01R584058
Firestone: WO1-R58-4058
Firestone: WO1 R58 4058
Firestone: WO1R584058
Firestone style:10 ”x2 / 10” x2 / 10x2
Goodyear: 2B10-2350
Goodyear: 2B 10-2350
Goodyear: 2B10 2350
Dunlop France: SP1538
Dunlop UK (Pneuride): PNP 30545 01 12 / PNP305450112
Norgren: M / 31102 / M 31102 / M31102
Nominal diameter (inch) x number of turns: 10 "x2 / 10" x2 / 10x2.
WEFORMA: WBZ-G 450 / WBZ-G450 / WBZG450
Springride:2B10-2350
Springride:2B 10-2350
Springride:2B10 2350
Springride bladder number: 578-92-3-2350
Springride bladder number: 5789232350
Springride bladder number: 578 92 3 2350
|
FIRESTONE |
W01-R58-4058 |
|
GOODYEAR |
2B10-2350 |
|
CONTITECH |
FD210-22 |
|
NORGREN |
M/31102 |
|
NORGREN |
10X2 |
|
DUNLOP |
SP1538 |
Contitech Double Convolution Bellows
|
Product Model |
Min.design height(mm) |
Max.dia (mm) |
Instalkation space required(mm) |
Max.recommended stroke (mm) |
Max.stroke (mm) |
Connection part variant |
Distance D (mm) |
Standard |
|
Air inlet |
||||||||
|
FD40-10CI |
70 |
145 |
160 |
95 |
100 |
1 |
20.0 |
G1/8 |
|
FD 70-13 CI |
72 |
165 |
180 |
108 |
128 |
2 |
44.5 |
G1/4 |
|
FD 110-15 CI |
72 |
203 |
215 |
123 |
156 |
2 |
70.0 |
G3/4 |
|
FD 120-17 CI |
75 |
215 |
230 |
130 |
155 |
2 |
70.0 |
G3/4 |
|
FD 120-20 CI |
77 |
218 |
235 |
153 |
193 |
2 |
70.0 |
G3/4 |
|
FD 200-19 CI |
75 |
250 |
265 |
165 |
200 |
3 |
89.0 |
G3/4 |
|
FD 200-22 CI |
77 |
255 |
265 |
183 |
218 |
3 |
89.0 |
G3/4 |
|
FD 200-25 CI |
77 |
260 |
275 |
223 |
248 |
3 |
89.0 |
G3/4 |
|
FD 330-22 CI |
75 |
325 |
340 |
190 |
230 |
3 |
157.5 |
G3/4 |
|
FD 330-30 CI |
77 |
340 |
355 |
223 |
283 |
3 |
157.5 |
G3/4 |
|
FD 530-22 CI |
77 |
385 |
400 |
193 |
233 |
3 |
158.8 |
G3/4 |
|
FD 530-30 CI |
77 |
400 |
415 |
223 |
273 |
4 |
158.8 |
G3/4 |
|
FD 530-35 CI |
77 |
405 |
420 |
253 |
313 |
4 |
158.8 |
G3/4 |
|
FD 960-22 CI |
95 |
444 |
490 |
185 |
225 |
5 |
114.3 |
G3/4 |
|
FD 1330-25 CI |
92 |
518 |
570 |
198 |
243 |
5 |
152.5 |
G3/4 |

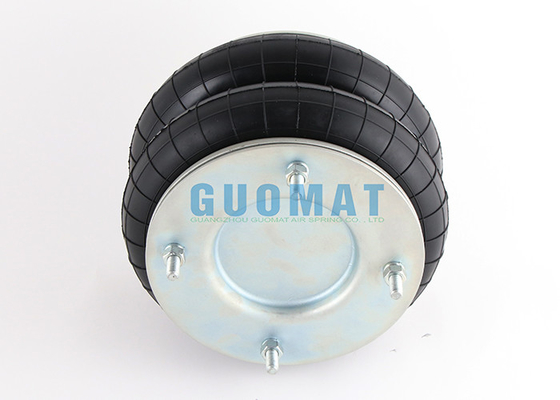

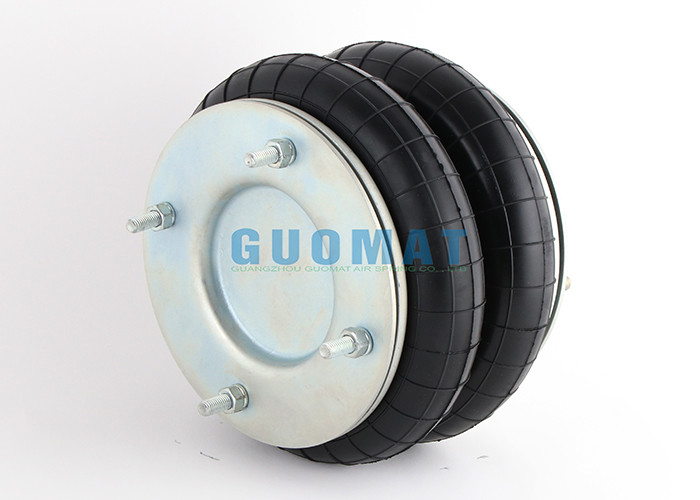

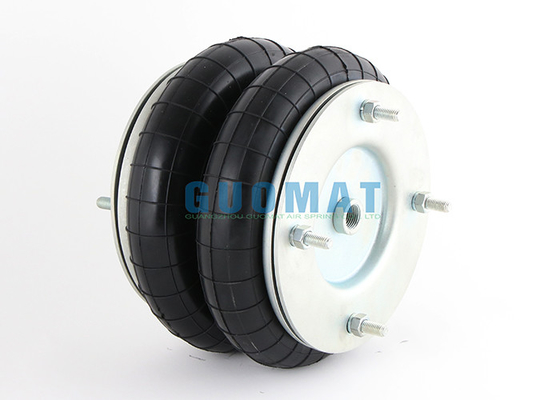

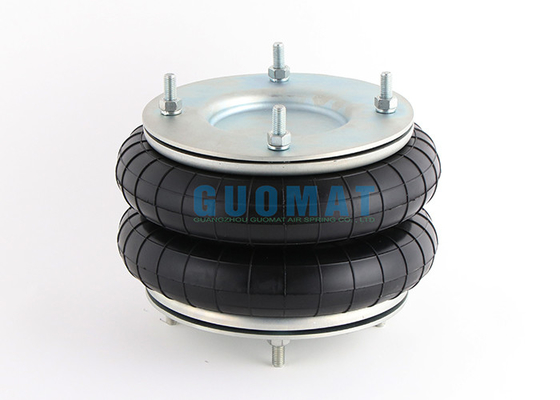

The Real Pictures
