| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B6927 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Main Material: | High Quality Rubber | Warranty: | 1 Year Warranty |
|---|---|---|---|
| MOQ: | 10 Pieces | Number Of Convolution: | 2 |
| Other Name: | Air Shock,Air Spring Bag | Packing Size: | 24*24*24(cm) |
| Type: | Gas-Filled | Cover Plate Dia.: | 160mm |
| High Light: | Double Convoluted Bellow Air Bags,Rubber Bellow Air Bags,W01-358-6927 Bellow Air Bags |
||
Double Convoluted Air Rubber Bellow Bags Cross Firestone W01-358-6927 Goodyear 2B9-218
Product Description
GUOMAT 2B9627
GUOMAT Bellows Number 2B 20F-2
Firestone Number W01-358-6927
Firestone Number W01 358 6927
Firestone Number W013586927
Contitech Number FD200-25 453
Contitech Number FD 200-25 453
Contitech Number FD 200-25453
Contitech Number FD200-25 453 1/4 NPT
Contitech Bellows Number 161336
Goodyear Number 2B9-218
Goodyear Number 2B 9-218
Goodyear Number 2B9 218
Goodyear Bellows Number 578-92-3-206
Goodyear Bellows Number 578923206
Goodyear Bellows Number 578 92 3 206
Triangle Number 6332
Triangle Number 4453
Reyco Number 12906-01
Leland Number Sc2072
SAF Holland Number 57006927
Tuthill Technology Number 1290601
Goodyear 2B9-218 Rubber Air Bag Technical Data
Top plate diameter: 160 mm
Diameter of the bottom cover: 160 mm
Air hole/air inlet: 1/4 NPT
Screw center distance between air hole and nut: 35 mm
Top plate screw (nut) teeth: 1X3/4-16UNF
The screw center distance of the top cover plate: In the middle
Screw (nut) teeth of the bottom cover plate: 2X3/8-16UNC
The screw center distance of the bottom cover plate: 89 mm
Maximum diameter of rubber bellows: 262 mm
Natural diameter of rubber bellows:240 mm
Working stroke: minimum 81 mm to maximum 325 mm
Maximum height: 325mm
Minimum height: 81 mm
Stroke height: 244mm
Double Convoluted Goodyear Air Spring
|
No. |
Goodyear Item |
|
1 |
2B9-607 Goodyear Air Spring(Air Balloon) |
|
2 |
2B9-606 Goodyear Air Spring(Air Balloon) |
|
3 |
2B9-288 Goodyear Air Spring(Air Balloon) |
|
4 |
2B9-270 Goodyear Air Spring(Air Balloon) |
|
5 |
2B9-266 Goodyear Air Spring(Air Balloon) |
|
6 |
2B9-265 Goodyear Air Spring(Air Balloon) |
|
7 |
2B9-255 Goodyear Air Spring(Air Balloon) |
|
8 |
2B9-254 Goodyear Air Spring(Air Balloon) |
|
9 |
2B9-253 Goodyear Air Spring(Air Balloon) |
|
10 |
2B9-252 Goodyear Air Spring(Air Balloon) |
|
11 |
2B9-251 Goodyear Air Spring(Air Balloon) |
|
12 |
2B9-250 Goodyear Air Spring(Air Balloon) |
|
13 |
2B9-246 Goodyear Air Spring(Air Balloon) |
|
14 |
2B9-244 Goodyear Air Spring(Air Balloon) |
|
15 |
2B9-240 Goodyear Air Spring(Air Balloon) |
|
16 |
2B9-239 Goodyear Air Spring(Air Balloon) |
|
17 |
2B9-230 Goodyear Air Spring(Air Balloon) |
|
18 |
2B9-229 Goodyear Air Spring(Air Balloon) |
|
19 |
2B9-225 Goodyear Air Spring(Air Balloon) |
|
20 |
2B9-218 Goodyear Air Spring(Air Balloon) |
|
21 |
2B9-216 Goodyear Air Spring(Air Balloon) |
|
22 |
2B9-210 Goodyear Air Spring(Air Balloon) |
|
23 |
2B9-206 Goodyear Air Spring(Air Balloon) |

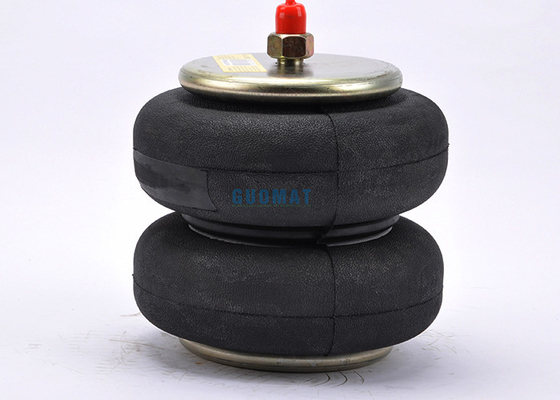

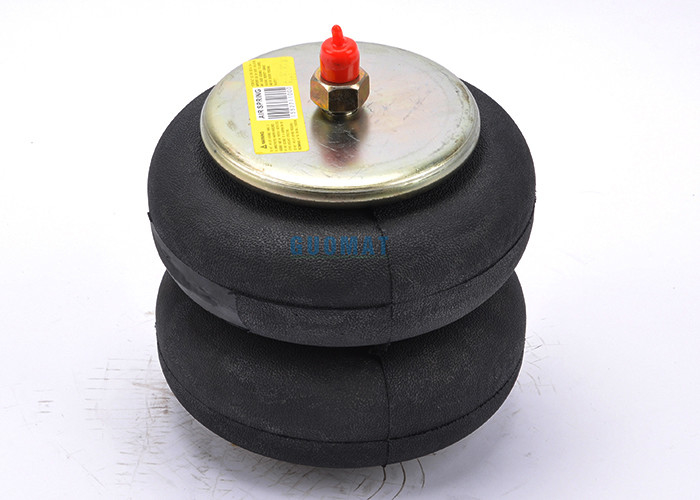

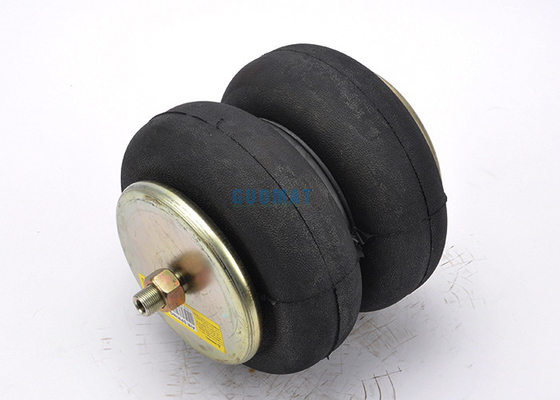

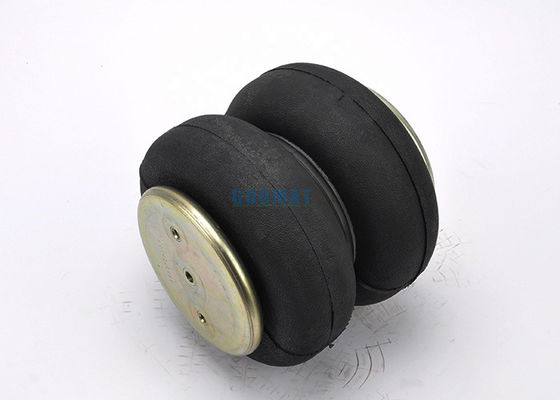

The Real Pictures of GUOMAT 2B6927
