| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B7008 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Warranty: | 12 Months | Material: | Metal+Rubber |
|---|---|---|---|
| Function: | Reduce Shock | Package Size: | 24*24*24(cm) |
| Gas Hole: | 1/4 NPTF | Application: | For Industrial Machine |
| Quality: | 100% Tested | The Stroke: | 55-160mm |
| High Light: | Industrial Single Convoluted Air Spring,Single Convoluted Air Spring W01358700,90557226 Industrial Air Spring |
||
Firestone Industrial Single Convoluted Air Spring W013587008 OEM Holland 90557226 1/4NPTF Air Inlet
Product Description
|
Product Description |
Single Convoluted Air Spring |
|
Model No. |
1B7008 |
|
Warranty |
1 Year Warranty |
|
Material |
Natural Rubber+Steel |
|
Country of Origin |
China |
|
Brand |
GUOMAT/Neutral |
| Color | Black |
| Application | For Industrial Machine |
| Quality | High Quality |
| Delivery Time | About 3-8 working days |
| MOQ | 10 pieces |
| Sample Order | Yes |
GUOMAT 1B7008 Detailed Technical Data
Failure Testing ≥3 millions
Working Temperature -40℃ bis +70℃
Top Cover Plate Diameter:231mm
Bottom Cover Plate Diameter:231mm
Gas Hole / Air inlet:1/4NPTF
Rubber Bellows MAX Diameter:325mm
The Working Stroke:MAX 160 mm to MIN 55 mm
Top Cover Plate Screw (Nut) Tooth:2X3/8-16UNC
Bottom Cover Plate Screw (Nut) Tooth:2X3/8-16UNC
Screw Center Distance of Top Cover Plate:157.5mm
Screw Center Distance of Bottom Cover Plate:157.5mm
Screw And Gas Hole Distance of Top Cover Plate:75mm
1B7008 Refer to the Following OEM Numbers
Firestone Part Number W01-358-7008
Firestone Part Number W01 358 7008
Firestone Part Number W013587008
Contitech Part Number FS330-11 474
Contitech Part Number FS 330-11 474
Goodyear Part Number 1B12-300
Goodyear Part Number 1B 12-300
Goodyear Part Number 1B12 300
Goodyear Part Number 1B12-313
Goodyear Part Number 1B 12-313
Goodyear Part Number 1B12 313
Triangle Part Number 6374
Triangle Part Number 4474
Holland (Neway) 90557226
Industrial Air Spring
The industrial air spring widely used in paper-making machinery, vehicle detection equipment, mechanical gripper, shaking table ect. to effectively improve the working efficiency, safety and service life of the equipment. In these fields, the products plays an important role of damping, lifting, supporting, and so on. It helps customers to save manufacturing costs and win more economic profits.
1. The products features low cost, wide use and easy operation.
2. It achieves long service life, and requires no maintenance and lubrication.
3. This product allows for flexible expansion and contraction, strong loading capacity, convenient design, and simple structure.
4. It comes with no friction and soft medium.
Product Advantages
1. Excellent material
2. Effective impact
3. In-situ installation
4. Comfortable and stable
5. Long life
6. Eliminate abnormal noise
7.Competitive price
2B9-210 Goodyear Air Spring
2B9-206 Goodyear Air Spring
2B9-201 Goodyear Air Spring
2B9-200 Goodyear Air Spring
2B8-550 Goodyear Air Spring
2B7-542 Goodyear Air Spring
2B6-535 Goodyear Air Spring
2B6-530 Goodyear Air Spring
2B14-479 Goodyear Air Spring
2B14-476 Goodyear Air Spring
2B14-470 Goodyear Air Spring

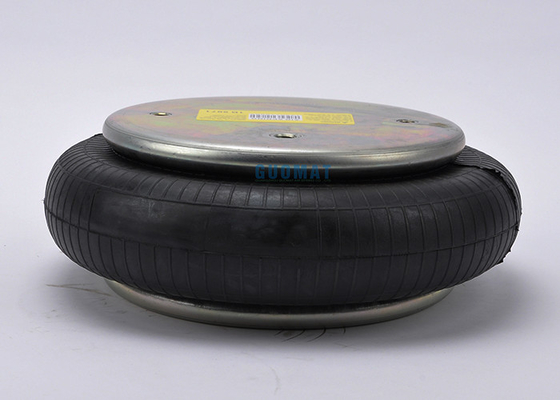

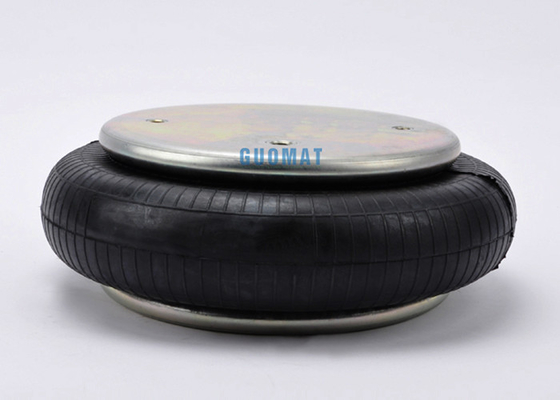

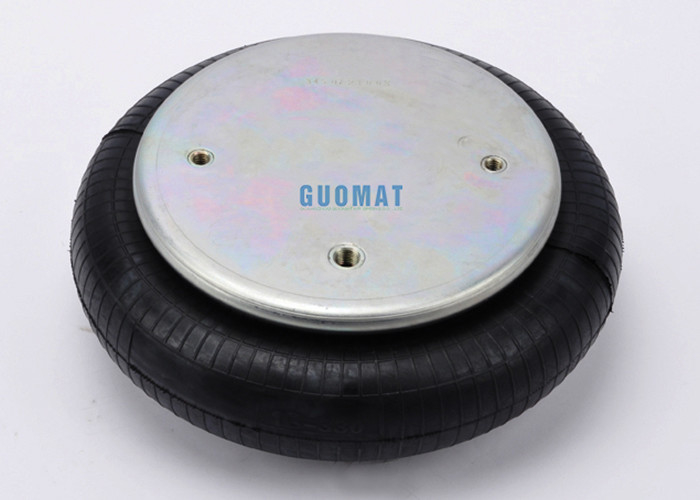

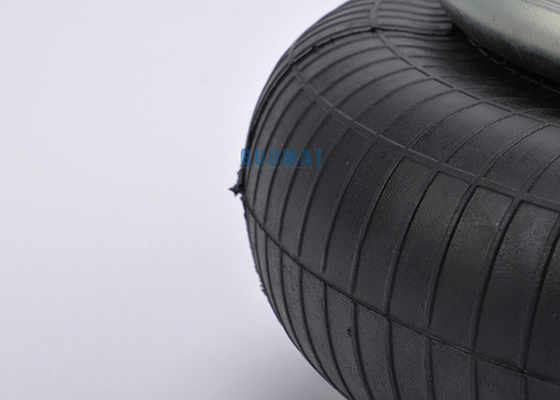

Real Picture-Air Bellow Spring
