| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | M/31123 |
| Minimum Order Quantity: | 6PCS |
|---|---|
| Price: | $69.9-159.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Spring Material: | Rubber + Steel | Product Warranty: | 12 Months |
|---|---|---|---|
| Sample: | Available | Service Offered: | OEM |
| Product Feature: | In-situ Installation | Type: | Air Spring |
| Bellows No.: | 12''X3 | Condition: | Brand-New |
| High Light: | Industrial Triple Convoluted Air Spring,Natural Rubber Triple Convoluted Air Spring,M/31123 Triple Convoluted Air Spring |
||
Natural Rubber M/31123 G1/2 Norgren Air Bellow 12X3 Industrial Triple Convoluted Air Spring
Product Description
|
Part Number |
12X3 |
|
Part Name |
Norgren Triple Convoluted Air Bag |
|
Working Tempreature |
-40°C bis +70°C |
|
Failure Testing |
≥3 Millions |
|
Pressure Ability |
0.2-0.8 M PA |
|
Warranty |
One Year |
|
Material |
Rubber+Steel |
|
Packing Size |
33*33*22cm |
Original Equipment Manufacturer
Norgen Part Number: M/31123
Norgen Part Number: M31123
Norgen Part Number: M 31123
Firestone Part Number: W01-R58-4062
Firestone Part Number: W01 R58 4062
Firestone Part Number: W01R584062
Contitech Part Number: FT412-323
Contitech Part Number: FT 412-323
Goodyear Part Number: C2ECH
Dunlop Pneuride Part Number: 12X3
Dunlop Pneuride Part Number: 12''X3
12X3 Single Convoluted Air Spring Technical Data
• Top Cover Plate Diameter (Width): 260 mm
• Bottom Cover Plate Diameter (Width): 260 mm
• Top Cover Plate Screw (Nut) Tooth : 4pcs X M10
• Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M10
• Gas Hole / Air inlet : G1/2
• Stroke of Rubber Bellows:100mm-430m
• Material top and bottom plate:Steel
• Without Bumper Block
• With Girdle Hoop :One Pieces of Girdle Hoop
Data Sheets for Other Models
|
Model |
Nominal Ø (inch) x |
Stroke (mm) |
Installation Height Min.H(mm) |
Thrust at 6 bar(N) |
Retracting force to |
Installation Height Max.H(mm) |
Thrust at 6 bar(N) |
|
M/31061 |
6X1 |
55 |
50 |
10950 |
140 |
105 |
2900 |
|
M/31062 |
6X2 |
115 |
75 |
10400 |
240 |
190 |
3200 |
|
M/31081 |
8X1 |
80 |
50 |
18600 |
120 |
130 |
5350 |
|
M/31082 |
8X2 |
175 |
75 |
17650 |
250 |
250 |
4550 |
|
M/31101 |
10X1 |
100 |
50 |
26450 |
100 |
150 |
9000 |
|
M/31102 |
10X2 |
225 |
75 |
26350 |
100 |
300 |
6450 |
|
M/31103 |
10X3 |
330 |
100 |
26600 |
190 |
430 |
6450 |
|
M/31121 |
12X1 |
100 |
50 |
38850 |
100 |
150 |
15100 |
|
M/31122 |
12X2 |
225 |
75 |
38500 |
110 |
300 |
8550 |
|
M/31123 |
12X3 |
330 |
100 |
40600 |
180 |
430 |
10900 |
|
M/31141 |
14 1/2X1 |
125 |
50 |
57600 |
100 |
175 |
21550 |
|
M/31142 |
14 1/2X2 |
265 |
75 |
61900 |
90 |
340 |
16900 |
|
M/31143 |
14 1/2X3 |
380 |
100 |
62550 |
290 |
480 |
19200 |
|
M/31162 |
16X2 |
315 |
75 |
65250 |
990 |
390 |
20200 |
|
M/31163 |
16X3 |
430 |
120 |
64950 |
750 |
550 |
19050 |
|
M/31212 |
21X2 |
280 |
90 |
141000 |
480 |
370 |
53450 |
|
M/31262 |
26X2 |
410 |
90 |
203700 |
150 |
550 |
84450 |

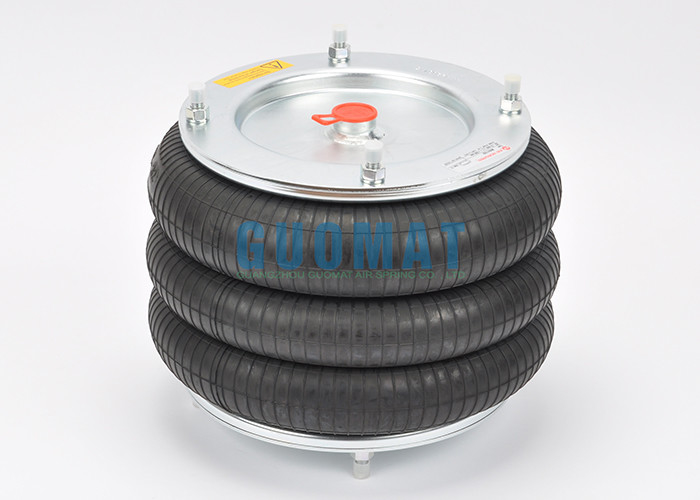

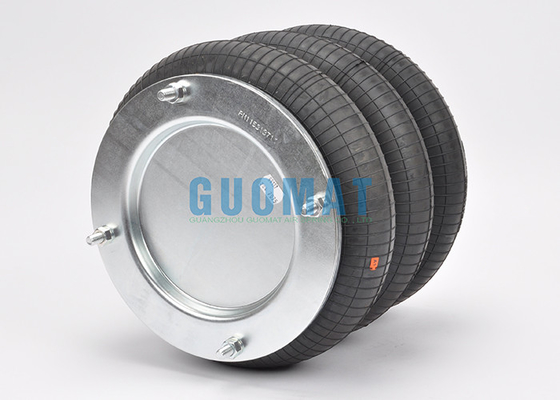

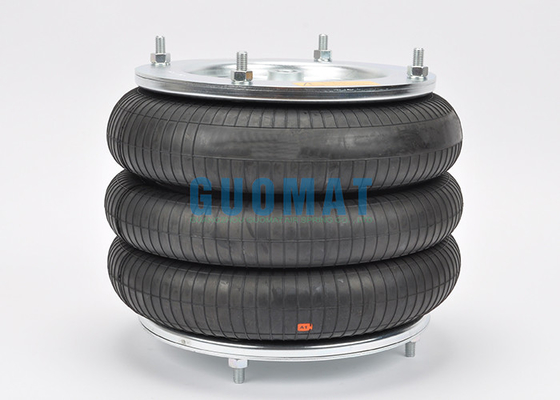

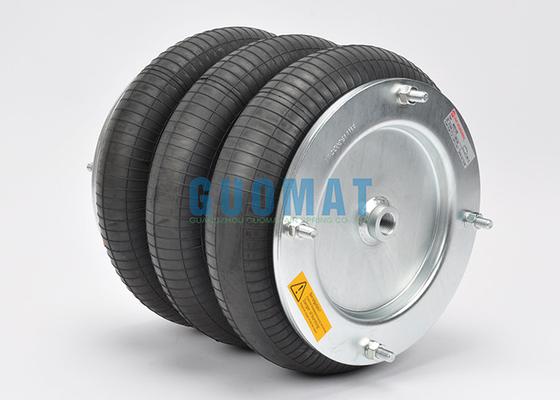

The Real Pictures
