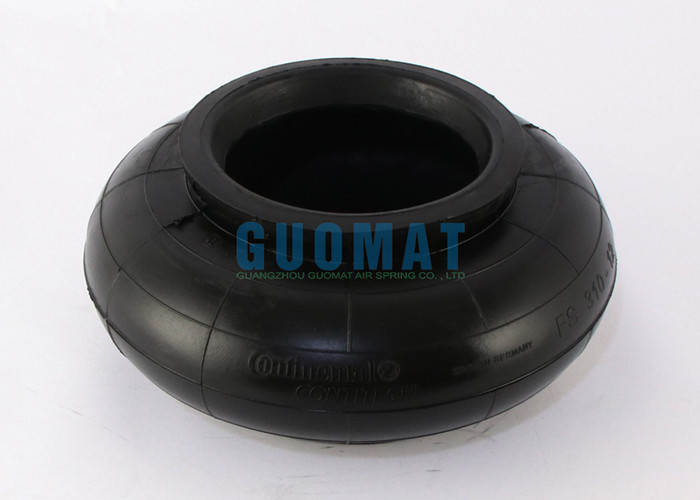

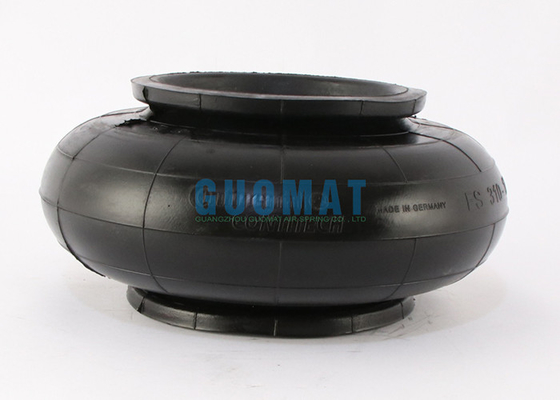

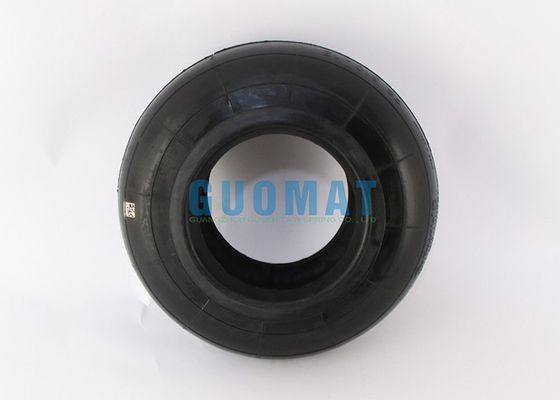

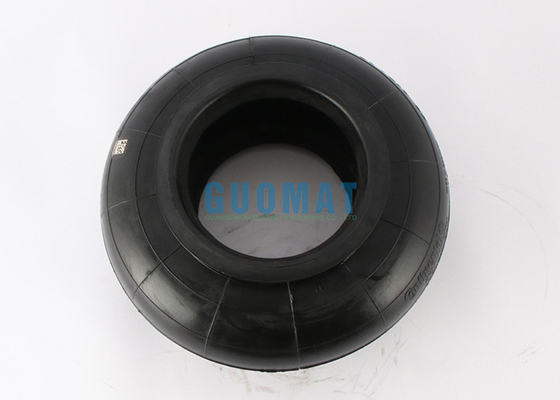

FS 310-12 S VP Contitech Single Convoluted Air Spring Industrial Rubber Air Bellow Air Shock

Name: FS 310-12 S VP Contitech Single Convoluted Air Spring Industrial Rubber Air Bellow Air Shock
Brand: GUOMAT
SKU: FS310-12
Price: 49.9 USD
Availability: InStock
Rating: 4.5 (159 reviews)

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	FS310-12

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$49.9-59.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Material:	High-Quality Rubber	Warranty:	12 Months
Quality:	100% Tested	MOQ:	10 Pieces
Spring Type:	Single Convoluted Type Air Spring	Transport Package:	Cartons
Load Type:	Compression	Usage:	Industrial Machine
High Light:	Contitech Single Convoluted Air Spring , Industrial Rubber Single Convoluted Air Spring

FS 310-12 S VP Contitech Single Convoluted Air Spring Industrial Rubber Air Bellow Air Shock

Product Description

Min. Height	55mm
Max. Stroke	120mm
Max. Diameter	320mm
Installation Space Needed	335mm
Bead Diameter	172mm
Inner Sealing and Mounting Surface	131mm
Height of Bead	11mm
Max. Loading Capacity(7bar / 115mm)	26.8kN

Cross Reference Number

Contitech OEM Part Number: FS310-12

Contitech OEM Part Number: FS310-12 DS

Contitech OEM Part Number: FS 310-12 DS

Contitech OEM Part Number: FS 310-12 1/2 M10

Contitech OEM Part Number: FS 310-12 DS G1/2

Contitech OEM Part Number: FS310-12 DS 1/2 M10

Contitech OEM Part Number: FS 310-12DS G1/2 M10

FS 310-12 Replacement for Phoenix 1 B20
FS 310-12 ECO Replacement for Phoenix 1 B20-4

Types of Air Springs

Convoluted bellows, with permanent crimps in the board connecting the bellows to the bead board. These provide good vibration isolation and linear/angular actuation, but are not suitable for vehicle suspension.
Sleeve bellows, connecting the bellows to the bead plate with an external clamp. This air spring type provides good vibration isolation, but is limited to linear drives. They are not typical in suspension.
A rolling bellows with a piston at one end of the bellows instead of a bead plate. This is most common in vehicle suspensions and is generally not recommended for vibration isolation.

Application of Air Spring
Air springs are used in a wide range of applications. They are commonly used as actuators in amusement park rides, packaging equipment, clutch systems, conveyor belts, and scissor lifts, and they are also used as vibration isolators in centrifuges, commercial washing machines, measuring and weighing machinery, and textile looms . While air springs impact many industries such as oil, logging, construction, and manufacturing, it is most prominent in the automotive industry, where air springs are used in the suspensions of car brands such as Lincoln, Cadillac, Hummer, and Jeep.

Contitech Air Spring

Model	Gas Hole	Screw Tooth	Rubber Bellow(mm)	Cover Plate(mm)
FS 76-7 DS CR	G1/2	M10	175	153.5
FS 210-10 DS	G1/2	M10	270	210
FS 412-10 DS	G1/2	M10	330	260
FS 614-13 DS	G1/2	M10	400	310
FS 816-15 DS	G1/2	M10	420	310
FD 76-14 DS CR	G1/2	M10	175	153.5
FD 138-18 DS	G1/2	M10	225	184
FD 209-21 DS	G1/2	M10	255	197
FD 210-22 DS	G1/2	M10	270	210
FD 412-18 DS	G1/2	M10	325	260
FD 614-26 DS	G1/2	M10	400	310
FD 816-30 DS	G1/2	M10	435	310
FT 76-20 DS CR	G1/2	M10	178	153.5
FT 138-26 DS	G1/2	M10	230	184
FT 210-32 DS	G1/2	M10	270	210
