| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | F-160-2 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $99.9-159.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Product Name: | Single Bellow Air Bag | Material: | Natural Rubber |
|---|---|---|---|
| Warranty: | 1 Year Warranty | Failure Testing: | ≥3 Millions |
| Type: | With Cover Plate | Girdle: | Yes |
| Color: | Black | Cross No.: | S-160-2R |
| High Light: | Double Convoluted Rubber Punch Air Spring,S-160-2 Yokohama Punch Air Spring |
||
GUOMAT F-160-2 Double Convoluted Rubber Punch Air Spring S-160-2 Yokohama Air Lift Bag
Product Description
GUOMAT: F-160-2
YOKOHAMA: S-160-2
Material: High Quality Rubber
Warranty: 1 Year
Number of Convolution: 2
Air Spring Type: With Ring, With Plate
MOQ: 10 Pieces
These products are also used in the installation of vehicles, industrial machinery and other equipment for air vibration and shock isolation purposes.

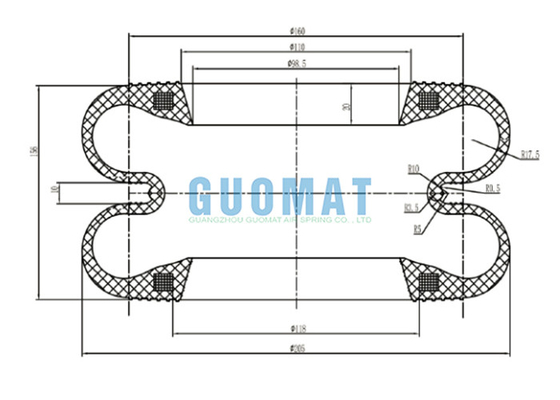

F-160-2 Rubber Air Bag Technical Data
|
Design Height(mm) |
98 |
|
Max Height(mm) |
148 |
|
Min Height(mm) |
53 |
|
Common Maximum Travel(mm) |
±35 |
|
Compression Max Outside Diameter(mm) |
220 |
|
Effective Area(cm2) |
200 |
|
Volume(L) |
2.1 |
|
Load(KN) |
9.8 |
|
Dynamic Spring Constant(n/mm) |
255 |
|
Natural Vibration Frequency(Hz) |
2.5 |
|
Maximum Internal Pressure(Mpa) |
0.88 |
|
Internal Pressure Failure(Mpa) |
2.9-3.9 |
Model of YOKOHAMA
S-50-3 S-60-4 S-90-3 S-100-4 S-120-4 S-160-4 S-200-4 S-220-4
S-50-2 S-60-3 S-100-3 S-120-3 S-160-3 S-200-3 S-220-3
S-60-2 S-100-2 S-120-2 S-160-2 S-200-2 S-220-2
S-160-1
S-240-4 S-300-4 S-350-4 S-400-5 S-450-5 S-500-5 S-550-3 S-600-5
S-240-3 S-300-3 S-350-3 S-400-4 S-450-4 S-500-4 S-550-2 S-600-4
S-240-2 S-300-2 S-350-2 S-400-3 S-450-3 S-500-3 S-600-3
S-240-1 S-300-1 S-350-1 S-400-2 S-450-2 S-500-2 S-600-2
S-450-1 S-600-1
Advantages of Air Spring in Punching Equipment
With the continuous development of today's industrial modernization, many industries use punching equipment for processing and manufacturing, but punching equipment brings us economic benefits, but also produces many hidden dangers, such as wear and tear caused by vibration, noise and other problems. The vibration of punch equipment will cause friction between many parts and damage them. In addition, the vibration will also produce very strong noise, which not only damages the health of the staff, damages the equipment, but also affects the normal rest of nearby residents. Therefore, it is not conducive to the long-term stable development of the factory.
Since the air spring has an excellent shock-absorbing effect and uses air as the medium, it has a long service life. Installing air springs on punch equipment can effectively maintain punch equipment. Air springs can not only support Nuoda's machine tools, but also belong to soft materials. When working, the vibration frequency from the upper end cover to the lower end cover can be reduced to 1HZ, which well avoids the vicious cycle of the vibration wave from the machine tool to the ground, and then returns from the ground to the machine tool.
About Guomat
We always focus on the development of auto parts and provide you with quality products and competitive prices.
GUOMAT has more than 15 years of production and sales experience.
If you are interested in our products, we will be happy to provide you with the best quotation. Let me know if you have any questions
We look forward to building business with you.
Packing Details
1. One piece in a poly bag.1piece in a carton.
2. Mark the product numbers and the QTY outside the carton.
3. As your requirement.

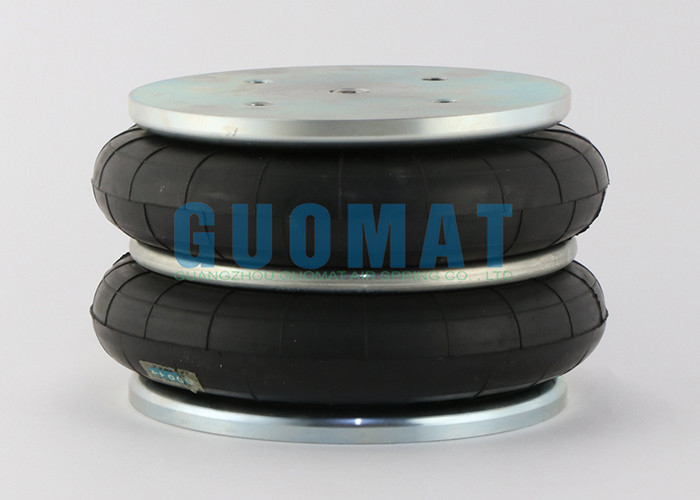

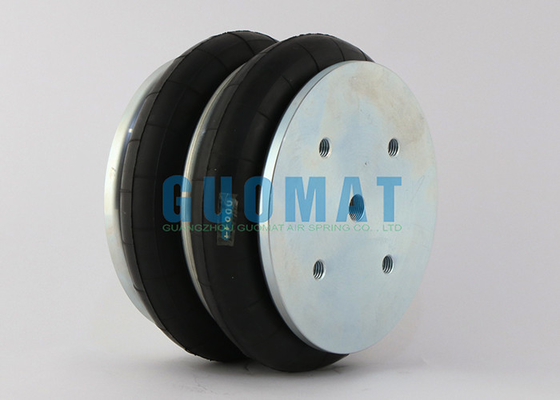

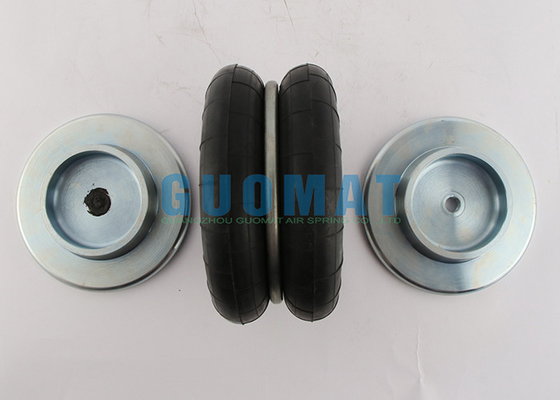

The Real Pictures
