| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | FD138-18 DS |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $69.9-99.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Bellow And Steel Cover | Warranty: | 1 Year Warranty |
|---|---|---|---|
| Packaging: | Carton/Cartons | Position: | Industrial Machine |
| Air Fitting: | G1/2 | Type: | Double Convoluted Type |
| Air Spring: | With Dismountable Plates | The Screw: | M10 |
| High Light: | FD 138-18 Rubber Air Bellows,Navigator Contitech Presses Rubber Air Bellows |
||

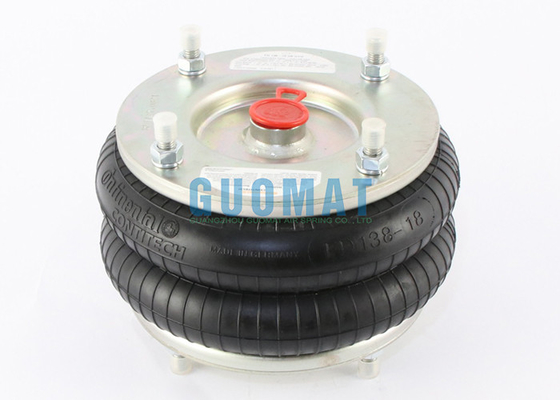

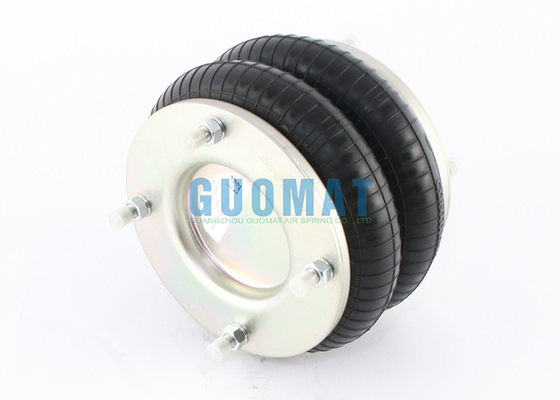

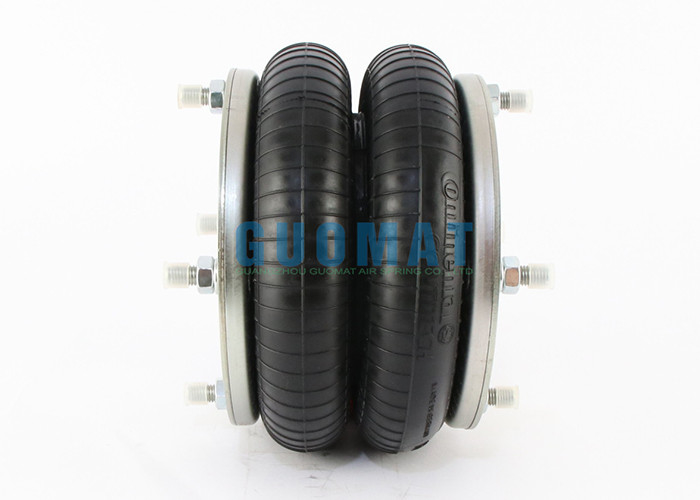

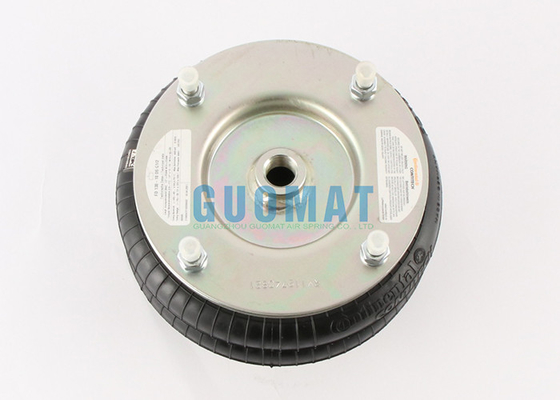

FD 138-18 DS G1/2 Rubber Air Bellows Navigator Contitech Presses Convoluted Air Spring
GUOMAT 2B13818 Air Spring Technical Data
♦Cover Plate
Top Cover Plate Diameter: Ø184mm
Bottom Cover Plate Diameter: Ø184mm
♦Gas Hole/Air Fitting
Gas Hole: G1/2
♦Screw/Blind Nut
The Screw of the Top Cover Plate: 4XM10
The Screw of the Bottom Cover Plate: 4XM10
The Screw Height: 25mm
The Distance Between the Screws of the Top Cover Plate: Ø155.5mm
The Distance Between the Screws of the Botttom Cover Plate: Ø155.5mm
♦Rubber Bellow
The Rubber Bellow Diameter: Ø230mm
The Max. Height: 250mm
The Min.Height: 75mm
Pneumatic application – static characteristic values
Force F [kN]
|
Pressure P |
[bar] |
3 |
4 |
5 |
6 |
7 |
8 |
Vol.V [I] |
|
Height H [mm] |
220 |
2.9 |
4.23 |
5.16 |
6.41 |
7.65 |
8.98 |
4.3 |
|
200 |
3.86 |
5.27 |
6.68 |
8.21 |
9.73 |
11.3 |
4.1 |
|
|
150 |
5.9 |
8 |
10.1 |
12.4 |
14.7 |
16.9 |
3.2 |
|
|
100 |
8.2 |
10.9 |
13.7 |
16.6 |
19.4 |
22.4 |
2 |
OEM Reference Number
Contitech Number: FD138-18
Contitech Number: FD 138-18
Contitech Number: FD138-18 DS
Contitech Number: FD 138-18 DS
Contitech Number: FD138-18 DS G1/2
Contitech Number: FD 138-18 DS G1/2
Contitech Double Convoluted Bellows Air Spring
|
Part No. |
Inch Maat |
Max. Stroke (mm) |
Max. Dia (mm) |
Min.H(kN) |
Max.Stroke(Kn) |
|
8 bar |
|||||
|
FD 138-18 DS |
8X2 |
175 |
230 |
24.7 |
5.0 |
|
FD 209-21 DS |
9 1/4X2 |
205 |
255 |
31.2 |
7.5 |
|
FD 210-22 DS |
10X2 |
225 |
270 |
35.0 |
7.1 |
|
FD 22-4 DI CR |
2 3/4X2 |
45 |
80 |
3.0 |
0.9 |
|
FD 412-18 DS |
12X2 |
225 |
330 |
53.6 |
15.4 |
|
FD 44-10 DI CR |
4 1/2X2 |
85 |
125 |
7.4 |
1.7 |
|
FD 614-26 DS |
14X2 |
265 |
400 |
79.0 |
19.7 |
|
FD76-14 DI CR |
6X2 |
115 |
178 |
14.5 |
4.7 |
|
FD 76-14 DS CR |
6X2 |
115 |
178 |
14.5 |
4.7 |
|
FD 816-30 DS |
16X2X |
315 |
435 |
84.2 |
21.1 |
