| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B61426 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $69.9-159.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Bellow And Steel Cover | Warranty: | 1 Year Warranty |
|---|---|---|---|
| Packaging: | Carton/Cartons | Air Inlet: | G1/2 |
| Application: | Punching Machine | OEM: | FD614-26 DS G1/2 |
| The Screw: | M10 | Spring Type: | Double Convoluted |
| High Light: | Double Convolution Rubber Industrial Air Spring,FD 614-26 DS Industrial Air Spring |
||

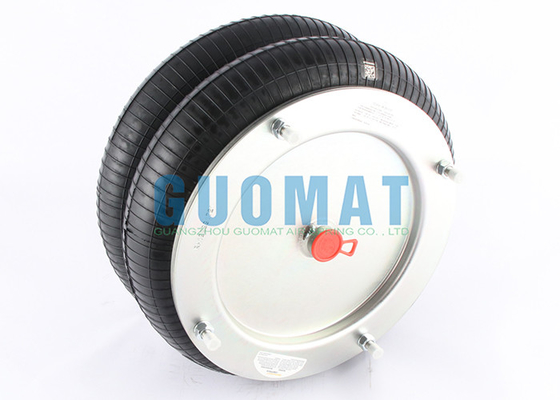

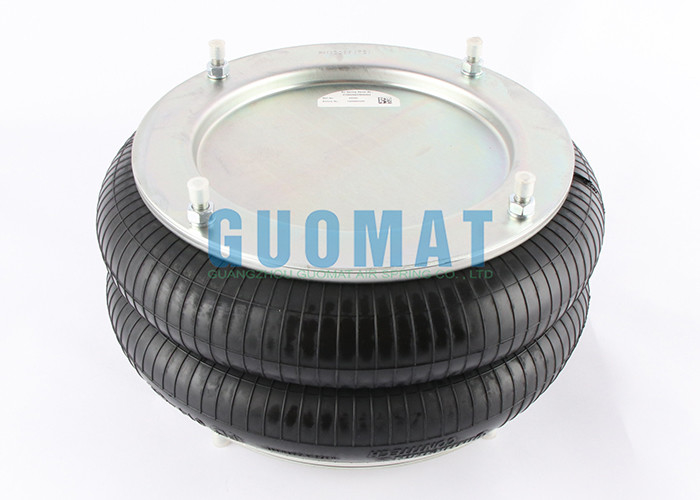

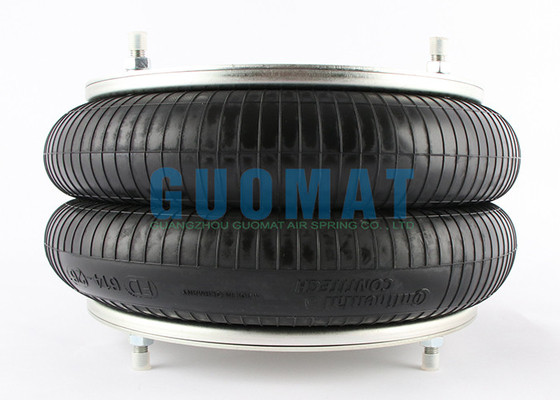

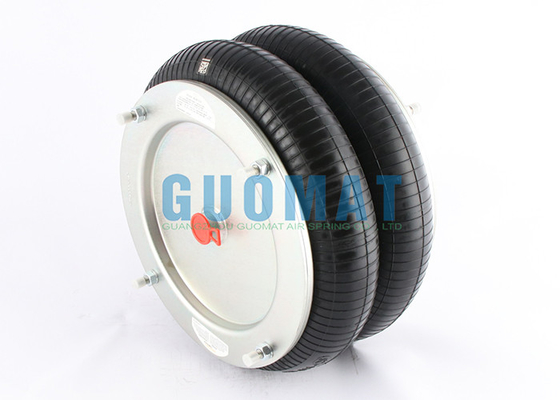

FD 614-26 DS Contitech Double Convolution Rubber Air Bellow G1/2 Drying Industrial Air Spring
Product Description
Air spring is a rubber and fabric bladder that holds air pressure to support a load and isolate passengers and cargo from the shock of motion caused by road irregularities.
As the air pressure increases, the air spring can support more load while the spring rate increases.The larger the air spring, the greater the maximum load it can support.
Original Equipment Manufacturer
Contitech OEM Part Number FD614-26
Contitech OEM Part Number FD 614-26
Contitech OEM Part Number FD614-26 DS
Contitech OEM Part Number FD 614-26 DS
Contitech OEM Part Number FD614-26 DS G1/2
Contitech OEM Part Number FD 614-26 DS G1/2
FD614-26 Contitech Air Spring Technical Parameters
Air Fitting: G1/2
Top Cover Plate Diameter: Ø310mm
Bottom Cover Plate Diameter: Ø310mm
Top Cover Plate Screw: 4 pcs X M10
Bottom Cover Plate Screw: 4 pcs X M10
The Screw Height: 25mm
The Distance Between the Screws of the Top Cover Plate: Ø282.5mm
The Distance Between the Screws of the Bottom Cover Plate: Ø282.5mm
Rubber Bellows Diameter: Ø400mm
Max. Height: 340mm
Min. Height: 75mm
Contitech Model Series D Type Air Spring
|
Single Convoluted Bellows |
|
|
FS 22-3 DI CR |
2 3/4X1 |
|
FS 44-5 DI CR |
4 1/2X1 |
|
FS 76-7 DI CR |
6X1 |
|
FS 76-7 DS CR |
6X1 |
|
FS 138-8 DS |
8X1 |
|
FS 210-10 DS |
10X1 |
|
FS 412-10 DS |
12X1 |
|
FS 614-13 DS |
14X1 |
|
FS 916-15 DS |
16X1 |
|
Double Convoluted Bellows |
|
|
FD 22-4 DI CR |
2 3/4X1 |
|
FD 44-10 DI CR |
4 1/2X1 |
|
FD 76-14 DI CR |
6X2 |
|
FD 76-14 DS CR |
6X2 |
|
FD 138-18 DS |
8X2 |
|
FD 209-21 DS |
9 1/4X2 |
|
FD 210-22 DS |
10X2 |
|
FD 412-18 DS |
12X2 |
|
FD 614-26 DS |
14X2 |
|
FD 816-30 DS |
16X2 |
|
Triple Convoluted Bellows |
|
|
FT 22-6 DI CR |
2 3/4X3 |
|
FT 44-15 DI CR |
4 1/2X3 |
|
FT 76-20 DI CR |
6X3 |
|
FT 76-20 DS CR |
6X3 |
|
FT 138-26 DS |
8X3 |
|
FT 210-32 DS |
10X3 |
|
FT 412-32 DS |
12X3 |
|
FT 614-36 DS |
14X3 |
|
FT 816-40 DS |
16X3 |
Air Springs for Pneumatic Applications
