Email:linda@662n.com Mob:+8613924100039(WhatsAPP)
Wechat:airspringG Skype:guomat
 |
| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 6X1 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $69.9-89.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Bellow And Aluminum Cover | Warranty: | 1 Year Warranty |
|---|---|---|---|
| Function: | Reduce Shock | Pressure Ability: | 0.2-0.8 M Pa |
| Comparable To: | WO1R584078 | Product Name: | Air Spring Assembly |
| Type: | Single Convoluted Type | Air Inlet: | G1/2 |
| High Light: | Contitech FS76-7 Single Convoluted Air Spring,W01-R58-4078 Single Convoluted Air Spring |
||
Contitech FS76-7 DI Single Convoluted Air Spring W01-R58-4078 Firestone Air Lift Bag
Product Description
Manufacturer: Contitech
Manufacturer Part Number: FS76-7
Manufacturer: Contitech
Manufacturer Part Number: FS 76-7
Manufacturer: Contitech
Manufacturer Part Number: FS76-7 DI G1/2 CR
Manufacturer: Contitech
Manufacturer Part Number: FS 76-7 DI G1/2 CR
Manufacturer: Firestone
Manufacturer Part Number: W01-R58-4078
Manufacturer: Firestone
Manufacturer Part Number: W01R584078
Manufacturer: Firestone
Manufacturer Part Number: W01 R58 4078
Manufacturer: Firestone
Manufacturer Part Number: WO1-R58-4078
Manufacturer: Firestone
Manufacturer Part Number: WO1R584078
Manufacturer: Firestone
Manufacturer Part Number: WO1 R58 4078
Manufacturer:Dunlop
Manufacturer Part Number: 6''x1 (AI)
Manufacturer: Dunlop
Manufacturer Part Number: SP2913
Manufacturer: Dunlop
Manufacturer Part Number: SP 2913
Manufacturer: Norgren
Manufacturer Part Number: PM/31061
Manufacturer: Norgren
Manufacturer Part Number: PM31061
Manufacturer: Norgren
Manufacturer Part Number: PM 31061
Manufacturer: Parker
Manufacturer Part Number: 9109004A
6X1 Air Spring Technical Parameters
Top Cover Plate: 152.5mm
Bottom Cover Plate: 175mm
Gas Hole: G1/2
Thread: M8
Distance Between Threads: 127mm
Max. Height: 110mm
Min.Height: 55mm
Vibration isolation – dynamic characteristic values
Design height H: recommended 90mm, minimum 75mm
| Pressure ［bar］ | 3 | 4 | 5 | 6 | 7 | 8 | VoI.［I］ |
| Force ［Load］ ［KN］ | 3.1 | 4.2 | 5.3 | 6.4 | 7.5 | 8.7 | 0.87 |
| Spring Rate ［N/MM］ | 158.5 | 200.5 | 245.5 | 286 | 331.5 | 374.5 | |
| Natural Frequency ［HZ］ | 3.5 | 3.4 | 3.4 | 3.3 | 3.3 | 3.3 |
Pneumatic application – static characteristic values
Force F [kN]
| Pressure P | ［bar］ | 3 | 4 | 5 | 6 | 7 | 8 | VoI.［I］ |
| Height H(mm) | 100 | 2.27 | 3.12 | 3.99 | 4.89 | 5.82 | 6.79 | 0.97 |
| 90 | 3.05 | 4.15 | 5.25 | 6.35 | 7.51 | 8.72 | 0.87 | |
| 80 | 3.81 | 5.11 | 6.42 | 7.76 | 9.13 | 10.5 | 0.75 | |
| 70 |
4.54 |
6.03 | 7.55 | 9.08 | 10.7 | 12.3 | 0.6 | |
| 60 | 5.34 | 7.06 | 8.82 | 10.6 | 12.4 | 14.2 | 0.43 |
Other Related Products
W01R584050 (FIRESTONE) 4 1/2''X1
W01R584051 (FIRESTONE) 4 1/2''X2
W01R584035 (FIRESTONE) 4 1/2''X3-E
W01R584078 (FIRESTONE) 6''X1(Al)
W01R584052 (FIRESTONE) 6''X1(Steel)
W01R584070 (FIRESTONE) 6''X2(Al)
W01R584053 (FIRESTONE) 6''X2(Steel)
W01R584095 (FIRESTONE) 6''X3(Steel)
W01R584054(FIRESTONE) 8''X1
W01R584055(FIRESTONE) 8''X2
W01R584056(FIRESTONE) 8''X3
W01R584057(FIRESTONE) 10''X1
W01R584058(FIRESTONE) 10''X2
W01R584059(FIRESTONE) 10''X3
W01R584060(FIRESTONE) 12''X1
W01R584061(FIRESTONE) 12''X2
W01R584039(FIRESTONE) 12''X2-E
W01R584062(FIRESTONE) 12''X3
W01R584063(FIRESTONE) 14'' 1/2X1
W01R584064(FIRESTONE) 14'' 1/2X2
W01R584065(FIRESTONE) 14'' 1/2X3
W01R584066(FIRESTONE) 16''X1
W01R584067(FIRESTONE) 16''X2
W01R584068(FIRESTONE) 16''X3

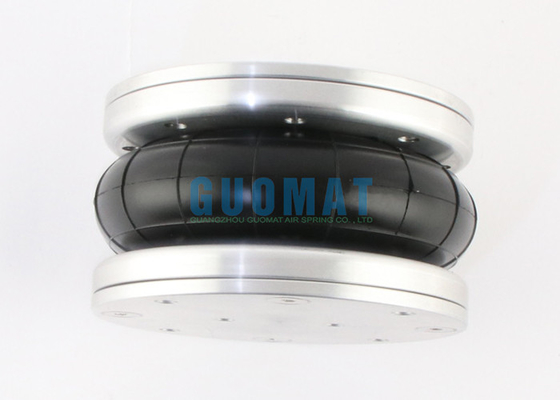

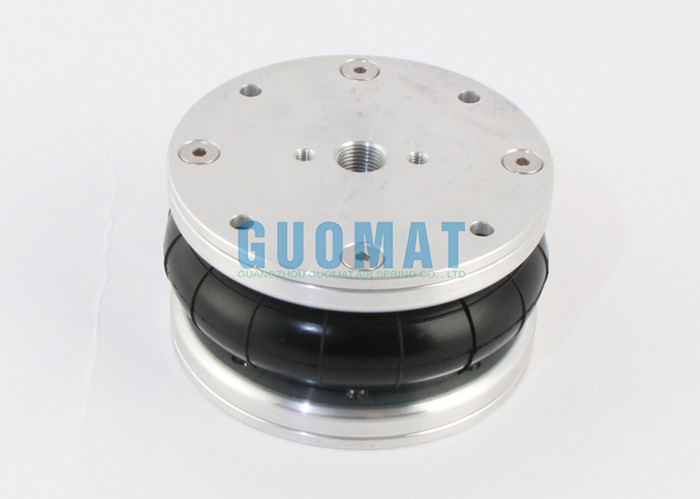

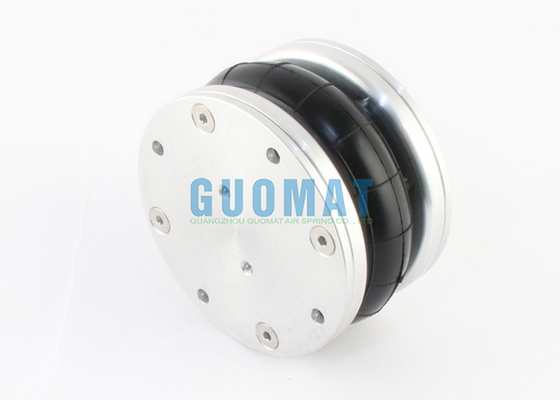

The Real Pictures
