Place of Origin: | GuangDong, China |
Brand Name: | GUOMAT |
Certification: | ISO/TS16949:2009 |
Model Number: | 2B14-354 |
Minimum Order Quantity: | 6pcs |
---|---|
Price: | $99.9-159.9/pc |
Packaging Details: | Strong Carton Box Or As Customers Need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union, L/C |
Supply Ability: | 1000pcs/week |
Item: | Goodyear Air Spring | Warranty: | 12 Months |
---|---|---|---|
Material: | Rubber + Iron | Quality: | 100% Tested |
Weight: | 7.0 Kg | Other Name: | Firestone Helper Bags |
For Car: | VOL-VO | Packing Size: | 33*33*22(cm) |
High Light: | 2B14-354 Suspension Rubber Air Spring,578-92-3-353 Rubber Air Spring,Double Convoluted Rubber Air Spring |

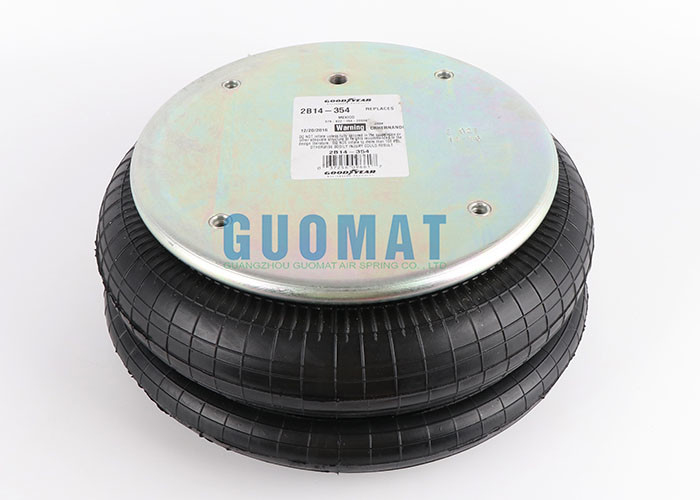

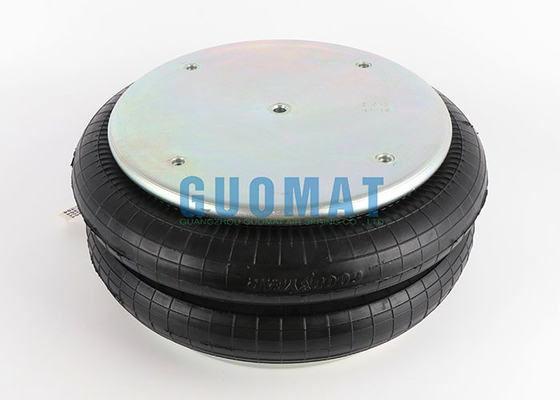

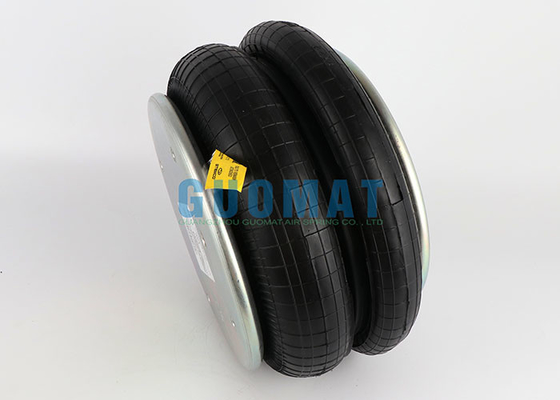

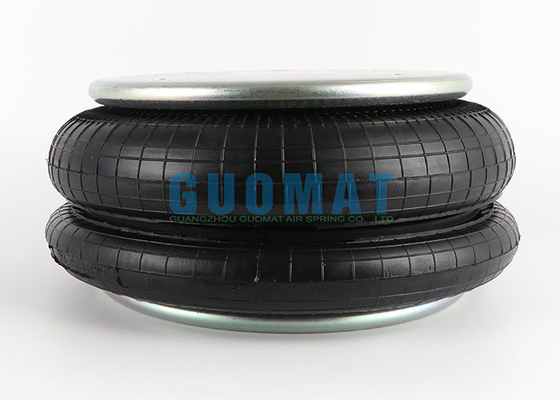

Goodyear 2B14-354 Suspension Rubber Air Spring 578-92-3-353 Double Convoluted Air Bellow Replacement
Product Description
Brand: Goodyear Brand
Spring Origin: Mexico
Part Number | 2B14-354 ; 2B 14-354 ; 2B14 354 ; 2B 14 354 |
Flexmember Number | 578-92-3-353 ; 578923353 ; 578 92 3 353 |
2B14-354 Goodyear Air Spring Technical Data
Top Plate Diameter: 11.30
Top Plate Hole/Stud: 5
Air Fitting: 1/4NPTF
Tapped Hole on Top Retainers: 4x3/8-16
Distance Between Tapped Holes: 6.25
Distance Between Tapped Hole and Air Fitting:3.12
Bottom Plate Diameter: 11.30
Bottom Plate Hole/Stud: 4
Tapped Hole on Pistons: 4x1/2-13
Max.Height: 11.3
Min.Height: 3.7
Manufacturer Number
Automann Number: ABSP2B34R-7145
Contitech Number: FD530-22 374
Contitech Number: FD 530-22 374
Contitech Number: FD530-22374
Contitech Number: FD 530-22374
Dayton Number: 354-7145
Dayton Number: 354 7145
Firestone Number: W013587145
Firestone Number: W01 358 7145
Firestone Number: W01-358-7145
Int'l/Navistar Number: 554796C1
Load Guaro Number: SC2016
Nacj Truck Number: 57QL239
Ridewell Number: 1003587145C
Ridewell Number: S-4540-C
Triangle Number: 4374
Tro Number: AS71450
VOL-VO Number: 35203-0005
VOL-VO Number: 35203-3204
Automann Bellows Number: SP2B34R
Contitech Bellows Number: 64548
Firestone Bellows Number: 7145
Air Springs Applications
Air springs are a type of flexible suspension system that can be used in a variety of applications, ranging from heavy-duty commercial vehicles to packaging equipment. They are often used to absorb shock and vibration and to provide a smooth ride under varying load conditions. Common applications for air springs include:
Air springs offer several advantages over traditional steel springs, including greater load-carrying capacity, improved ride comfort, and simplified design and installation. They are also highly durable and can withstand harsh operating conditions. As a result, air springs are widely used in many different industries and applications around the world.
Goodyear Double Convoluted Air Spring
Item | Bellows Number | Contitech | Firestone |
2B12-305 | 578-91-3-310 | FD330-22 323 | W01-358-7443 |
2B12-317 | 578-91-3-310 | FD330-30 502 | W01-358-7499 |
2B12-324 | 578-91-3-310 | FD330-30 340 | W01-358-7447 |
2B9-200 | 578-92-3-202 | FD200-19 320 | W01-358-6910 |
2B9-201 | 578-92-3-202 | FD200-19 499 | W01-358-6935 |
2B9-206 | 578-92-3-202 | FD200-19 315 | W01-358-6905 |
2B9-210 | 578-92-3-202 | FD200-19 362 | W01-358-6908 |
2B9-230 | 578-92-3-202 | FD200-19 450 | W01-358-6940 |
2B9-245 | 578-92-3-202 | FD200-19 510 | W01-358-7788 |
