3B12-304 Goodyear Triple Bellow Air Spring Cross W01-358-8006 Firestone Rubber Air Shock Absorber

3B12-304 Goodyear Triple Bellow Air Spring Cross W01-358-8006 Firestone Rubber Air Shock Absorber


Product Description

Brand: Goodyear

Spring Origin: Mexico

Goodyear OEM Number: 3B12-304

Goodyear OEM Number: 3B 12-304

Goodyear OEM Number: 3B12 304

Goodyear OEM Number: 3B 12 304

Goodyear Flexmember: 578-93-3-100

Goodyear Flexmember: 578 93 3 100

Goodyear Flexmember: 578933100

Cross Reference Number

Triangle Spring 4430 ; Triangle Spring 4503 ; Contitech FT330-29 434 ; Firestone 8006 ; Firestone 8013 ; Batco 10-98006

Contitech FT330-29434 ; Leland SC2132 ; Euclid/Meritor Aftermarket E-FS8006 ; Euclid/Meritor Aftermarket FS8006

Dallas Spring  AS8006 ; Midland/Haldex  CS312304 ; UCF/Impex  AB-3B12-304 ; T.W. Distribution AB8006

3B12-304 Goodyear Air Spring Technical Data

Top Plate Diameter: 9.00

Top Plate Hole/Stud: 3

Air Fitting: 1/4NPTF

Tapped Hole on Top Retainers:2x3/8-16

Distance Between Tapped Holes: 6.20

Distance Between Tapped Hole and Air Fitting: 2.88

Bottom Plate Diameter: 9.00

Bottom Plate Hole/Stud: 2

Tapped Hole on Pistons: 2x1/2-13

Max.Height: 18.0

Min.Height: 4.8

Piston: —

Bumper: —

Application of Air Spring in Washing Machine Equipment

Air springs are often used in washing machine equipment to absorb the vibrations and shocks generated during the washing and spinning cycles. They are commonly used in conjunction with other components, such as shock absorbers, to provide effective isolation and dampening of vibrations. By reducing the amount of vibration and shock that is transferred through the washing machine to the surrounding environment, air springs can help to reduce noise and equipment wear, increase machine efficiency, and improve overall product quality.

Air springs are particularly effective in washing machines because they are able to operate at high frequencies, which is important for isolating the vibrations generated during the high-speed spinning cycles. Additionally, air springs are lightweight and durable, which makes them well-suited for use in washing machine equipment.

Overall, air springs are an important component in many different types of industrial equipment, including washing machines, and can help to improve efficiency, reduce noise, and enhance product quality.

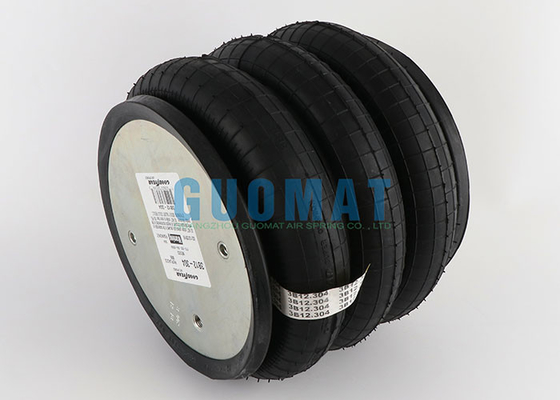

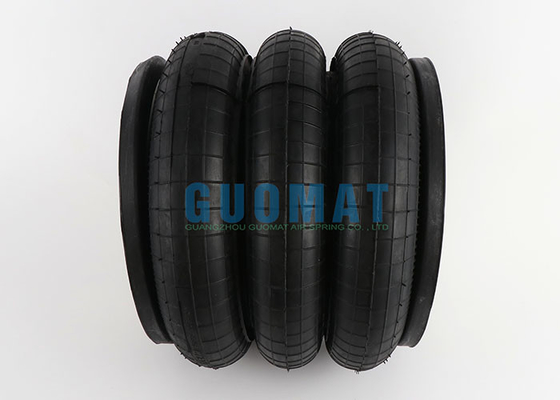

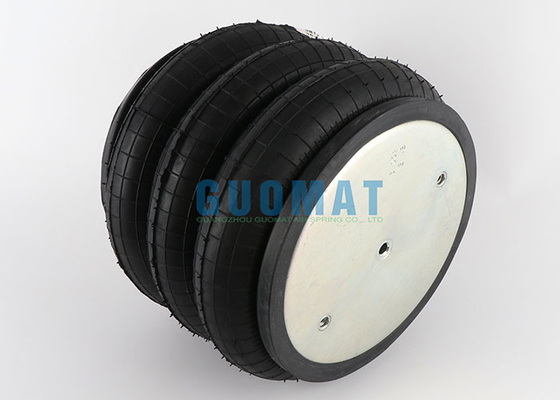

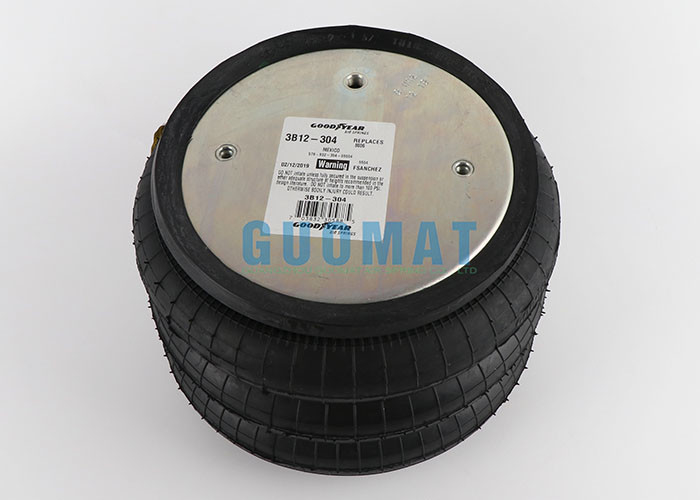

Triple Convoluted Goodyear Air Spring
