| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B14-371 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $99.9-159.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Warranty: | 12 Months | Material: | Rubber + Iron |
|---|---|---|---|
| Origin: | Mexico | Brand: | GOODYEAR |
| OEM No.: | 1B14-371 | Type: | Single Convoluted Type |
| Package: | According To Customer Requirement | Quality: | High-Quality |
| High Light: | Goodyear Super Cushion Air Spring,1B14-371 Super Cushion Air Spring,578-91-3-352 Super Cushion Air Spring |
||
Goodyear Super Cushion Air Spring 1B14-371 Single Convoluted Rubber Bellows 578-91-3-352
Product Description
Original Manufacturer: GOODYEAR
Country of Origin: Mexico
| Goodyear Number | 1B14-371 |
| Goodyear Number | 1B14 371 |
| Goodyear Number | 1B 14-371 |
| Goodyear Number | 1B 14 371 |
| Goodyear Number | 578-91-3-352 |
| Goodyear Number | 578 91 3 352 |
| Goodyear Number | 578913352 |
|
Goodyear Number |
578-912-371 |
|
Goodyear Number |
578 912 371 |
|
Goodyear Number |
578912371 |
Cross Reference Number
Contitech Part Number: FS530-11
Contitech Part Number: FS 530-11
Contitech Part Number: FS530-11 CI G3/4
Contitech Part Number: FS 530-11 CI G3/4
Firestone Part Number: W01M586100
Firestone Part Number: W01-M58-6100
Firestone Part Number: W01 M58 6100
Firestone Part Number: WO1M586100
Firestone Part Number: WO1-M58-6100
Firestone Part Number: WO1 M58 6100
1B14-371 Goodyear Air Spring Technical Data
Top Cover Plate Diameter: 289mm
Air Fitting: G3/4
Distance Between Air Fitting and Threaded Hole: 79.4mm
The Distance Between the Threaded Holes: 158.8mm
Bottom Cover Plate Diameter: 289mm
The Distance Between the Threaded Holes: 158.8mm
The Rubber Bellow Max.Diameter: 406mm
The Rubber Bellow Natural Diameter: 380mm
Rubber Bellows Natural Height : 120 mm
The Working Stroke : MAX 160 mm to MIN 81 mm
Bumper Block: Without Bumper Block
Girdle Ring/Girdle Hoop: With Girdle Hoop :Without Girdle Hoop
Application of Air Spring in Papermaking Equipment
Air springs can be used in papermaking equipment to support and control the movement of the heavy paper rolls. These air springs are also known as pneumatic springs and work by using compressed air to provide a cushioning effect, reducing shock and vibration from the paper rolling process. By using air springs, paper manufacturers can improve the quality of their products and increase production efficiency. Additionally, they may help reduce maintenance costs, as they require less maintenance compared to traditional mechanical springs. Air springs are also used in other applications such as vehicle suspension systems and industrial machinery.
Goodyear Single Concoluted Air Spring
|
Bellows No. |
Goodyear No. |
Contitech No. |
Firestone No. |
|
578-91-3-352 |
1B14-358 |
FS530-14 339 |
W01-358-7112 |
|
578-91-3-351 |
1B14-350 |
FS530-14 442 |
W01-358-7013 |
|
1B14-351 |
FS530-14 446 |
W01-358-7104 |
|
|
1B14-351 |
FS530-14 447 |
W01-358-7105 |
|
|
1B14-372 |
FS530-14 |
W01-M58-6369 |
|
|
578-91-3-301 |
1B12-322 |
FS330-11 467 |
W01-358-6994 |
|
1B12-301 |
FS330-11 468 |
W01-358-7009 |
|
|
1B12-313 |
FS330-11 474 |
W01-358-7008 |
|
|
1B12-318 |
FS330-11 |
W01-M58-6011 |

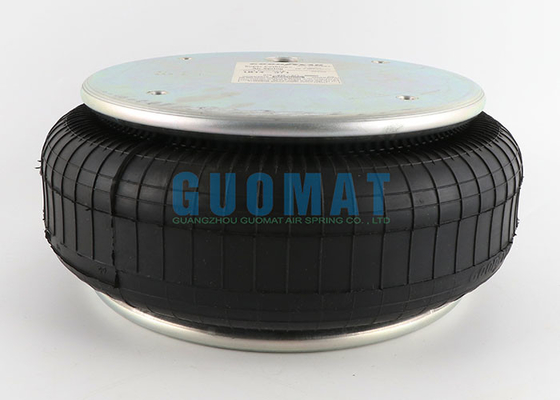

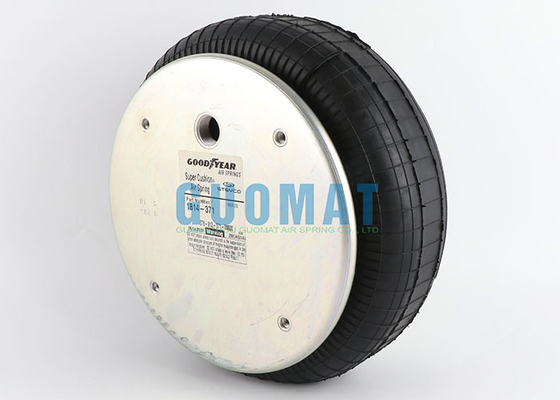

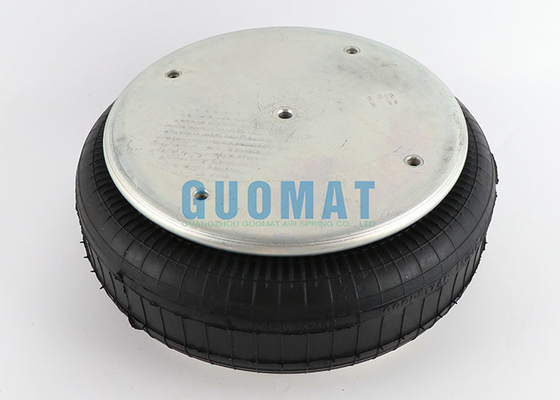

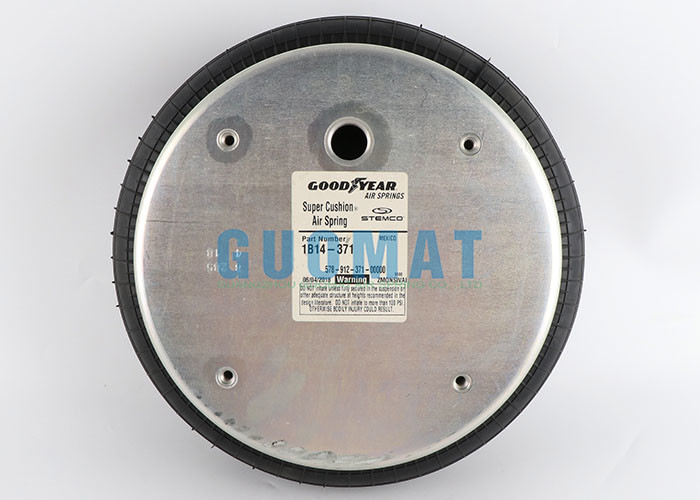

The Real Pictures
