| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 4.5X2 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-99.9/pc |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Spring Material: | Rubber+Steel | Warranty: | 1 Year |
|---|---|---|---|
| Quality: | 100% Tested | Application: | Industrial Machine |
| Type: | Double Convoluted Type | Transport Package: | Cartons |
| Packing Size: | 24*24*24(cm) | OEM Number: | W01R584051 |
| High Light: | Double Convoluted Air Bag Steel,1/2X2 Double Convoluted Air Bag,Double Convoluted Air Spring Assembly |
||
4 1/2X2 Steel Double Convoluted Air Bag SP2441 Dunlop Flange Connection Air Spring Assembly
GUOMAT 41/2X2 Industrial Air Spring Cross OEM Number
GUOMAT Part Number: 4 1/2 X 2
GUOMAT Rubber Bellows: 4 1/2 X 2
Firestone Part Number: 4051
Firestone Part Number: W01R584051
Firestone Part Number: W01 R58 4051
Firestone Part Number: W01-R58-4051
Firestone Part Number: WO1R584051
Firestone Part Number: WO1 R58 4051
Firestone Part Number: WO1-R58-4051
Dunlop Part Number: SP 2441
Dunlop Part Number: SP2441
Dunlop Part Number: 41/2X2
Dunlop Part Number: 4 1/2'' X 2
Dunlop Rubber Bellows: SP2441
Contitech Part Number: FD 44-10 DI
Contitech Part Number: FD44-10 DI
Contitech Part Number: fd 44-10 DI
Contitech Part Number: fd44-10 DI
Norgren Part Number: PM/31042
Norgren Part Number: PM31042
Norgren Part Number: PM 31042
Parker Part Number: 9109401

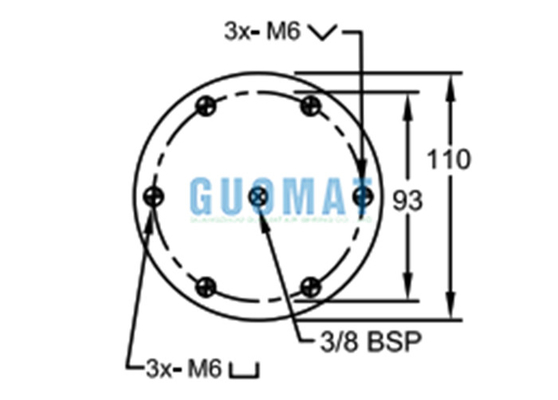

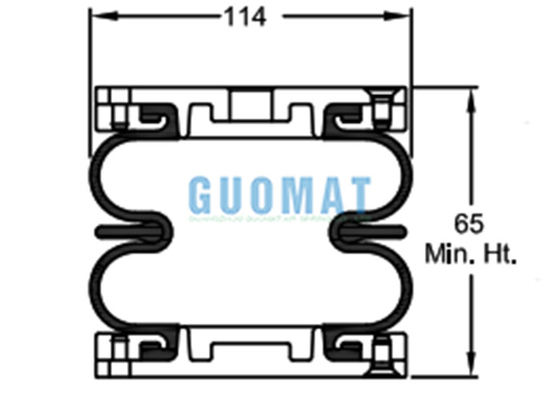

4.5X2 GUOMAT Industrial Air Bags Technical Parameters
Air Inlet: 3/8BSP
Screw/Blind Nut: M6
Number of Screws on Top: 6 pieces
Cover Plate Diameter: 110mm
Screw Center Distance: 93mm
Rubber Bellows Diameter: 114mm
Min.Height: 65mm
|
Part No. |
Firestone No. |
Dunlop No. |
Type |
Outer Dia. |
Min.Height |
|
4 1/2 X1 |
W01-R58-4043 |
SP2008 |
Rubber |
114mm |
33mm |
|
4 1/2 X1 |
W01-R58-4050 |
SP2334 |
Assembly |
114mm |
45mm |
|
4 1/2 X2 |
W01-R58-4051 |
SP2441 |
Assembly |
114mm |
65mm |
|
4 1/2 X2 |
W01-R58-4076 |
SP1457 |
Rubber |
114mm |
53mm |
|
4 1/2 X3 |
W01-R58-4035 |
SP2895 |
Assembly |
125mm |
100mm |
|
6X1 |
W01-R58-4078 |
SP2913 |
Assembly |
153mm |
64mm |
|
6X2 |
W01-R58-4036 |
SP543 |
Rubber |
153mm |
127mm |
|
6X2 |
W01-R58-4070 |
SP2917 |
Assembly |
153mm |
73mm |
|
8X1 |
W01-R58-4085 |
SP1218 |
Rubber |
203mm |
50mm |
|
8X2 |
W01-R58-4045 |
SP253 |
Rubber |
203mm |
72mm |
|
10X2 |
W01-R58-4048 |
SP255 |
Rubber |
254mm |
165mm |
|
10X2 |
W01-R58-4092 |
SP1538 |
Rubber |
280mm |
64mm |
|
10X3 |
W01-R58-4047 |
SP258 |
Rubber |
254mm |
100mm |
|
12X2 |
W01-R58-4044 |
SP256NB |
Rubber |
304mm |
68mm |
|
12X3 |
W01-R58-4046 |
12X3 |
Rubber |
304mm |
100mm |
How do I Choose the Right Industrial Air Spring
Choosing the right industrial air spring will depend on the specific application and requirements of your industrial equipment. Some factors to consider include the load capacity of the equipment, the operating environment (such as temperature and vibration), and the required spring rate (the amount of force required to compress or extend the spring). It is important to choose an air spring that is designed to handle the weight and specific requirements of your equipment.
When selecting an air spring, consider consulting with a manufacturer or supplier who can provide recommendations based on your specific needs. They can also provide information on the different types of air springs available, such as rolling lobe, convoluted, and sleeve types.
Additionally, make sure to consider the overall quality and durability of the air spring to ensure it will last and perform reliably over time. Factors such as material quality, construction, and design can impact the longevity and performance of an air spring.

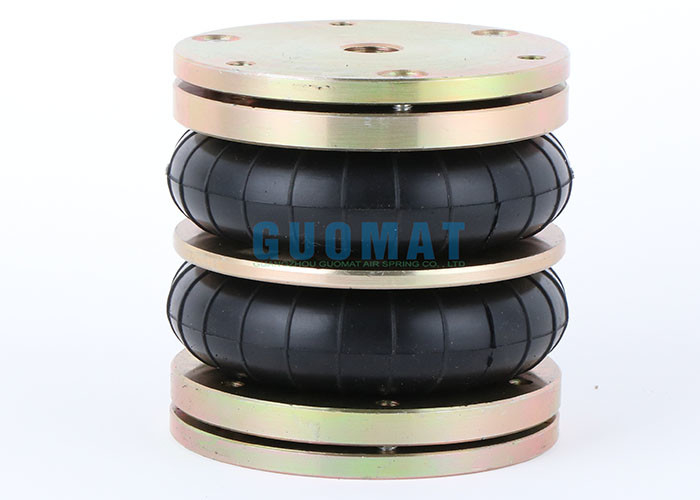

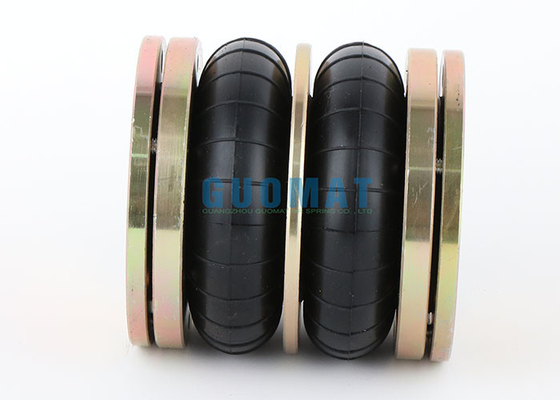

4 1/2X2 Steel Double Convoluted Air Bag Pictures
