W01-358-7431/W013587431 Firestone Double Convoluted Air Spring Drying Industrial

W01-358-7431/W013587431 Firestone Double Convoluted Air Spring Drying Industrial Air Actuator


Product Description

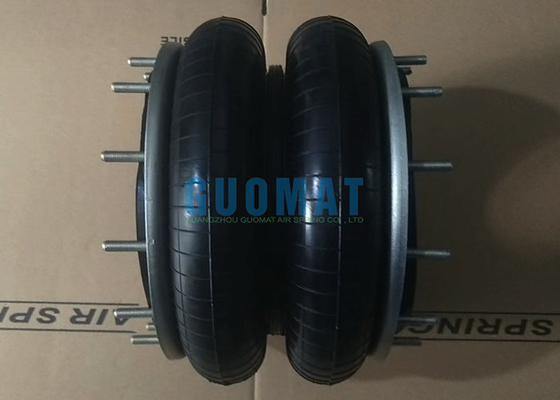

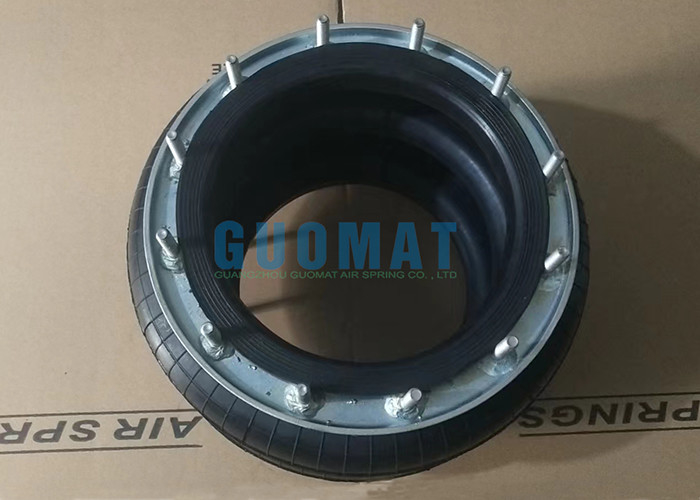

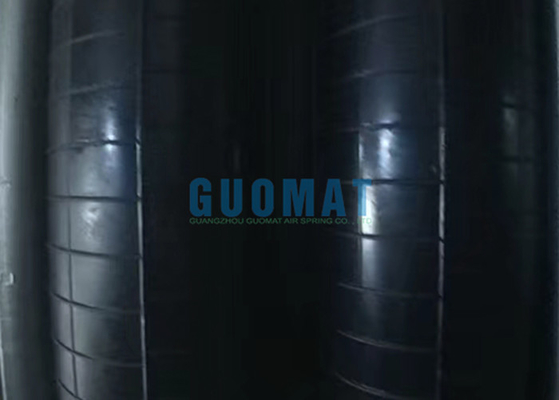

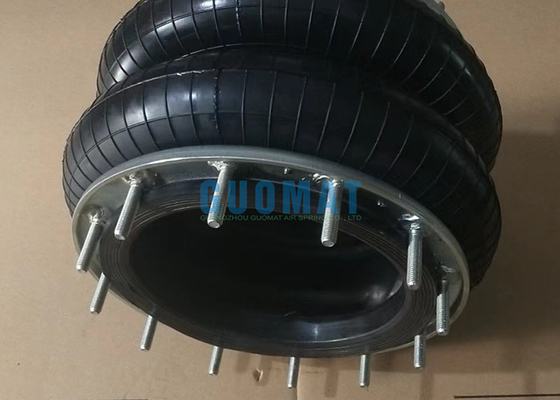

Item: Double Convoluted Type Industrial Air Spring

Brand: GUOMAT

Model Number: 2H7431

Warranty: 1 Year

Material: Natural Rubber

Failure Testing: ≥3 millions

Temperature: -40°C bis +70°C

Style: 2-Ply Standard Cord

GUOMAT 2H7431 Cross Reference

Firestone Part Number: 7431

Firestone Part Number: W013587431

Firestone Part Number: W01 358 7431

Firestone Part Number: W01-358-7431

Firestone Part Number: WO13587431

Firestone Part Number: WO1 358 7431

​Firestone Part Number: WO1-358-7431

W01-358-7431 Firestone Industrial Air Spring Technical Data

How to Choose the Right Industrial Air Spring
Choosing the right industrial air spring depends on several factors, such as the application, load weight, spring dimensions, and operating conditions.

• Determine the load weight: Air springs are designed to support a specific weight range. Make sure to measure the weight of your load and select the air spring accordingly.
• Choose the right shape and dimensions: Air springs come in different shapes and sizes, including cylinder, convoluted, and rolling lobe. Choose the air spring shape and dimensions that fit your specific application.
• Consider operating conditions: Air springs must operate within a certain temperature and pressure range. Make sure to select an air spring that can handle your specific operating conditions.

​

Firestone & Goodyear Air Spring Cross Information

GUOMAT 2H7431 Drawing Design
