| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 3B7304 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $69.9-79.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Item Name: | Industrial Air Spring | Warranty: | 1 Year Warranty |
|---|---|---|---|
| Quality: | 100 % Tested | Type: | With Flange |
| Style: | 321 | Assembly Weight: | 54.5 Lbs |
| Firestone: | W01-358-7304 | Supersedes: | 7320 |
| High Light: | Firestone Air Spring With Flange,Industrial Air Spring With Flange,W01-358-7304 Firestone Air Spring |
||
W01-358-7304 Firestone Triple Convoluted Rubber Air Bellows Suppliers 321 Type Industrial Air Spring
Product Description
GUOMAT 3B7304 reference W013587304 Firestone air spring assembly. The industrial air spring composed of natural rubber and flange ring plays the role of shock absorption and buffering.
Manufacturer Part Number
Firstone Manufacturer Part Number W013587304
Firstone Manufacturer Part Number W01-358-7304
Firstone Manufacturer Part Number W01 358 7304
Firstone Manufacturer Part Number WO13587304
Firstone Manufacturer Part Number WO1-358-7304
Firstone Manufacturer Part Number WO1 358 7304
Ottawa Manufacturer Part Number 53500516
Holland Hitch Manufacturer Part Number 6764
Supersedes 7320
Firestone 7304
Firestone Flexmember 321C

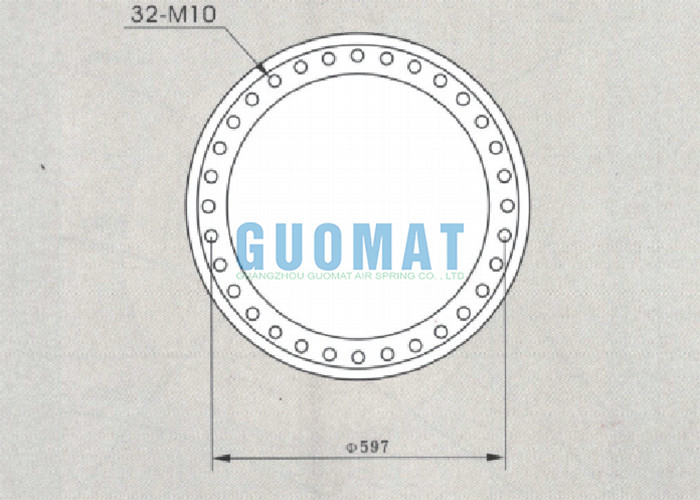

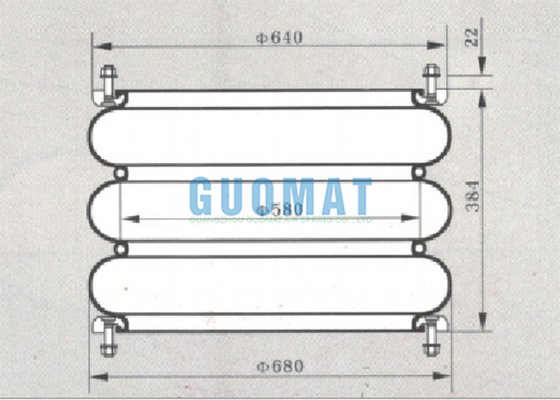

3B7304 Industrial Air Spring Technical Data
Top Diameter: Ø640mm
The Screw/Nuts: 32 pcsXM10
Screw/Nuts Height: 22mm
Rubber Bellows Diameter: Ø680mm
Air Spring Height: 384mm
Center Distance Between Screws: Ø597mm
|
Firestone Air Spring No. |
Description |
|
|
W01-358-7304 |
Ribbed neck aluminum bead rings(equal spacing),1 7/8 bolts,nuts,washers |
Style 321
Two Ply Hight Strength Bellows |
|
W01-358-7306 |
Ribbed neck aluminum bead rings(equal spacing),1 7/8 bolts,nuts,washers |
|
|
W01-358-7319 |
Ribbed neck aluminum bead rings(equal spacing),1 7/8 bolts,nuts,washers |
|
|
W01-358-7919 |
Rubber Bellows only |
|
|
Air Spring Assembly Weight |
54.5lbs |
|
|
Force to collapse to minimum height(@)0 PSIG |
180lbs |
|
Notice
Do not inflate components when unrestricted. Assemblies must be restrained by suspension or other appropriate structures. Do not inflate beyond pressure recommended in design literature. Misuse or excessive inflation could cause the assembly to burst resulting in property damage or serious personal injury.
Firestone's other Triple Industrial Air Spring List( 38 Bellow Type)
|
Bellow No. |
Firestone No. |
Rubber Bellows Dia.(inch) |
Min.HT.(inch) |
Replaces |
|
38 |
W01-358-7990 |
11.70 |
4.55 |
Watson&Chalin AS-0048 |
|
38 |
W01-358-7994 |
11.70 |
5.10 |
Watson&Chalin AS-0019-1F |
|
38 |
W01-358-7995 |
11.70 |
4.55 |
Watson&Chalin AS-0048-1F |
|
38 |
W01-358-7996 |
11.70 |
4.55 |
Granning 8221 |
|
38 |
W01-358-7998 |
11.70 |
4.55 |
Hendrickson Aux.001560 |
|
38 |
W01-358-8008 |
11.70 |
4.55 |
Ridewell 1003588008C |
|
38 |
W01-358-8010 |
11.70 |
4.20 |
Ridewell 1003588010C |
|
38 |
W01-358-8014 |
11.70 |
4.50 |
Ridewell 1003588014C |
|
38 |
W01-358-8016 |
11.70 |
4.55 |
Ridewell 1003588016C |
|
38 |
W01-358-8018 |
11.70 |
4.55 |
Reyco 93AR |
|
38 |
W01-358-8027 |
11.7 |
4.55 |
Suspensions Inc.200117 |
|
38 |
W01-358-8030 |
11.70 |
5.10 |
Ridewell 1003588030C |
|
38 |
W01-358-8032 |
11.70 |
4.55 |
Hendrickson Trailer S12405 |
|
38 |
W01-358-8033 |
11.70 |
4.55 |
Hendrickson Trailer S14487 |
W01-358-7304 Firestone Rubber Air Bellow Picture
