| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B6105 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Name: | Industrial Air Spring | Warranty: | 12 Months |
|---|---|---|---|
| Material: | Rubber + Steel | MOQ: | 10 Pieces |
| Firestone Style: | 255-1.5 | The Stroke: | 65mm-175mm |
| Gas Hole: | 3/8NPT | Spring Type: | Double Convoluted Type Air Spring |
| High Light: | W01-M58-6105 Rubber Air Spring,Bellow Style 255 Rubber Air Spring,Rubber Air Spring For Wrapping Machine |
||
Bellow Style 255-1.5 Firestone Double Convoluted Rubber Air Spring W01-M58-6105 For Wrapping Machine
Product Description
GUOMAT 2B6105 refers to the specifications of Firestone W01-M58-6105 double convoluted air spring. Applied to industrial equipment, air spring technology is applied to the shock absorption of industrial equipment, which effectively improves the working efficiency of the equipment and the safe service life of the equipment.
Cross Reference Number
Firestone Manufacturer Number: W01M586105
Firestone Manufacturer Number: W01-M58-6105
Firestone Manufacturer Number: W01 M58 6105
Firestone Manufacturer Number: WO1M586105
Firestone Manufacturer Number: WO1-M58-6105
Firestone Manufacturer Number: WO1 M58 6105
Firestone Bellow Number: 255-1.5
GUOMAT NO. 2B6105 Industrial Rubber Air Spring Technical Data
Cover Plate
Top Cover Plate Diameter: 111mm
Air Inlet: 3/8NPT
Bolt/Stud: 2X3/8-16UNC
The Distance Between Air Hole and Bolt/Stud: 22mm
Center Distance Between Bolts/Studs: 44.5mm
Bottom Cover Plate: 111mm
Center Distance Between Threaded Holes: 44.5mm
Rubber Bellows
The Rubber Bellows Max. Diameter: 165mm
Max. Height: 175mm
Min.Height: 65mm
Firestone Style 255-1.5 Industrial Air Bag Assembly
|
|
Description |
Firestone No. |
|
Style 255-1.5 Two Ply Bellows |
Blind nuts,1/4BSP |
W01-M58-6105 |
|
Socket head aluminum bead rings(bolts,nuts,washers not included,use cap screws) |
W01-358-6833 |
|
|
Rubber Bellows only |
W01-358-0048 |
List of Firestone Double Convoluted Industrial Air Springs
|
Firestone Assembly No. |
Bellow No. |
Firestone Assembly No. |
Bellow No. |
|
W01-M58-6160 |
25 |
W01-358-0142 |
26 |
|
W01-358-0030 |
25 |
W01-M58-6187 |
274 |
|
W01-358-0025 |
25 |
W01-M58-6188 |
274 |
|
W01-M58-6400 |
224 |
W01-M58-6185 |
274 |
|
W01-358-5101 |
224 |
W01-M58-6186 |
274 |
|
W01-358-3407 |
224 |
W01-M58-6990 |
274 |
|
W01-M58-6353 |
26 |
W01-358-0297 |
274 |
|
W01-M58-6387 |
26 |
W01-M58-6192 |
202 |
|
W01-M58-6988 |
26 |
W01-M58-6190 |
202 |
|
W01-M58-6183 |
20-2 |
W01-358-0305 |
20-2 |
|
W01-M58-6194 |
20-2 |
W01-M58-7524 |
22 |
|
W01-M58-6880 |
20-2 |
W01-358-0226 |
22 |
|
W01-M58-6381 |
22 |
W01-M58-6212 |
210 |
|
W01-M58-6382 |
22 |
W01-M58-6210 |
210 |
|
W01-M58-6200 |
22 |
W01-M58-6976 |
210 |
|
W01-M58-6201 |
22 |
W01-358-7928 |
210 |
|
W01-M58-6384 |
22-1.5 |
W01-M58-6383 |
22-1.5 |

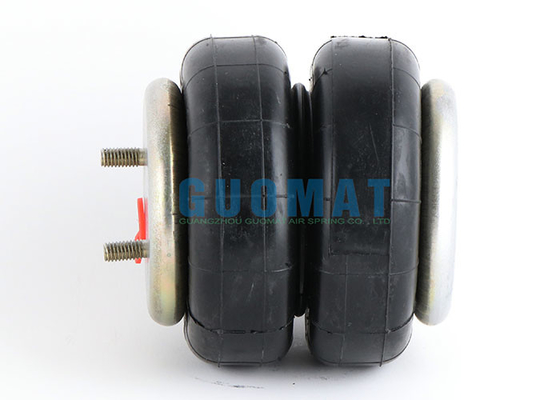

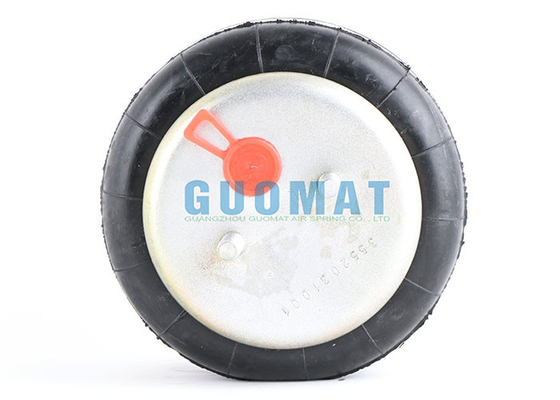

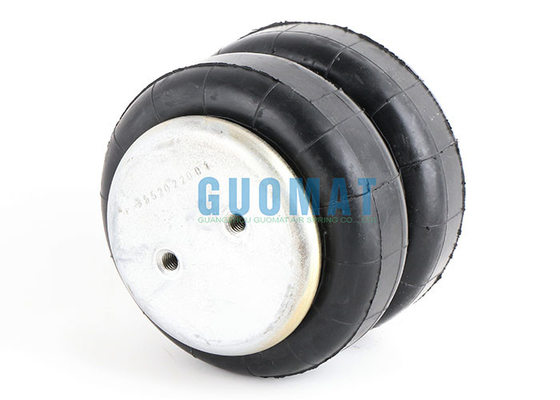

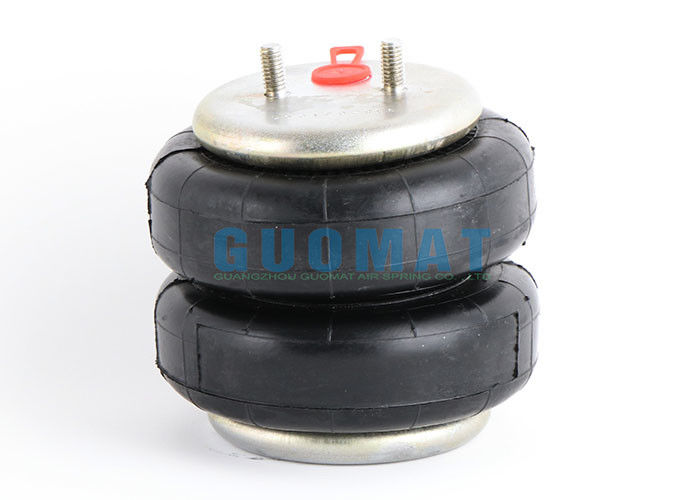

W01-M58-6105 Firestone Air Spring Real Pictures
