| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B7731 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Warranty: | 1 Year Warranty | Quality: | 100 % Tested |
|---|---|---|---|
| Material: | Rubber Bellow And Aluminum Cover | Application: | Industrial Equipment |
| Firestone: | W01-358-7731 | Air Hole: | 1/4NPTF,Slant Air Hole |
| Spring Weight: | 1.7KG | Package: | Standard Packing Or Customized |
| High Light: | Industrial Air Spring W01-358-7731,Pneumatics Firestone Bellow Industrial Air Spring |
||

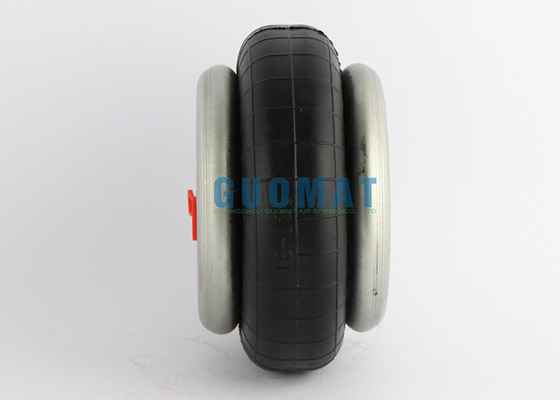

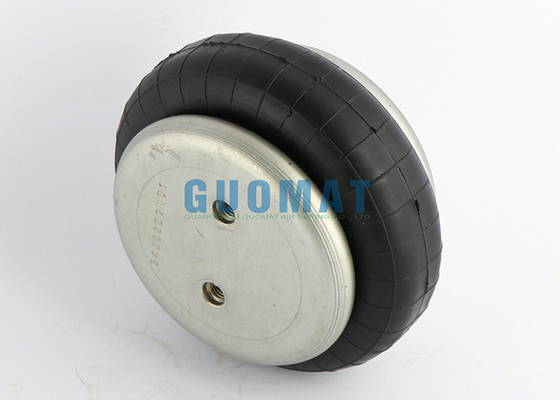

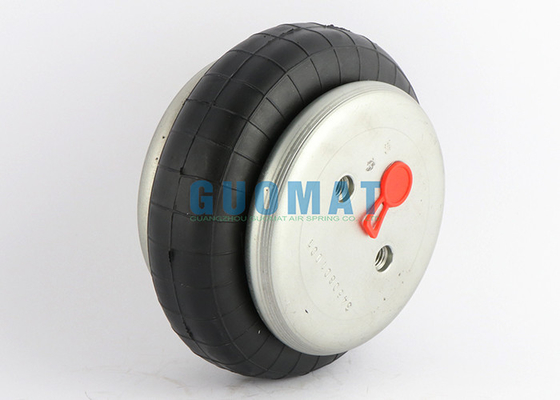

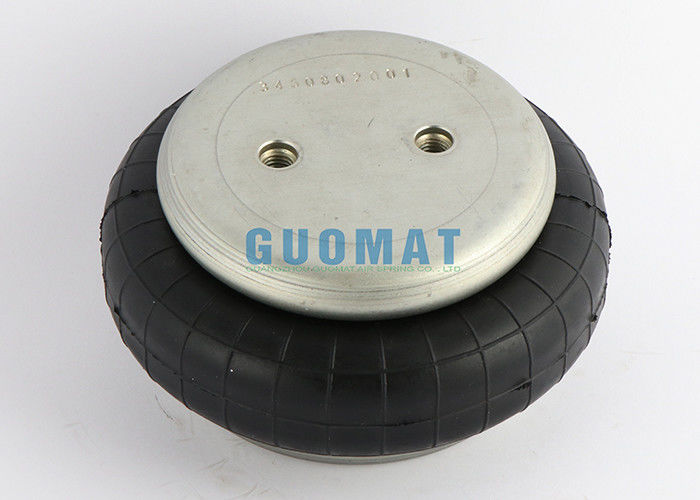

W01-358-7731 Helper Springs Pneumatics Firestone Bellow 131 Type Rubber Industrial Air Spring
Product Parameter Description
Top and Bottom Cover Plate Diameter: 115mm
Pneumatic Connection: 1/4NPTF
The Threaded Hole: 2X3/8-16UNC
Center Distance Between Threaded Holes: 44.5mm
Distance Between Threaded Hole and Air Hole: 22mm
Rubber Bellow Max.Diameter: 165mm
Stroke: 50mm-115mm
Operating Pressure: 0 bar---8 bar
Information on operating and pilot media: Operation with oil lubrication not possible
Corrosion Resistance class(CRC): 0-No corrosion stress
Ambient Temperature: -40℃...70℃
Type of Mounting: with Internal Thread
Housing Material: Cast Aluminum
GUOMAT 1B7731 Industrial Air Spring Cross Reference Number
Firestone Part Number: W013587731
Firestone Part Number: W01-358-7731
Firestone Part Number: W01 358 7731
Firestone Part Number: WO13587731
Firestone Part Number: WO1-358-7731
Firestone Part Number: WO1 358 7731
Firestone Bellow Number: 131
Firestone Bellow Number: Style 131
Firestone Air Spring with Same Bellow Number 131
|
Firestone No. |
Description |
|
|
W01-358-7731 |
Blind Nuts,1/4NPT |
Style 131 Two Ply Bellows |
|
W01-358-7742 |
Blind Nuts,3/4NPT |
|
|
W01-358-0127 |
Socket head aluminum bead rings(bolts,nuts,washers not included-use 1/4 cap screws) |
|
|
W01-358-7729 |
3/4NPT(only)upper plate,blind nuts lower plate |
|
|
W01-358-0131 |
Rubber Bellows only |
|
Advantages of Rubber Air Spring
1. Low Cost
2. Wide Size Range
3. Durable for Long Life
4. No Maintenance or Lubrication Required
5. No Internal Rod or Piston
6. Friction Free for Immediate Response
7. Flexible Media
8. Angular Capability
9. Side Loading Capability
10. Compact Starting Height
11. Factory Sealed and Tested
GUOMAT Also Supplies other Industrial Air Springs with Reference to Firestone
|
Manufacturer |
GUOMAT |
Manufacturer |
GUOMAT |
|
FIRESTONE W01-358-7001,1/4NPT |
7001 |
FIRESTONE W01-358-7035,1/4NPT |
7035 |
|
FIRESTONE W01-358-7008,1/4NPT |
7008 |
FIRESTONE W01-358-7039,1/4NPT |
7039 |
|
FIRESTONE W01-358-7009,1/4NPT |
7009 |
FIRESTONE W01-358-7040,1/4NPT |
7040 |
|
FIRESTONE W01-358-7011,3/4NPT |
7011 |
FIRESTONE W01-358-7042,3/4NPT |
7042 |
|
FIRESTONE W01-358-7012,3/4NPT |
7012 |
FIRESTONE W01-358-7043,3/4NPT |
7043 |
|
FIRESTONE W01-358-7019,Rubber Bellows |
7019 |
FIRESTONE W01-358-7047,3/4NPT |
7047 |
|
FIRESTONE W01-358-7023 |
7023 |
FIRESTONE W01-358-7080,1/4NPT |
7080 |
|
FIRESTONE W01-358-7025,1/4NPT |
7025 |
FIRESTONE W01-358-7091,1/4NPT |
7091 |
|
FIRESTONE W01-358-7030,3/4NPT |
7030 |
FIRESTONE W01-358-7092,3/4NPT |
7092 |
