Rubber Air Cushion S-200-3R Triple Convoluted Industrial Air Spring For Yokohama Punching Machine

Name: Rubber Air Cushion S-200-3R Triple Convoluted Industrial Air Spring For Yokohama Punching Machine
Brand: GUOMAT
SKU: F-200-3
Price: 69.9 USD
Availability: InStock
Rating: 4.5 (108 reviews)

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	F-200-3

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$69.9-99.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Name:	Yokohama Helper Springs	Warranty:	12 Months
Material:	Rubber	Usage:	Industrial Machine
Bellows Type:	Triple Convolution	Weight:	4KG
Transport Package:	Cartons	Function:	Reduce Vibration
High Light:	Triple Convoluted Industrial Air Spring , S-200-3R Industrial Air Spring

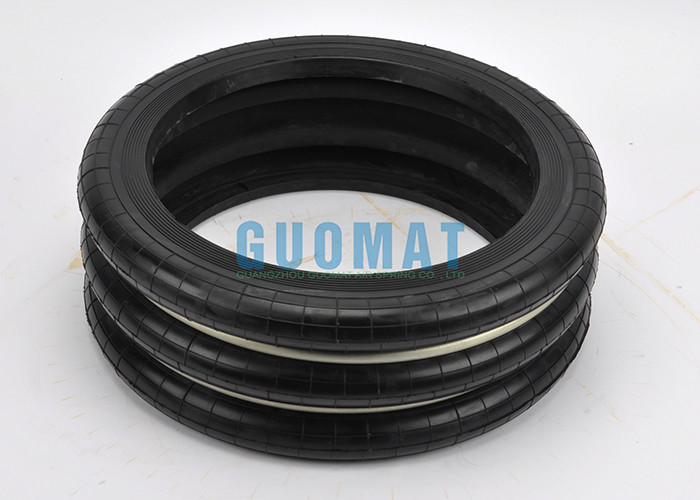

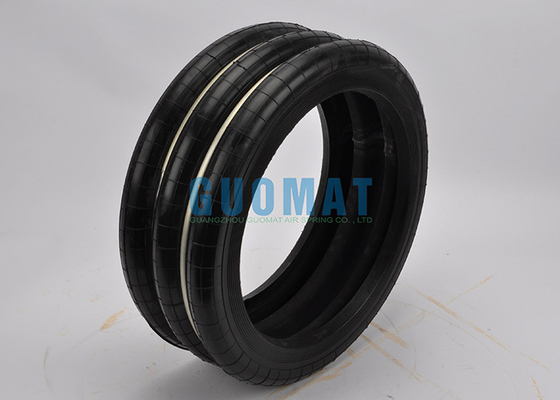

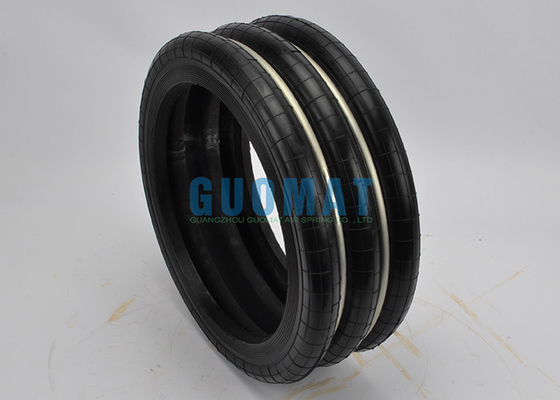

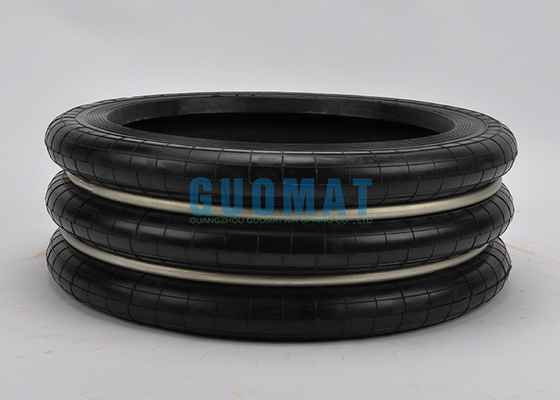

Rubber Air Cushion S-200-3R Triple Convoluted Industrial Air Spring For Yokohama Punching Machine

Product Description

Item: Punching Press Yokohama Air Spring

Material: Rubber

Warranty: 12 Months

GUOMAT Number: F-200-3

GUOMAT Number: F 200 3

YOKOHAMA Number: S-200-3R

YOKOHAMA Number: S-200-3

YOKOHAMA Number: S 200 3R

YOKOHAMA Number: S 200 3

YOKOHAMA Number: S200-3R

YOKOHAMA Number: S200-3

GUOMAT F-200-3 Rubber Air Spring Technical Data

Design Height(mm): 152mm
Max.Height(mm): 232mm
Min.Height(mm: 82mm
Common Max.Travel(mm): ±53
Compression Max Outside Diameter(mm): 260mm
Effective Area(cm2):315cm2
Volume(L): 5.2L
Load(KN): 15.4KN
Dynamic Spring Constant(n/mm): 235n/mm
Natural Vibration Frequency(Hz): 2.0Hz
Max.Internal Pressure(Mpa): 0.88Mpa
Internal Pressure Failure(Mpa): 2.9-3.9Mpa

Application

Press Die Pad
Tail brakes for handling devices
Tension device for conveyor belt
Balancers for vibrating tables
Stick lifting for brake test bench
Lifts for roller conveyors
Paper machine stick pressure
Buffers for elevators
Waterway valve

Features of Air Springs

Maintenance is very simple: do not need to add lubricating oil to use
Long service life: excellent durability due to low rubber deformation
The installation height can be reduced: the installation height can be reduced and the stroke can be effectively increased
Good shockproof effect: large load and soft elasticity, good shockproof effect
Easy installation: simple structure, easy installation and removal

Model	Height H			Commonly Maximum	Maximum outer diameter wwhen compressed	Standard height, approximate value when internal pressure is 0.49Mpa
Model	Design Height	Max. Height	Min. Height	Commonly Maximum	Maximum outer diameter wwhen compressed	Effective Area	Volume	Load	Dynamic Spring Constant	Natural Frequency
F-200-4	206mm	311mm	111mm	±70	260mm	315cm2	7.2L	15.4KN	177n/mm	1.7Hz
F-200-3	152mm	232mm	82mm	±53	260mm	315cm2	5.2L	15.4KN	235n/mm	2.0Hz
F-200-2	98mm	148mm	53mm	±35	260mm	315cm2	3.2L	15.4KN	373n/mm	2.5Hz

What about Our Package & Shipping Terms?
Package: According to customer requirement
Shipping: Qingdao Port,Huangpu Port , Shenzhen Port
Payment Term: L/C , T/T , West Union , PayPal
Delivery Time: 3-8 working days

Rubber Air Cushion S-200-3R Triple Convoluted Industrial Air Spring For Yokohama Punching Machine 0
