| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B5330 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Warranty: | 12 Months | Material: | Steel+Rubber |
|---|---|---|---|
| Color: | Black | Function: | Reduce Shock |
| Air Inlet: | 1/4" NPT Offset Port | Package: | Cartons |
| Use Range: | Industrial Machine | OEM Number: | FS 330-11 474 |
| High Light: | W01-358-7008 Rubber Air Spring,Industrial Bellows Rubber Air Spring |
||
Replace Firestone Industrial Bellows Actuator W01-358-7008 Easy Installation Rubber Air Spring
Product Description
Brand: GUOMAT
Item: 1B5330
Material: Rubber+Steel
Warranty: 12 Months
Type: Air Spring
MOQ: 10 Pieces
Quality: 100% Test
Cross Reference Number
|
Manufacturer |
Manufacturer Number |
|
Firestone |
W01-358-7008,W013587008,W01 358 7008 |
|
Contitech |
FS 330-11 474,FS330-11 474 |
|
Goodyear |
1B12-300/313 |
|
Triangle |
6374 |
|
Triangle |
4474 |
|
Holland(Neway) |
90557226 |
GUOMAT 1B5330 Single Convoluted Air Spring Technical Data
Bead Plate Diameter: 231mm
Air Inlet Type: 1/4NPTF
Threaded Hole: 3/8-16UNC
Center Distance Between Threaded Holes: 157.5mm
Distance Between Threaded Hole and Air Inlet: 73mm
The Rubber Bellows Max.Diameter: 325mm
The Stroke: 55mm-160mm
Maximum Height: 160mm
Minimum Height: 55mm
Compression Height: 105mm
Air Springs For Jacks
Air springs are a type of suspension component commonly used in vehicles, including jacks. They use compressed air to support and raise the weight of the vehicle or equipment, providing a smoother ride and better load-carrying capabilities. There are different types of air springs used in jacks, ranging from triple bag air jacks to inflatable jacks. Additionally, air jacks or air bag jacks are commonly used in shops, particularly by auto mechanics, for lifting cars and trucks when performing repairs and maintenance.
Firestone Industrial Air Spring
|
Firestone NO. |
Firestone Style NO. |
Firestone NO. |
Firestone Style NO. |
|
W01-358-0010 |
STYLE 16 |
W01-358-0119 |
STYLE 119 |
|
W01-358-0017 |
STYLE 16 |
W01-358-0127 |
STYLE 131 |
|
W01-358-0030 |
STYLE 268(formerly 25) |
W01-358-0131 |
STYLE 131 |
|
W01-358-0048 |
STYLE 267-1.5(formerly 255-1.5) |
W01-358-0133 |
STYLE 116 |
|
W01-358-0100 |
STYLE 110 |
W01-358-0134 |
STYLE 19 |
|
W01-358-0112 |
STYLE 110 |
W01-358-0135 |
STYLE 113 |
|
W01-358-0118 |
STYLE 115 |
W01-358-0138 |
STYLE 274(formerly 20) |
|
W01-358-0142 |
STYLE 26 |
W01-358-0213 |
STYLE 21 |
|
W01-358-0147 |
STYLE 138-1.5 |
W01-358-0226 |
STYLE 22 |
|
W01-358-0150 |
STYLE 113-1 |
W01-358-0231 |
STYLE 128 |
|
W01-358-0205 |
STYLE 203 |
W01-358-0259 |
STYLE 22-1.5 |
About Payment and Shipment
Payment
1.We have many payment methods, you can choose any payment method: T/T,L/C,Western Union,PayPal
2. After completing the payment, please send us the bill for verification.
Shipment
1.Our company cooperates with a variety of logistics companies, the price is cheap, and the timeliness is fast.
2.According to the size of the order and the timeliness requirements, you can choose air, sea and express transportation.
3.When we have the waybill number, it will be sent to you for checking.

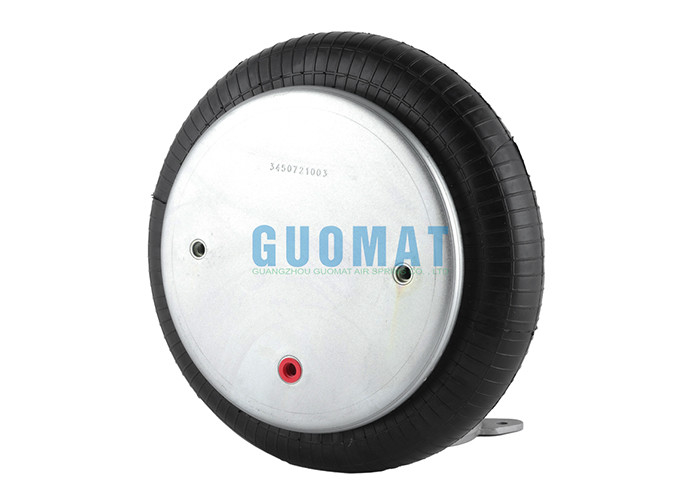

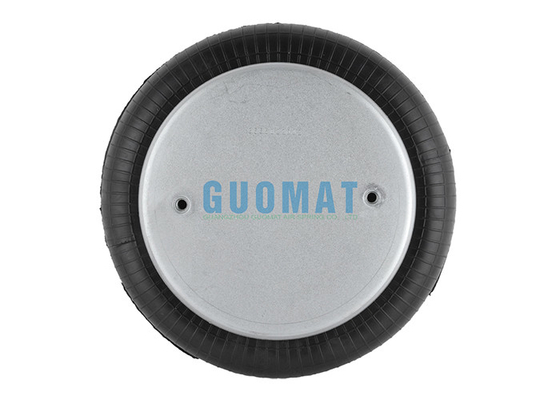

1B5330 GUOMAT Rubber Industrial Air Spring Real Pictures
