| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B130070 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber + Steel | Warranty: | 12 Months |
|---|---|---|---|
| Package: | Carton/Cartons | Function: | Reduce Shock |
| Pressure Ability: | 0.2-0.8 MPa | Contitech: | FS 50-5 |
| Natural Height: | 70mm | Weight: | 1.35KG |
| High Light: | FS50-5 CI Contitech Industrial Air Actuator,1B130070 Industrial Air Actuator,1B130070 Convoluted Air Spring |
||
FS50-5 CI Contitech Industrial Air Actuator GUOMAT 1B130070 Convoluted Air Spring For Printing Press
Product Description
|
Manufacturer |
Part Number |
|
GUOMAT |
1B130070 |
|
Contitech |
FS50-5 |
|
Contitech |
FS 50-5 |
|
Contitech |
FS50-5 CI |
|
Contitech |
FS 50-5 CI |
1B130070 Single Convoluted Industrial Air Spring Technical Data
Cover Plate
The Top Cover Plate Diameter: Ø114mm
The Bottom Cover Plate Diameter: Ø114mm
Blind Nut/Screw
Top Cover Plate Screw (Nut) Tooth: M10X15mm
Bottom Cover Plate Screw(Nut) Tooth: M10X15mm
Screw Center Distance Of Top Cover Plate: 44.5mm
Screw Center Distance Of Bottom Cover Plate: 44.5mm
Air Inlet/Gas Hole
Air Inlet: G1/4
Rubber Bellow
Rubber Bellow MAX Diameter: Ø145mm
Maximum Height: 83mm
Minimum Height: 53mm
The Stroke: 30mm
Effect Diameter: Ø100mm
FS50-5 Contitech Air Actuator Technical Data
|
Model |
FS50-5 CI |
|
Min.Design Height(in) |
2.01 in |
|
Max.Diameter(in) |
5.91 in |
|
Instal-Iation Space Required(in) |
6.50 in |
|
Max.Recommended Stroke(in) |
1.34 in |
|
Max.Stroke (in) |
1.73 in |
|
Convolution Part Variant |
1 |
|
Min.Height (Force at P=116 psi) |
2023.28 |
|
Halp Stroke(lb) (Force at P=116 psi) |
1213.97 |
|
Max.Stroke (lb) (Force at P=116 psi) |
494.58 |
|
Standard Air Inlet |
1/4NPT |
Applicable to the Following Machines
We supply more than 1000 types of air springs, supply perfect solution for air suspension systems of automotive, car testing equipments, It is also the basic and important part of other industries, such as chassis dynamometer, air jacks, lifting jack, picking tire machines and so on.
Industrial equipment for damping of the air spring technology application, effectively improving the work efficiency of equipment and the safe use of equipment life.Air spring is not like an ordinary cylinder type device having internal control rod, piston, or sliding type sealing device, thus greatly reducing the use of a pneumatic or hydraulic cylinder cost, for customers to win more economic benefits.
Characteristic.
● The low cost, wide range of specifications
● The long service life, no maintenance and lubrication, without the need for internal control rod or piston
● no friction effect, soft medium
● The bending capacity, lateral load capacity, compact original height

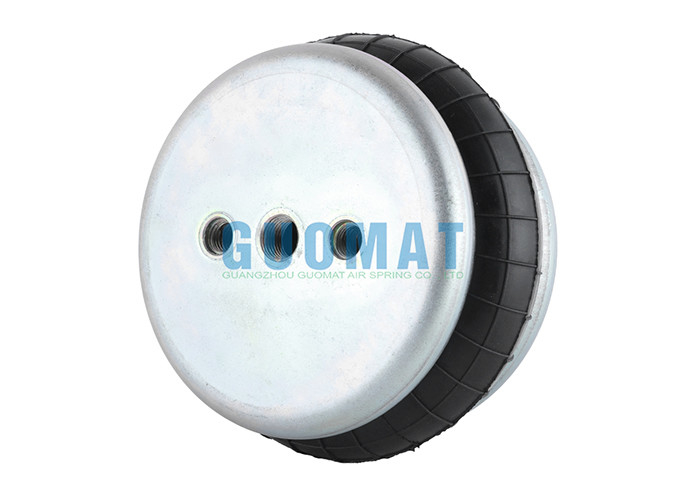

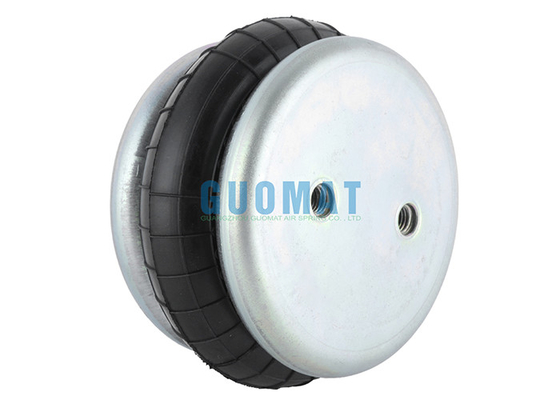

1B130070 Industrial Air Spring Real Picture
