| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B20010-1/4 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Warranty: | 12 Months | Material: | Steel+Rubber |
|---|---|---|---|
| Package: | Cartons | Use Range: | Industrial Machine |
| Weight: | 2.6KG | Design Height: | 110mm |
| Air Fitting: | G1/4 | Contitech: | FS 200-10 |
| High Light: | 110mm Industrial Air Spring,FS 200-10 Industrial Air Spring |
||
FS200-10 CI Continental Contitech Convolution Type Air Actuator 1/4NPT Gas Hole Industrial Air Spring
Product Description
GUOMAT 1B20010-1/4 single convoluted air spring. It can replace Contitech FS200-10 CI. GUOMAT products are of high quality and come with a 1-year warranty. Air springs are widely used in equipment vibration isolation in industrial machinery, such as in presses, air compressors, centrifuges, paper machines, vibrating screens, etc.
GUOMAT 1B20010-1/4 Technical Data
Top Plate Diameter: Ø160mm
Air Fitting Hole: G1/4
Blind Nut(Threaded Hole):2XM10X1.5
Center Distance Between Threaded Holes: 89mm
Distance Between Threaded Hole and Air Fitting Hole: 38mm
Bottom Bead Plate Diameter: Ø160mm
Blind Nut(Threaded Hole):2XM10X1.5
Center Distance Between Threaded Holes: 89mm
The Rubber Bellows Natural Outer Diameter: Ø220mm
Design Height: 110mm
Bumper(Bump Stop): Without
Girdle Hoop(Centre Ring): Without
OEM Number
Contitech 60030
Contitech FS 200-10
Contitech FS200-10
Contitech FS 200-10 CI
Contitech FS200-10 CI
Contitech FS 200-10 CI G1/4
Contitech FS200-10 CI G1/4
Contitech FS 200-10 CI G1/4 OS
Contitech FS200-10 CI G1/4 OS
Firestone W01M586375
Firestone W01 M58 6375
Firestone W01-M58-6375
Firestone WO1M586375
Firestone WO1 M58 6375
Firestone WO1-M58-6375
Packaging Details
Package: Brown Carton
Number of Air Spring: 2 Pieces
Net Weight: 5.2KG
Gross Weight: 5.6KG
Packing Size: 25*25*25(cm)
Mark: N/M, According to customer requirements
Packaging Requirements: packing in strict accordance with international transportation requirements
Industrial Air Springs Bring High Benefits to Production
The main purpose of industrial air springs is to buffer load impact in machinery and equipment, avoid collision damage to machine parts, eliminate noise, increase cycle speed, improve product quality, etc.
Air springs provide elastic cushioning and reduce the natural frequency of the system. The function of damping is to absorb the vibration energy instantly when the equipment is resonant or impacted by external force, reduce the vibration, and ensure the safety and smooth operation of the equipment.
FS200-10 Contitech Industrial Air Spring
|
Model Number |
FS200-10 CI |
|
|
Min.Design Height (in) |
2.01 |
|
|
Max.Design Height (in) |
9.84 |
|
|
Installation Space Required(in) |
10.43 |
|
|
Max.Recommended Stroke(in) |
2.91 |
|
|
Max.Stroke(in) |
3.50 |
|
|
Force at P=116psi |
Min.Height(lb) |
5350.45 |
|
Half Stroke(lb) |
3934.16 |
|
|
Max.Stroke(lb) |
2045.76 |
|
|
Connection Part Variant |
3 |
|
|
Standard Air Inlet |
3/4NPT |
|

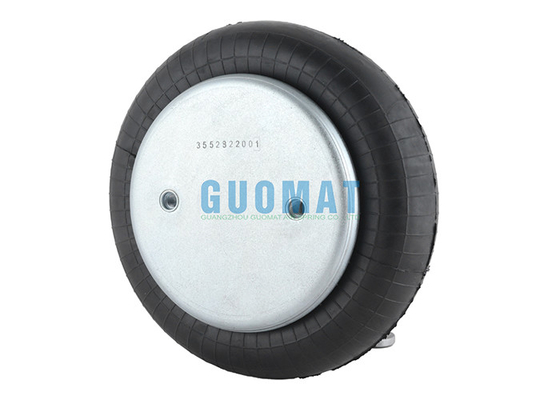

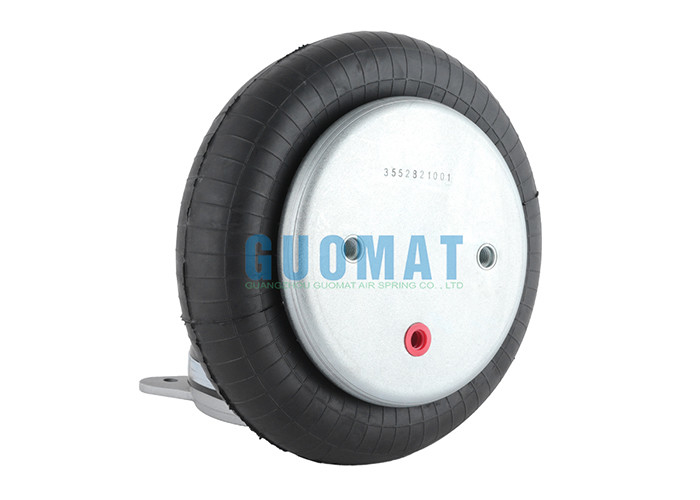

The Real Picture: GUOMAT 1B20010-1/4
