| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 3B20F-2P03 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $69.9-79.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Item Name: | Suspension Air Spring | Warranty: | 12 Months |
|---|---|---|---|
| Material: | Rubber + Steel | Type: | Triple Convoluted Air Spring |
| Air Fitting: | 1/2NPT | Package: | Standard Packing Or Customized |
| Natural Height: | 270mm | Other Name: | Air Help Spring |
| High Light: | Triple Convoluted Rubber Air Bellows,3B20F-2P03 Rubber Air Bellows,340mm Height Rubber Air Bellows |
||

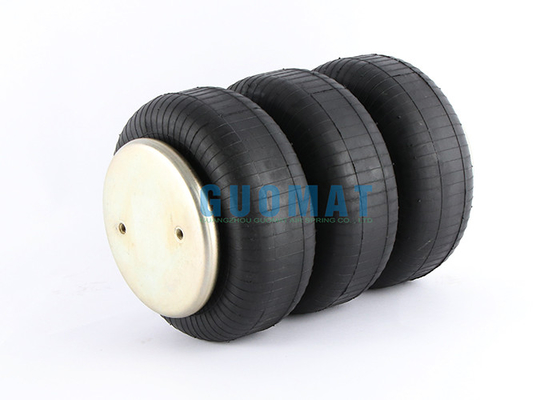

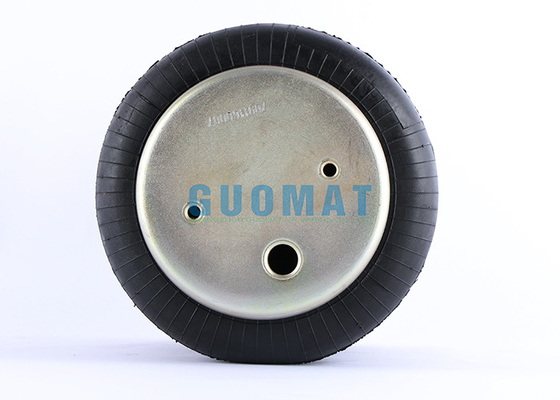

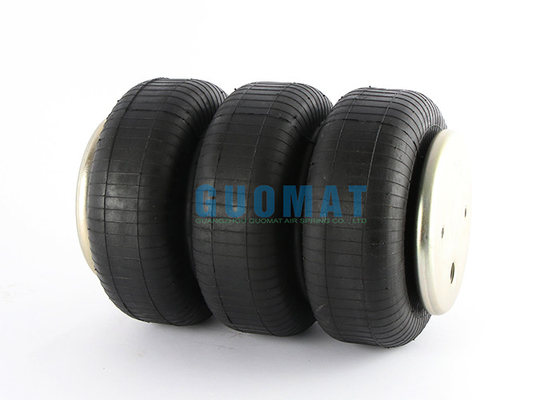

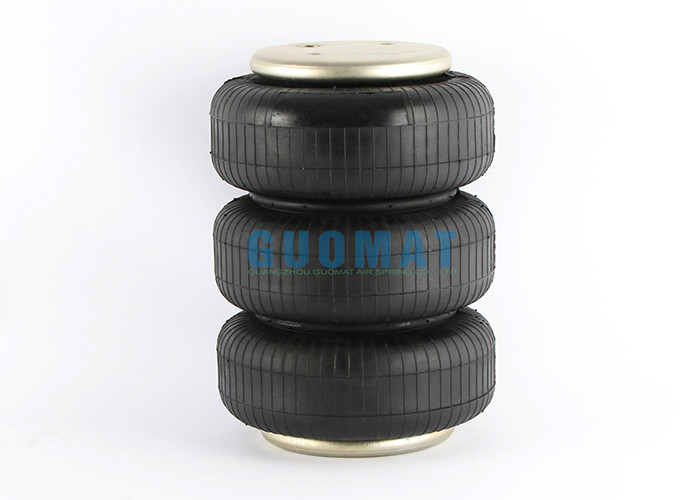

Standard Size 3B20F-2P03 Triple Convoluted Rubber Air Bellows Navigator 340mm Height Airbag
Product Description
|
Item |
Value |
|
Model NO. |
3B20F-2P03 |
|
Type |
Air Spring |
|
Warranty |
12 Months |
|
Color |
Black |
|
Place of Origin |
Guangzhou,China |
|
Certification |
ISO/TS16949:2009 |
|
Material |
Rubber+Steel |
|
Packing |
Neutral Packing |
|
MOQ |
1 Pcs |
|
Quality |
High-Quality |
|
Application |
For Industrial Machine |
|
Notice |
These air suspension bags are aftermarket ones.They will replace the original air spring bags. -Please double check the picture and drawing carefully before purchasing to ensure you will get the right struts. -Instruction isn’t included.Professional installation is recommended. -Contact us please for whatever we can help |
Technical Data : GUOMAT 3B20F-2P03
Top plate screw (nut) teeth: 2X3/8-16UNC
The screw center distance of the top cover plate: 89 mm
Screw (nut) teeth of the bottom cover plate: 2X3/8-16UNC
The screw center distance of the bottom cover plate: 89 mm
Air hole/air inlet: 1/2NPT
Screw center distance between air hole and nut: 44.5 mm
Top plate diameter: 160 mm
Diameter of the bottom cover: 160 mm
Maximum diameter of rubber bellows: 251 mm
Natural diameter of rubber bellows: 223 mm
Working stroke: minimum 200 mm to maximum 400 mm
Maximum height: 400 mm
Minimum height: 200mm
Stroke height: 200mm
Preventative Maintenance Air Springs
1. Check the outside diameter of the air spring. Check for irregular cracks
2. Check the air pipe. Verify that the air tube does not have any contact with the outer diameter of the air spring.
3. When the air spring is at the maximum outer diameter, check whether the clearance around it is sufficient.
4. Check whether there is foreign matter accumulation on the outer diameter of the piston
5. The correct suspension height should be maintained.
6. The height valve (height control valve) plays an important role in keeping the entire air spring system working as required. Clean, inspect or replace as necessary.
7. Check whether the shock absorber is installed correctly, and check whether there is oil leakage and whether the end connection parts are damaged.
8. Check all mounting hardware (nuts, screws) for tightness
How to Order ?
|
Step 1 |
please tell us what model and quantity you need |
|
Step 2 |
then we will make a PI for you to confirm the order details |
|
Step 3 |
when we confirmed everything ,you can arrange the payment |
|
Step 4 |
finally we deliver the goods within the stipulated time |
3B20F-2P03 Triple Convoluted Rubber Air Spring
