| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B4060 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Air Spring: | Air Vibration Industrial | Material: | Rubber+Steel |
|---|---|---|---|
| Warranty: | 12 Months Warranty | Operation: | Gas-Filled |
| Spring Type: | Bellows Type | Size: | OEM Size |
| Style: | Single Convoluted | Application: | Industrial Machinery And Equipment |
| High Light: | Contitech Rubber Air Actuator,SP1B04 Phoenix Rubber Air Actuator |
||
FS40-6 1/8 M8 Contitech Rubber Air Actuator SP1B04 Phoenix Industrial Air Balloon Reduce Vibration
Product Description
GUOMAT 1B4060 is a single convoluted air spring that is commonly used in industrial applications. It is also known as a Firestone FS 40-6 or a Phoenix SP1B04 air spring. This air spring is designed to provide support and cushioning in a variety of industrial applications, such as suspension systems for heavy-duty vehicles and machinery. It is made of high-quality rubber and has a minimum design height of 50mm, with a maximum stroke of 160mm.
OEM Number Information
Replace Contitech P/N: FS40-6 CI
Replace Contitech P/N: FS 40-6 CI
Replace Contitech P/N: FS40-6 1/8
Replace Contitech P/N: FS 40-6 1/8
Replace Contitech P/N: FS40-6 1/8 M8
Replace Contitech P/N: FS 40-6 1/8 M8
Replace Phoenix P/N: SP1B04
Replace Phoenix P/N: SP 1B04
Replace Weforma P/N: WBE100-E1
Replace Weforma P/N: WBE100 E1

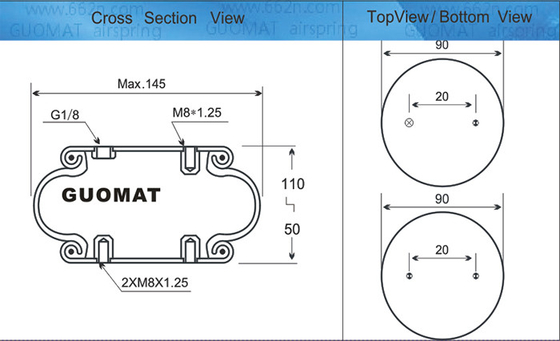

1B4060 GUOMAT Industial Air Spring Technical Data
Top Cover Plate Diameter: 90mm
Air Fitting: G1/8
Threaded Hole: M8X1.25
Distance Between Air Fitting and Threaded Hole: 20mm
Bottom Cover Plate Diameter: 90mm
Threaded Hole: 2XM8X1.25
Center Distance Between Threaded Holes: 20mm
Maximum Outer Diameter: 145mm
Maximum Height: 110mm
Minimum Height: 50mm
Pneumatic Application – Static Characteristic Values
Force F(kN)
|
Pressure P |
Bar |
3 |
4 |
5 |
6 |
7 |
8 |
Vol.V(I) |
|
Height H (mm) |
100 |
1.07 |
1.52 |
1.97 |
2.43 |
2.9 |
3.39 |
0.55 |
|
90 |
1.5 |
2.06 |
2.62 |
3.19 |
3.76 |
4.36 |
0.51 |
|
|
80 |
1.88 |
2.54 |
3.19 |
3.85 |
4.52 |
5.21 |
0.45 |
|
|
70 |
2.2 |
2.94 |
3.67 |
4.41 |
5.16 |
5.92 |
0.38 |
|
|
60 |
2.45 |
3.25 |
4.04 |
4.84 |
5.66 |
6.49 |
0.3 |
GUOMAT Air Spring Features
Contitech Assembly Number to GUOMAT
|
CONTITECH NO. |
GUOMAT NO. |
CONTITECH NO. |
GUOMAT NO. |
|
FS120-9 |
1B1209 |
FS200-10 |
1B20010 |
|
FS70-7 |
1B7070 |
FS330-11 |
1B33011 |
|
FS330-14 |
1B33014 |
FS40-6 |
1B4060 |
|
FS120-10 |
1B12010 |
FS50-5 |
1B5050 |
|
FS100-10 |
1B10010 |
FS120-12 |
1B12012 |
|
FS530-11 |
1B53011 |
FS530-14 |
1B53014 |

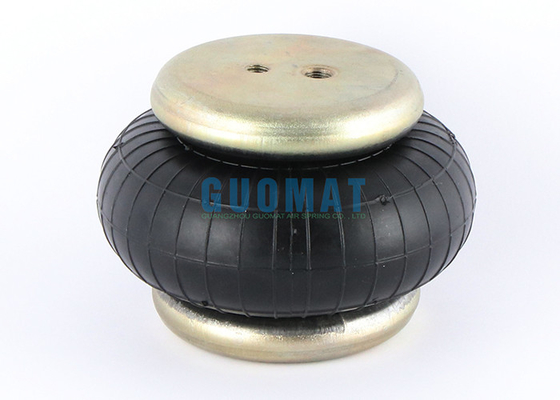

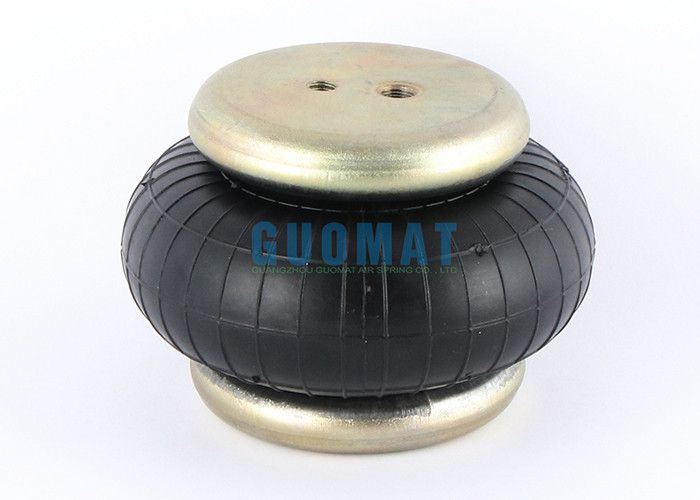

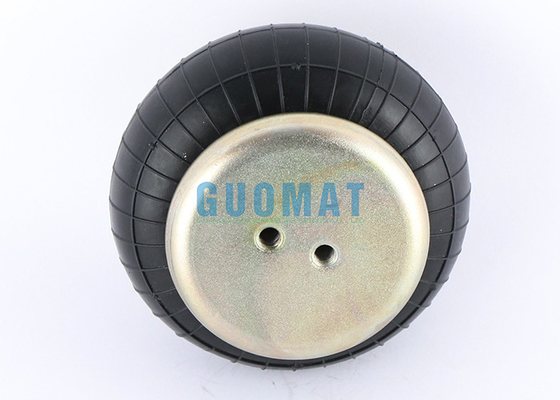

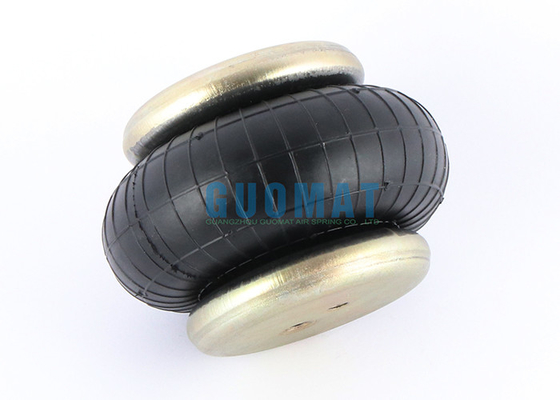

The Real Pictures: GUOMAT 1B4060 Single Convoluted Air Actuator
