| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 3B7996 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $69.9-79.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Item Name: | Industrial Air Spring | Warranty: | 12 Months |
|---|---|---|---|
| Material: | Rubber + Steel | Package: | Standard Packing Or Customized |
| Firestone Style: | 38 | Number Of Convolution: | 3 |
| Stroke: | 117mm-460mm | Max.OD: | 330mm |
| High Light: | Firestone Convoluted Air Spring Bag,W01-358-7996 Air Spring Bag,3B12-335 Goodyear Air Spring Bag |
||
Good Quality Replace W01-358-7996 Firestone Convoluted Style Air Spring Bag 3B12-335 Goodyear
Product Description
|
Item |
Industrial Air Spring |
Brand |
GUOMAT |
|
Material |
Rubber,Steel |
Warranty |
12 Months |
|
MOQ |
1 pc |
Type |
Triple Convoluted Air Shock |
Technical Data : GUOMAT 3B7996
Top plate bolt/stud: M12X1.75
The bolts and combo stud distance of the top cover plate: 157.5 mm
Threaded hole of the bottom cover plate: 2X3/8-16UNC
The threaded hole center distance of the bottom cover plate: 157.5 mm
Combo stud: 1/4NPTF,M18X1.5
Top plate diameter: 231mm
Diameter of the bottom cover: 231 mm
Maximum diameter of rubber bellows: 330 mm
Working stroke: minimum 117 mm to maximum 460 mm
Maximum height: 460 mm
Minimum height: 117mm
Compression height: 343mm
Technical Data : Firestone W01-358-7996
Top cover plate diameter: 9.00
Bottom cover plate diameter: 9.00
Combination Stud/Air Inlet Stud Outside Thread is 3/4-16
Bolt or Stud: 1/2-13
Threaded Hole 3/8-16 Blind Nut on Bead Plates: 1/2-13 Pistons
The distance of Combination Stud and Bolt: 6.20
The distance of threaded Hole: 6.20
Rubber bellow diameter: 11.70
Min.height: 4.55
Refer Numbers
|
Firestone |
W01-358-7996 / W01 358 7996 / W013587996 |
|
Firestone |
WO1-358-7996 / WO1 358 7996 / WO13587996 |
|
Firestone |
38 |
|
Contitech |
FT330-29 / FT 330-29 / FT330-29 520 / FT 330-29 520 |
|
Goodyear |
3B12-335 / 3B 12-335 / 3B12 335 |
|
Goodyear |
578933100 / 578 93 3 100 / 578-93-3-100 |
|
Triangle |
6334 / 4520 |
|
Granning/Tuthill |
8221 |
Air Springs of the Same Firestone Style Model
|
Style |
Firestone NO. |
Replace |
|
38 |
W01-358-7990 |
Watson&Chalin AS-0048 |
|
38 |
W01-358-7994 |
Watson&Chalin AS-0019-1F |
|
38 |
W01-358-7995 |
Watson&Chalin AS-0048-1F |
|
38 |
W01-358-7998 |
Hendrickson Aux.001560 |
|
38 |
W01-358-8006 |
- |
|
38 |
W01-358-8008 |
Watson&Chalin AS-0019 |
|
38 |
W01-358-8010 |
Ridewell 1003588010CC |
|
38 |
W01-358-8014 |
Ridewell 1003588014C |
|
38 |
W01-358-8016 |
Ridewell 1003588016C |
|
38 |
W01-358-8018 |
- |
|
38 |
W01-358-8025 |
- |
|
38 |
W01-358-8027 |
Suspensions Inc. 200117 |
|
38 |
W01-358-8030 |
Ridewell 1003588030C |
|
38 |
W01-358-8032 |
Hendrickson Trailer S12405 |
|
38 |
W01-358-8033 |
Hendrickson Trailer S14487 |

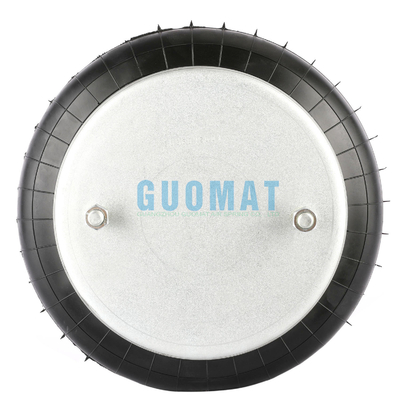

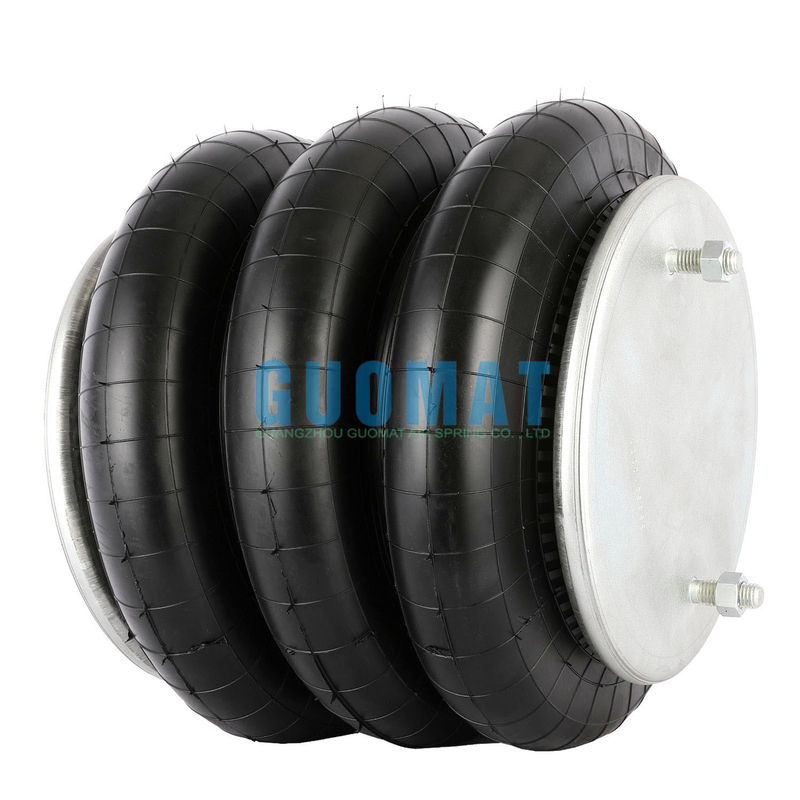

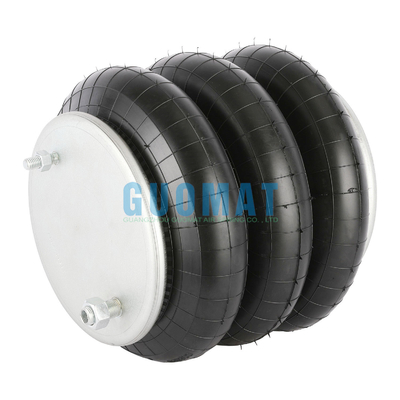

The Real Pictures
