| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B0335 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Air Spring: | Suspension Air Spring | Warranty: | 12 Months |
|---|---|---|---|
| Material: | Rubber + Steel | MOQ: | 10 Pieces |
| Air Inlet: | Offset Air Inlet | Firestone: | A01-760-0335 |
| Weight: | 2.1KG | Application: | For Truck/Trailer/Industrial Machine |
| High Light: | W21-760-0335 Rubber Air Spring,203mm Diameter Rubber Air Spring |
||
A01-760-0335 Firestone Suspension Air Shock 203mm Max.Outer Diameter W21-760-0335 Rubber Air Spring
Product Description
A01-760-0335 is a specific model number of Firestone air springs, also known as bladder or air assist springs. It is designed to be added to a vehicle's existing suspension system to improve load capacity, stability, ride quality and braking. GUOMAT 2B0335 can replace Firestone A01-760-0335, the warranty period is one year, the quality is high, and it can be replaced for you to solve the suspension problem.
GUOMAT 2B0335 OEM Numbers
GUOMAT 2B0335
Replace Firestone 224
Replace Firestone A017600335
Replace Firestone A01-760-0335
Replace Firestone A01 760 0335
Replace Firestone AO17600335
Replace Firestone AO1-760-0335
Replace Firestone AO1 760 0335
Replace Firestone W21-760-0335
Replace Firestone W21 760 0335
Replace Firestone W217600335
Replace Contitech FD 200-19
Replace Contitech FD200-19
Replace Contitech FD200-19 510
Replace Contitech FD 200-19 510
Replace Contitech FD200-19510
Technical Parameters
Top plate diameter: 132mm
Top plate bolt/stud: 2x3/8-16UNC
Air Fitting: 3/8NPT
Center distance between top plate bolt/stud: 70mm
Distance between top plate bolt/stud and air hole: 33mm
Bottom plate diameter: 132mm
Bottom threaded hole: 3/8-16UNC
Distance between bottom plate threaded hole: 70mm
The rubber bellows max outer diameter: 203mm
Max. height: 230mm
Min.height: 75mm
Compression height: 155mm
Net weight: 2.1kg
Gross weight: 9.07kg
Packing size: 38*38*22(cm)
What is Their Role in American Pickup Trucks
Air springs, also known as air bags or air suspension, are a type of load support system that can be installed on American pickup trucks. These systems use inflatable bags that are mounted between the truck's frame and suspension to provide additional support for heavy loads and improve overall ride quality.
Air springs can help to level out a truck when it is loaded with cargo or pulling a heavy trailer, providing a more stable and comfortable ride. They are especially useful for trucks that are frequently used for towing or hauling, as they can help prevent bottoming out and improve handling and control while on the road.
Our Advantage
|
1 |
Wide variety of shock absorption products |
|
2 |
Many models are in stock, fast delivery |
|
3 |
Accept OEM orders |
|
4 |
Affordable, safe and efficient logistics services |
|
5 |
Flexible payment methods |
|
6 |
Warranty guaranteed |
| 7 | Excellent pre-sales and after-sales service |

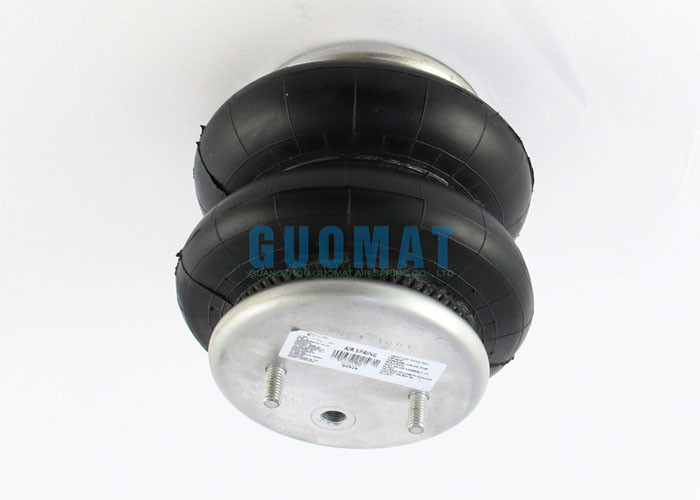

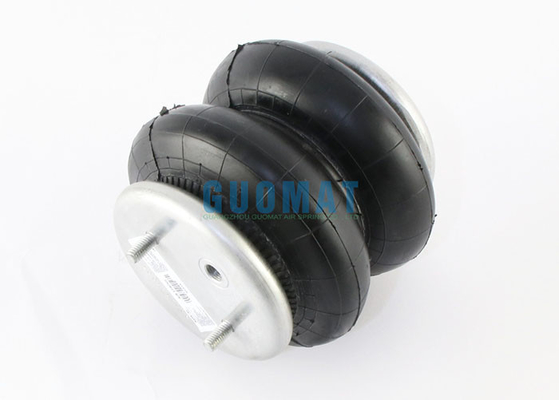

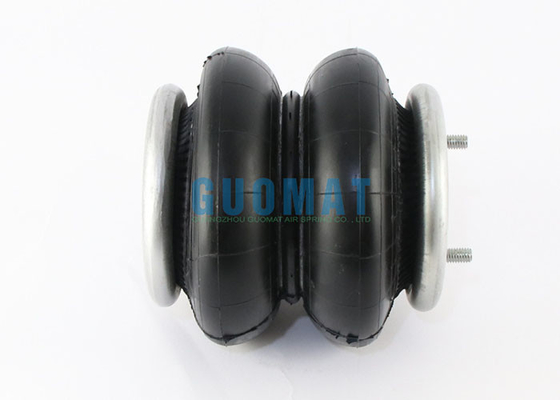

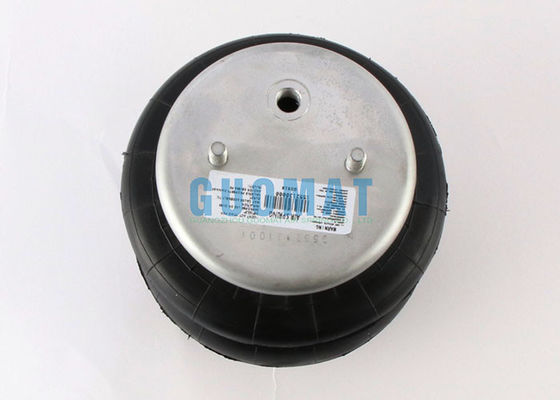

Physical Picture Display: GUOMAT 2B0335 Double Convoluted Suspension Air Spring
