| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 6X1 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-79.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Material: | Aluminum, Rubber | Warranty: | 1 Year Warranty |
|---|---|---|---|
| Quality: | 100 % Tested | Application: | For Industrial Machine |
| Keywords: | Air Spring | Sample: | Avialable |
| Other Name: | Industrial Air Boot | Feature: | In-situ Installation |
| High Light: | Single Acting Industrial Air Spring,SP1645 Industrial Air Spring,SP2913 Industrial Air Spring |
||
6" x 1 Dunlop Universal Suspension Air Bellow SP1645/SP2913 Single Acting Industrial Air Springs
Product Description
6x1 is a single-acting air bellow with a diameter of 6 inches and a stroke of 55mm. It is designed for short-stroke, high-force applications and provides high vibration isolation. The air bellow operates frictionlessly and requires no maintenance or lubrication.
Product Name: Air Bags
Material: Rubber Bellow+Aluminium Alloy
Warranty: 1 Year
MOQ: 1pc
Working Tempreature: -40°C bis +70°C
Failure Testing: ≥3 Millions
Type:Convoluted Type Air Spring
Application: Industrial Machine/Truck Air Suspension
GUOMAT 6X1 Replaces These Air Bags
Replaces Dunlop FR: SP1645(Composite)
Replaces Dunlop FR: SP2913(Aluminimum)
Replaces Dunlop UK(Pneuride): A313300101
Replaces Dunlop UK(Pneuride): A 31330 01 01
Replaces Norgren: PM/31061
Replaces Norgren: PM 31061
Replaces Norgren: PM31061
Replaces Norgren NominalØ(inch)xconvolutions: 6''x1
Replaces Norgren NominalØ(inch)xconvolutions: 6'' x1
Replaces Norgren NominalØ(inch)xconvolutions: 6x1
Replaces Firestone: W01R584078
Replaces Firestone: W01 R58 4078
Replaces Firestone: W01-R58-4078
Replaces Firestone: WO1R584078
Replaces Firestone: WO1 R58 4078
Replaces Firestone: WO1-R58-4078
Replaces Firestone Style: 6''x1
Replaces Firestone Style: 6'' x1
Replaces Firestone Style: 6x1
Replaces Contitech Bellow: FS76-7
Replaces Contitech Bellow: FS 76-7
Replaces Contitech Bellow: FS767
Replaces Contitech: FS76-07 DI G1/2 CR
Replaces Contitech: FS 76-07 DI G1/2 CR
Replaces Contitech: FS76-7 DI CR
Replaces Contitech: FS76-7DICR
Replaces Contitech: FS 76-7DICR
Replaces Goodyear: 1B6-2052
Replaces Goodyear: 1B6 2052
Replaces Goodyear: 1B62052
Replaces Goodyear Bellow: 578-91-3-2050
Replaces Goodyear Bellow: 578 91 3 2050
Replaces Goodyear Bellow: 5789132050
Replaces YS-AIR: YS-160-1VS
Replaces YS-AIR: YS 160 1VS
Replaces YS-AIR: YS1601VS

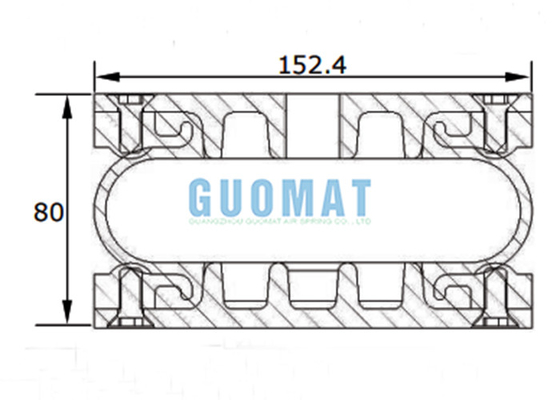

Technical Specifications: 6''X1 Dunlop Rubber Air Spring
|
Maximum diameter |
162mm |
|
Air inlet |
1/2''BSP |
|
Space required |
180mm |
|
Minimum height |
50mm |
|
Maximum height |
110mm |
|
Total stroke |
60mm |
|
Static height |
80mm |
|
Effective area at static height |
135cm2 |
|
Bellows weight |
1.69kg |
|
Working pressure |
8 bar |
|
Burst pressure |
40bar |
|
Dimension |
Frequency(HZ) at static height |
Static height(mm) |
Load in kg at 4bar at static height |
|
41/2x1 |
4.80 |
65 |
265 |
|
41/2x2 |
2.80 |
100 |
265 |
|
41/2x3 |
2.26 |
145 |
265 |
|
6x1 |
4.25 |
80 |
490 |
|
6x2 |
2.28 |
120 |
522 |
|
6x3 |
1.75 |
180 |
580 |
|
8x1 |
2.98 |
90 |
816 |
|
8x2 |
1.99 |
150 |
897 |
|
91/2x1 |
1.95 |
160 |
1088 |
|
10x1 |
2.84 |
95 |
1428 |
|
10x2 |
1.88 |
160 |
1448 |
|
10x3 |
1.65 |
235 |
1387 |
|
12x1 |
2.81 |
95 |
2080 |
|
12x2 |
1.66 |
160 |
2080 |
|
12x3 |
1.54 |
222 |
2040 |
|
141/2x1 |
2.54 |
105 |
3060 |
|
141/2x2 |
1.71 |
180 |
3100 |
|
141/2x3 |
1.44 |
280 |
3264 |
|
16x2 |
1.45 |
180 |
3672 |
|
16x3 |
1.21 |
280 |
3451 |

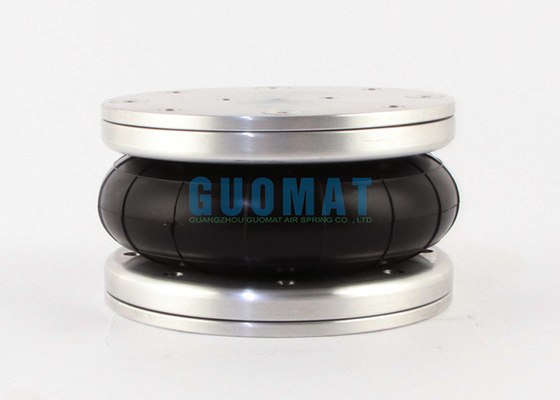

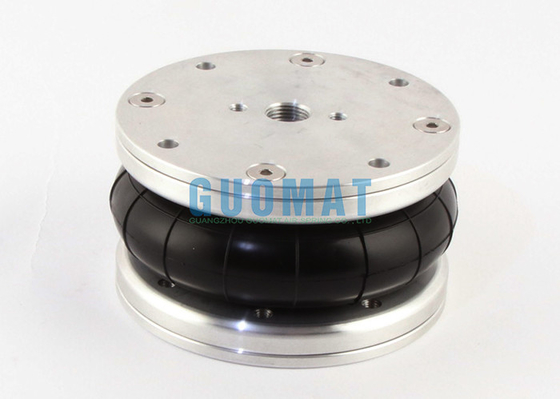

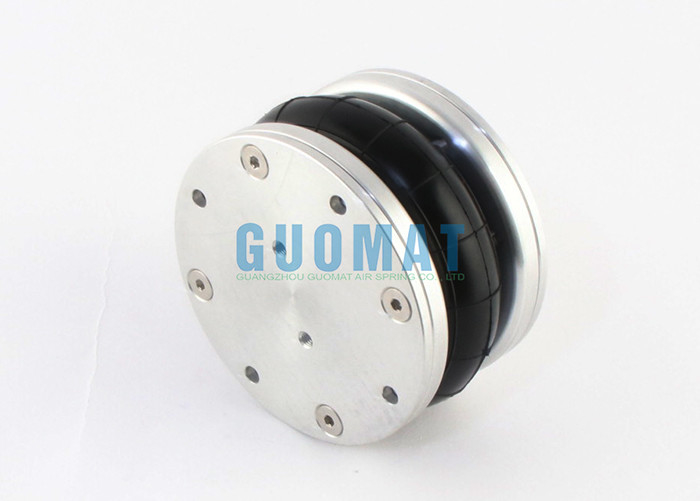

Pictures Show: 6x1 Single Convoluted Air Spring
