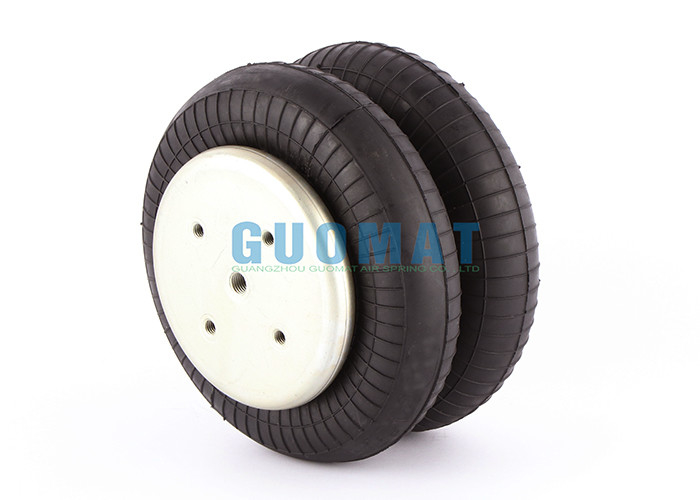

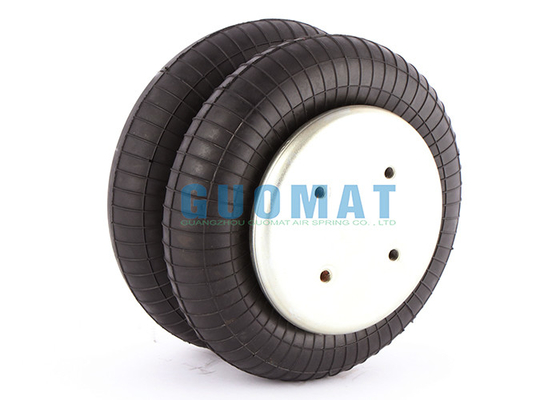

FD120-17 ContiTech Double Bellow Air Spring G1/4 Convoluted Type Air Actuator Replacement

Name: FD120-17 ContiTech Double Bellow Air Spring G1/4 Convoluted Type Air Actuator Replacement
Brand: GUOMAT
SKU: 2B12017-1/4
Price: 69.9 USD
Availability: InStock
Rating: 4.7 (168 reviews)

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B12017-1/4

Payment & Shipping Terms:

Minimum Order Quantity:	pcs
Price:	$69.9-79.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Warranty:	12 Months	Material:	Rubber Bellow And Aluminum Cover
Function:	Reduce Shock	Package:	Cartons
Contitech:	FD 120-17	Size:	OEM/Standard Size
Type:	Convoluted Air Spring	Application:	Industrial Equipment
High Light:	FD120-17 Double Bellow Air Spring , Convoluted Type Double Bellow Air Spring

FD120-17 ContiTech Double Bellow Air Spring G1/4 Convoluted Type Air Actuator Replacement

Product Description

Item	Industrial Rubber Air Spring
Brand	GUOMAT
Material	Natural Rubber
Warranty	12 Months
MOQ	1 pc
Package	Carton
Payment	T/T,L/C,Western Union,PayPal
Shipment	by air,by sea,by express

Technical Data: FD120-17 Contitech Air Spring

The top cover diameter is 135mm
Threaded hole specifications: 2 M8X1.25
Air hole specification: G1/4
The center distance between the two threaded holes of the top cover is 70mm
Bottom cover diameter is 135mm
Bottom threaded hole specifications: 2 M8X1.25
The center distance between the two threaded holes of the bottom cover is 70mm
Maximum outer diameter: 215mm
Design height: 167mm
Stroke: 75mm-230mm
Compressed height: 155mm

OEM Part Number/Cross Reference Number

Firestone Part Number W01-M58-6353

Firestone Part Number W01 M58 6353

Firestone Part Number W01M586353

Firestone Part Number WO1-M58-6353

Firestone Part Number WO1 M58 6353

Firestone Part Number WO1M586353

ContiTech Part Number FD120-17

ContiTech Part Number FD 120-17

ContiTech Part Number FD120-17 CI

ContiTech Part Number FD 120-17 CI

ContiTech Part Number FD120-17 CI G1/4

ContiTech Part Number FD 120-17 CI G1/4

ContiTech Part Number FD120-17,FD 120-17,FD12017

ContiTech Order Number 61361

Airkraft Part Number 113054

Airkraft Part Number 2B-181

Airkraft Part Number 2B 181

Airkraft Part Number 2B181

Weforma Part Number WBZ300-E2

Weforma Part Number WBZ 300-E2

Bosch Part Number 822419062

Rubber Air Spring Working Conditions

All surfaces, including the air spring and mounting area, should be free of oil, petroleum, and solvents.
The hydraulic and pneumatic lines of the air supply system should be leak-proof
Air pressure must not exceed 7 bar/101 psi
Ambient temperature should be between -40℃+70℃
There should be sufficient clearance around the air spring to prevent any contact.
All bolts should be tightened to specified torque specifications.
Vehicles should be loaded to factory specifications and the load should be properly secured.
Air springs should be kept clean. Clean with water and soap.

Rubber Air Spring Assembly

Top Plate	Connects the Air Spring below to the vehicle frame.
Flexnenber (Rubber Bellow)	The bellow is a vulcanized rubber construction, consisting of a rubber internal layer, a layer of reinforced material, and an external rubber layer. This construction gives the bellow strength and durability.
Girdle Hoop	Stabilizes the air spring.
Bottom Plate	Connects the air spring and axle
